Inference with HunyuanWorld-Voyager on AMD Instinct GPUs

Inference with HunyuanWorld-Voyager on AMD Instinct GPUs#

November 21, 2025 by Johanna Yang, Kristoffer Peyron.

4 min read. | 915 total words.

Applications & models

AI/ML, GenAI, Diffusion Model

AI

Single-image 3D world generation faces several technical challenges: occluded regions are often hallucinated, depth consistency varies across frames, long camera trajectories introduce drift, and multi-stage pipelines (such as separate depth estimation and SfM/MVS) add latency while compounding errors. HunyuanWorld‑Voyager addresses these limitations through a world-consistent video diffusion model. Given a single image and an optional camera trajectory, it jointly generates RGB frames and per-frame aligned depth maps that follow the specified camera motion. A lightweight world cache enables geometric reprojection for improved occlusion handling and supports autoregressive extension for long or effectively unbounded explorations. The aligned depth outputs allow direct export to point clouds, Gaussian splats, or meshes without requiring a separate reconstruction stage.

This blog demonstrates how to achieve high-performance 3D inference on AMD Instinct MI300X with HunyuanWorld‑Voyager, complementing our recent work on Game Video Generation with Hunyuan-GameCraft. See the Summary section for links to additional related video generation posts.

Technical Highlights#

png

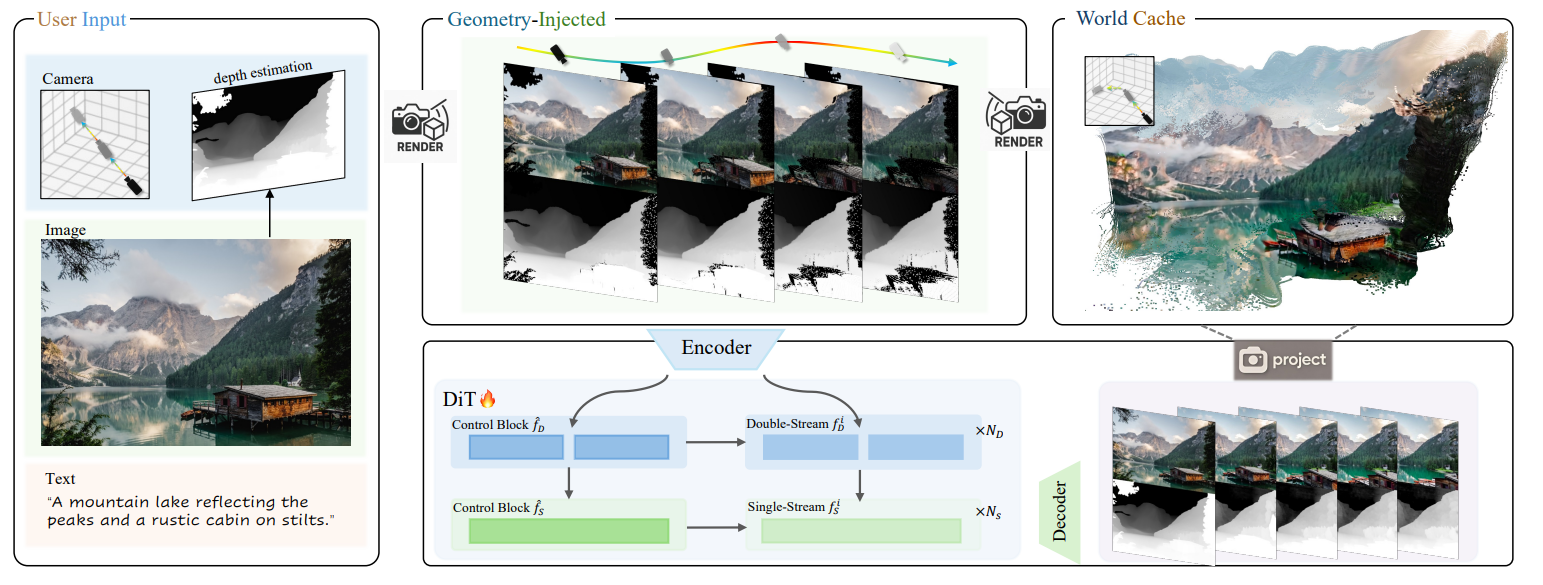

In the figure above you can see an overview of HunyuanWorld‑Voyager (Source: HunyuanWorld-Voyager technical report). The block diagram showcases the key technical components of the framework. To reduce perceptual hallucination under complex visual conditions, geometry-injected frame conditioning was introduced, which combines RGB and depth projections for more reliable occlusion reasoning. Building on this, a depth-fused video diffusion model ensures spatial consistency, while context-based control blocks improve viewpoint stability and fine-grained trajectory control.

For 3D world reconstruction and long-range exploration, world caching with point culling maintains scene continuity with minimal redundancy, and smooth video sampling mitigates seams between autoregressive segments. Finally, a scalable video data engine automatically estimates camera poses and metric depth to supply high-quality training data for all components above.

For more technical details, please refer to the HunyuanWorld-Voyager technical report.

Implementation#

In the following sections, you’ll find step-by-step instructions for running the HunyuanWorld-Voyager model, covering environment setup, practical use cases, and both single- and multi-GPU inference on simple benchmarks with AMD Instinct GPUs.

1. Launch the Docker Container#

We use the ROCm 7.0 container (rocm/7.0:rocm7.0_pytorch_training_instinct_20250915) with PyTorch, required Python packages, and FlashAttention 2 pre‑installed; supported platforms are listed here: list of supported OSs and AMD hardware It is recommended to use ≥80 GB VRAM for single‑GPU inference. We run on an AMD Instinct MI300X (192 GB) and scale multi‑GPU tests on 2, 4, and 8 MI300X cards.

The selection of shm-size can be based on number of GPUs, model size, or system RAM. One simple way to calculate it is --shm-size = (Number of GPUs × 8GB) to (Number of GPUs × 16GB). We used 32g for 4-GPU inference on Voyager model.

Option 1: AMD Container Toolkit (Recommended)#

If you have AMD GPUs and the AMD Container Toolkit installed on your system, we recommend using it for better GPU management. Use specific GPUs by ID (example with 4 GPUs):

docker run -it --rm --runtime=amd \
  -e AMD_VISIBLE_DEVICES=0,1,2,3 \
  --shm-size=32g \
  --name hunyuan-voyager \
  -v $(pwd):/workspace -w /workspace \
  rocm/7.0:rocm7.0_pytorch_training_instinct_20250915

Note for HPC/Job Scheduler Users: Use specific GPU IDs that match your job allocation. AMD_VISIBLE_DEVICES=all may not respect job scheduler GPU allocation and could use all GPUs on the node.

Option 2: Traditional Device Mapping#

If the AMD Container Toolkit is not installed

docker run -it --rm \
  --device=/dev/kfd --device=/dev/dri \
  --group-add video \
  --shm-size=32g \
  --name hunyuan-voyager \
  -v $(pwd):/workspace -w /workspace \
  rocm/7.0:rocm7.0_pytorch_training_instinct_20250915

For Vultr and some cloud providers, manual render device mapping may be required.

2. Install Dependencies and Setup HunyuanWorld-Voyager Repository#

Begin by cloning our updated hunyuanWorld-voyager repository, which includes AMD GPU set-ups and pre-processing configuration improvements. Additional AMD-specific setup instructions are available in platform/AMD_GPU/README.md:

git clone https://github.com/silogen/HunyuanWorld-Voyager
cd HunyuanWorld-Voyager
# Use the AMD-adapted branch
git checkout feat/rocm-platform

During setup you may see pip resolver warnings. These optional extras are not used in our inference path and can be safely ignored.

python -m pip install -r requirements.txt
# transformers 4.55.0 is pre-installed in the docker image, but the model requires 4.39.3
python -m pip install transformers==4.39.3

The HunyuanWorld-Voyager framework includes utilities for processing custom input images and camera trajectories. To create your own input conditions, you also need to install the following dependencies:

pip install --no-deps git+https://github.com/microsoft/MoGe.git
pip install scipy==1.11.4
pip install git+https://github.com/EasternJournalist/utils3d.git@a480806f58337da70d3c0df970b1df91ca152e61

Additional Requirements for Multi-GPU Inference with torchrun#

For multi-GPU inference, install xDiT (xfuser) which provides distributed inference capabilities. Since xfuser expects CUDA version information that’s unavailable in ROCm environments, a compatibility fix is required to prevent runtime errors. This issue has been fixed in recent commits but not yet released. Once these changes are released, the manual compatibility fixes below may no longer be necessary.

# Install xDiT for parallel inference
python -m pip install xfuser==0.4.2

# Fix CUDA version parsing for ROCm compatibility
sed -i 's/"CUDA_VERSION": lambda: version.parse(torch.version.cuda),/"CUDA_VERSION": lambda: version.parse(torch.version.cuda or "0.0.0"),/' /opt/venv/lib/python3.10/site-packages/xfuser/envs.py

# Update ring_flashinfer_attn.py, it has been fixed in recent commits but not released
pip uninstall yunchang -y
pip install git+https://github.com/feifeibear/long-context-attention.git@7a52abd669efb35e550680a239e1745b620b2bae

3. Model Download and Environment Variable Setup#

huggingface-cli download tencent/HunyuanWorld-Voyager --local-dir ./ckpts
# Default model path is hardcoded to /root, modify the model path
export MODEL_BASE="./ckpts"

4. Download Example Images (Optional)#

Download the example images used in the following use cases:

mkdir -p examples/image

# Download village scene image
curl -L -o examples/image/village.jpg https://raw.githubusercontent.com/ROCm/rocm-blogs/release/blogs/artificial-intelligence/hunyuanworld-voyager-inference/images/village.jpg

# Download elk scene image
curl -L -o examples/image/elk.jpg https://raw.githubusercontent.com/ROCm/rocm-blogs/release/blogs/artificial-intelligence/hunyuanworld-voyager-inference/images/elk.jpg

Use Cases#

Custom Input Condition#

Before running inference, prepare your input images. The model supports custom input images and camera motions through data_engine/create_input.py. By default, input images are resized to a consistent resolution (1280, 720). You can modify this resolution in the script if your input image requires different dimensions.

The model supports the following camera path types:

forward
backward
left
right
turn_left
turn_right

Use Case 1: Village Scene#

This example demonstrates generating a 3D world video from a single village scene image (see below), showcasing forward camera motion through a countryside landscape. The default configuration generates 49 frames. You can modify the frame count using --num-frames (e.g., 121 for a 5-second video).

VILLAGE

python3 data_engine/create_input.py \
  --image_path examples/image/village.jpg \
  --render_output_dir examples/village_forward \
  --type forward

Single-GPU Inference#

Using 1 AMD MI300X GPU with 12 CPU cores and 192GB VRAM:

PROMPT="Panoramic Nordic village scene, path, cottages, trees, distant hills, oil paint style, highly detailed."
python3 sample_image2video.py \
    --model HYVideo-T/2 \
    --input-path "examples/village_forward" \
    --prompt "$PROMPT" \
    --i2v-stability \
    --flow-reverse \
    --infer-steps 50 \
    --flow-shift 7.0 \
    --seed 0 \
    --embedded-cfg-scale 6.0 \
    --save-path ./results

Parallel Inference on Multiple GPUs by xDiT#

The --ulysses-degree parameter specifies the number of GPUs used for all-to-all (Ulysses) communication, while --ring-degree sets the number of GPUs for peer-to-peer (Ring-Attention) communication. The total GPU count equals the product of --ulysses-degree and --ring-degree. Optimal settings may vary based on your hardware configuration, so experimentation with these parameters is recommended.

# Using 4 AMD MI300X GPUs
ALLOW_RESIZE_FOR_SP=1 torchrun --nproc_per_node=4 \
    sample_image2video.py \
    --model HYVideo-T/2 \
    --input-path "examples/village_forward" \
    --prompt "$PROMPT" \
    --i2v-stability \
    --flow-reverse \
    --infer-steps 50 \
    --flow-shift 7 \
    --seed 0 \
    --embedded-cfg-scale 6.0 \
    --save-path ./results \
    --ulysses-degree 4 \
    --ring-degree 1

The video below shows all six camera paths (49 frames each) at real-time speed, followed by slow-motion replay (0.5x) for detailed observation. The model maintains strong spatial consistency across different camera motions—forward and backward movements show smooth transitions with minimal artifacts, while left/right translations preserve scene geometry well. Turning motions (turn_left/turn_right) occasionally produce slight distortions due to challenging viewpoint transformations, which can be mitigated by adjusting camera path parameters in data_engine/create_input.py.

The grayscale depth estimation (lower panel) demonstrates the model’s 3D scene understanding. Notice how depth values accurately capture foreground elements (cottages and trees) versus distant hills, providing reliable geometric cues for multi-view consistency and occlusion handling.

Use Case 2: Elk in the Room#

This example demonstrates the model’s capability with indoor scenes and animal subjects.

ELK

# Camera path will move backward, 49 frames
python3 data_engine/create_input.py \
  --image_path examples/image/elk.jpg \
  --render_output_dir examples/elk_backward \
  --type backward

PROMPT="An elk slowly turning its head, slight hoof movement, softly lit room, natural fur texture, cinematic realism, stable framing."

ALLOW_RESIZE_FOR_SP=1 torchrun --nproc_per_node=4 \
    sample_image2video.py \
    --model HYVideo-T/2 \
    --input-path "examples/elk_backward" \
    --prompt "$PROMPT" \
    --i2v-stability \
    --flow-reverse \
    --infer-steps 50 \
    --flow-shift 7 \
    --seed 0 \
    --embedded-cfg-scale 6.0 \
    --save-path ./results \
    --ulysses-degree 4 \
    --ring-degree 1

The video shows all six camera trajectories (49 frames each) at real-time speed, then in slow motion (0.5x). The model maintains consistent depth and realistic appearance across different camera motions, though turning movements may show occasional geometric distortions. Note the vivid head movement of the elk during forward camera motion, showcasing the model’s ability to preserve subject animation while maintaining spatial consistency.

Performance Results#

The table below shows baseline end-to-end generation times (1040×768 resolution, 49 frames, 50 diffusion steps) on MI300X GPUs (192 GB VRAM per GPU, 12 host CPU cores each). Results were measured after an initial warm-up run to exclude model loading and compilation overhead. Clear scaling benefits are demonstrated from 1 to 8 GPUs. These benchmarks use default settings without advanced overlap, precision, or cache optimizations, indicating additional performance potential beyond the scope of this blog.

Number of GPUs	1	2	4	8
Generation Time (s)	680	479	304	236

Summary#

This blog demonstrates HunyuanWorld-Voyager inference on AMD Instinct GPUs, showcasing the framework’s ability to generate consistent 3D world videos from single images with controllable camera trajectories. The results highlight AMD hardware’s strong performance for next-generation video generation workloads, with clear scaling benefits from single-GPU to multi-GPU configurations.

As video generation technology advances, AMD continues to optimize emerging frameworks to provide developers with high-performance, accessible solutions. For additional resources on video generation with AMD GPUs, explore our related technical publications on:

Acknowledgement#

We acknowledge the authors of the HunyuanWorld-Voyager: Technical Report, whose contributions enabled the implementation demonstrated in this blog.
