Fine-tuning Robotics Vision Language Action Models with AMD ROCm and LeRobot#
This blog showcases training and deploying robotics policy models on AMD Instinct™ GPUs using ROCm with Hugging Face’s LeRobot framework. Recent advancements in Vision Language Action Models (VLAs) represent a breakthrough in robotics AI, combining computer vision, language understanding, and robotic control into unified architectures that can process visual observations, understand task descriptions, and generate precise motor commands.
LeRobot is Hugging Face’s open-source robotics platform that provides state-of-the-art pre-trained models, datasets, and training pipelines for robotics research and development. With a rapidly growing community of developers, LeRobot democratizes access to advanced robotics AI by offering standardized tools for policy learning, making it easier to train robots on complex manipulation tasks.
Here, we provide a walkthrough of training a 3-billion-parameter Pi0 policy model using AMD’s ROCm platform, then deploying it for real-time robotic inference using open-source 3D printed Koch robot arms shown in Figure 1. We demonstrate how AMD’s hardware ecosystem enables seamless scaling from data center training on AMD Instinct™ GPUs to edge deployment on Ryzen AI PCs, making advanced robotics AI accessible for both research and production environments.
Our Robotics AI Pipeline: From Data Center to Desktop#
Our setup trains a 3-billion-parameter Pi0 policy model on AMD Instinct GPUs, then deploys it for real-time inference on an AMD Phoenix AI PC. The demonstration uses dual Koch robotic arms in a leader-follower configuration with a dual camera system for visual observation.

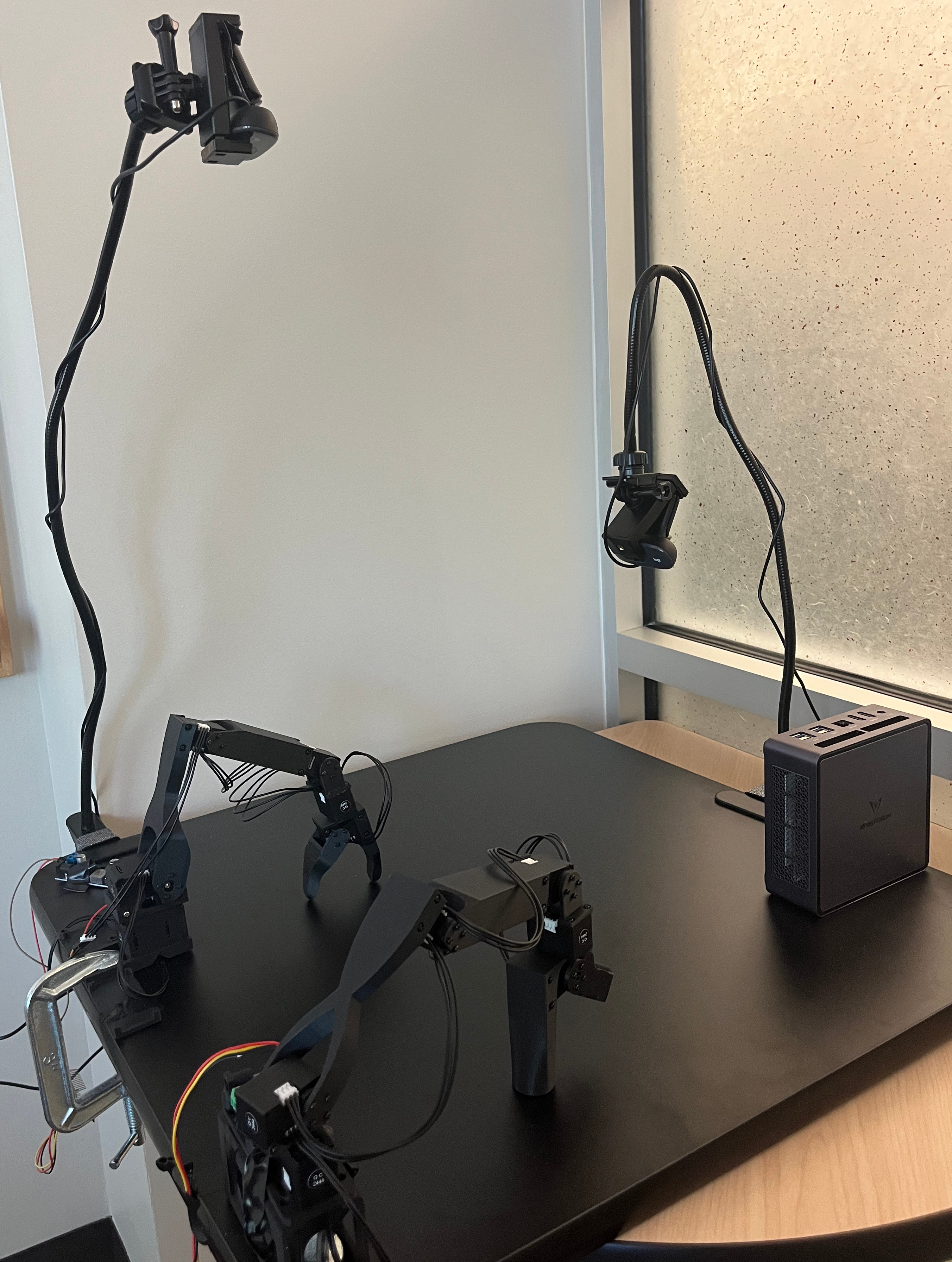

Figure 1. Our robotics setup features dual Koch robotic arms with leader-follower configuration, dual camera system for visual observation, and AMD Phoenix AI PC for real-time inference
The pipeline leverages AMD’s MI200 GPUs for model fine-tuning and the Phoenix AI PC’s integrated GPU for deployment. We collect robotic trajectory data and fine-tune the Pi0 model using LeRobot’s training framework.
Teaching Robots to See and Act#
Our demonstration centers around a simple yet illustrative task: pick up a block and place it inside a mug. Training data comes from two Logitech cameras capturing visual trajectories paired with the robotic joint positions. We vary the positions of both the mug and block during data collection to prevent overfitting to specific locations and improve policy generalization.
Fine-Tuning vs. Training from Scratch#
Training a large policy model from scratch requires large datasets to achieve reliable generalization. Instead, we fine-tune Pi0, a pre-trained foundational model that uses the Paligemma vision-language backbone. This architecture processes both visual observations and natural language task descriptions.
With just 50 trajectories of approximately 20 seconds each, we successfully adapt the large foundational model to our specific pick-and-place task. This approach demonstrates how pre-trained models can rapidly acquire new behaviors with minimal task-specific data.
Training and Deployment Architecture#
Training Phase: Model fine-tuning runs on AMD AI & HPC Cluster using MI200 GPUs with ROCm software stack.
Deployment Phase: The trained model runs on the Phoenix AI PC, providing real-time inference suitable for dynamic robotic applications.
This approach highlights a key advantage of AMD’s ecosystem – seamless scaling from powerful data center training to efficient edge deployment, enabling robotics applications that can train in the cloud and run anywhere.
Tutorial: LeRobot Docker Setup and Execution#
This section provides everything you need to set up and run LeRobot in a ROCm Docker container. We’ll use the Ryzers framework to simplify building and running dockerfiles on Ryzen AI platforms.
Prerequisites and Initial Setup#
1. Install Ryzers Framework#
First, clone and install the ryzers package:
git clone https://github.com/amdresearch/ryzers
pip install ryzers/
2. Configure Your Environment#
Edit the lerobot package config.yaml with your specific setup details. For example:
environment_variables:
- "HF_TOKEN=<your token here>"
- "MODEL_CKPT_PATH=<path to pretrained model>"
...
Reference Guide: HuggingFace Imitation Learning on Real-World Robots
To ensure consistent device recognition across Docker container restarts:
Hardware Setup: USB-Serial Device Mapping#
Step 1: Identify Your Device Serial Numbers#
ls -l /dev/serial/by-id/
Alternatively, you can automatically extract the serial numbers using this bash one-liner:
bash -c 'for tty in /dev/ttyACM*; do serial=$(udevadm info --name=$tty --query=property | grep ID_SERIAL_SHORT | cut -d= -f2); echo "$serial: $tty"; done'
Step 2: Create Device Mapping Rules#
Create 99-usb-serial.rules with your specific serial numbers:
SUBSYSTEM=="tty", ATTRS{idVendor}=="2f5d", ATTRS{idProduct}=="2202", ATTRS{serial}=="<your-leader-serial>", SYMLINK+="ttyACM_kochleader"
SUBSYSTEM=="tty", ATTRS{idVendor}=="2f5d", ATTRS{idProduct}=="2202", ATTRS{serial}=="<your-follower-serial>", SYMLINK+="ttyACM_kochfollower"
Replace <your-leader-serial> and <your-follower-serial> with the actual values from Step 1.
Step 3: Apply the Rules#
sudo cp 99-usb-serial.rules /etc/udev/rules.d/
sudo udevadm control --reload-rules
sudo udevadm trigger
Verify the mapping worked:
ls -l /dev/ttyACM_*
Docker Container Setup#
Build and launch the ROCm-enabled Docker container:
ryzers build lerobot
ryzers run bash
Inside the container, all your configured cameras, model files, and USB-serial ports will be mounted as specified in your config.yaml.
LeRobot Workflow#
Phase 1: Data Collection#
Record demonstration trajectories for your robot to learn from:
python -m lerobot.record \
--robot.type=koch_follower \
--robot.port=/dev/ttyACM_kochfollower \
--robot.id=my_awesome_follower_arm \
--robot.cameras="{ top: {type: opencv, index_or_path: ${VIDEO_PATH_1}, width: 640, height: 480, fps: 15}, side: {type: opencv, index_or_path: ${VIDEO_PATH_2}, width: 640, height: 480, fps: 15}}" \
--teleop.type=koch_leader \
--teleop.port=/dev/ttyACM_kochleader \
--teleop.id=my_awesome_leader_arm \
--display_data=false \
--dataset.repo_id=${HF_USER}/name_of_dataset \
--dataset.num_episodes=50 \
--dataset.single_task="Pick up the green block and place it in the mug" \
--dataset.reset_time_s=5 \
--dataset.episode_time_s=20 \
--dataset.fps=15
Key Parameters:
num_episodes=50: Collect 50 demonstration trajectories (adjust based on task complexity)episode_time_s=20: Each demonstration lasts 20 secondsreset_time_s=5: Time between episodes to reset the environment
Phase 2: Policy Training#
Train your robot’s policy using the collected data:
python lerobot/scripts/train.py \
--dataset.repo_id=${HF_USER}/name_of_dataset \
--policy.path=lerobot/pi0 \
--output_dir=outputs/train/pi0_policy \
--job_name=pi0_policy \
--policy.device=cuda \
--wandb.enable=false
Training Notes:
We run the training scripts on the AMD AI & HPC Cluster.
A helper script to set up your LeRobot environment on the cluster can be found on the Ryzers github repository.
Model checkpoints are saved to
outputs/train/pi0_policy/
Phase 3: Deployment and Inference#
Deploy your trained policy for real-time robot control:
python -m lerobot.record \
--robot.type=koch_follower \
--robot.port=/dev/ttyACM_kochfollower \
--robot.id=my_awesome_follower_arm \
--robot.cameras="{ top: {type: opencv, index_or_path: ${VIDEO_PATH_1}, width: 640, height: 480, fps: 15}, side: {type: opencv, index_or_path: ${VIDEO_PATH_2}, width: 640, height: 480, fps: 15}}" \
--teleop.type=koch_leader \
--teleop.port=/dev/ttyACM_kochleader \
--teleop.id=my_awesome_leader_arm \
--dataset.repo_id=${HF_USER}/pick_and_place_dataset \
--dataset.single_task="${DEPLOYMENT_TASK}" \
--policy.path=${MODEL_CHECKPOINT_PATH} \
--play_sounds=false
The robot will now autonomously perform the pick-and-place task using your trained policy! Figure 2 below shows a rollout of the fine-tuned Pi0 policy deployed on the AI PC.
Figure 2. The policy autonomously identifies the cube, picks it up and places it into the cup.
Summary#
This tutorial demonstrated the complete workflow of training and deploying VLAs for robotics using AMD’s ROCm software and Hugging Face’s LeRobot framework. We successfully fine-tuned a 3-billion-parameter Pi0 policy model on AMD Instinct™ GPUs, then deployed it for real-time robotic inference on an AMD Ryzen AI PC. The demonstration showcased how just 50 trajectories can effectively adapt a pre-trained foundational model to perform pick-and-place tasks with dual Koch robotic arms.
The integration of LeRobot’s standardized tools with AMD’s ROCm software creates a robust foundation for robotics research and development. By leveraging the Ryzers framework and ROCm Docker containers, this approach enables seamless scaling from powerful data center training to efficient edge deployment, democratizing access to advanced robotics AI across research and production environments.
We encourage you to get started with LeRobot and AMD ROCm today - building smarter, scalable, real-time robotics AI systems. Explore the examples on the LeRobot GitHub, take a look into Ryzers on how to enable it all with ROCm and check this space for future blogs and updates!
