Fast Image Generation and Editing with SGLang Diffusion on AMD GPUs

Fast Image Generation and Editing with SGLang Diffusion on AMD GPUs#

Fast Image Generation and Editing with SGLang Diffusion on AMD GPUs
July 10, 2026 by Chang Liu, Chun Fang, Andy Luo.
6 min read. | 1453 total words.
Applications & models
GenAI, Diffusion Model, Serving, Performance
AI, HPC, Systems

Visual generative AI is advancing at an extraordinary pace. OpenAI’s GPT Image 2, released in April 2026, is a reasoning-enabled image model that performs an internal planning process before generating images. Its predecessor generated over 700 million images within just its first week after launch. Google’s Nano Banana (Gemini 3.1 Flash Image) delivers real-time, knowledge-grounded image generation and editing, while open-source video models such as HunyuanVideo can now produce fluid, high-fidelity clips from a single sentence.

This rapid progress has placed serving infrastructure front and center. SGLang has established itself as a high-performance serving framework for large language and multimodal models. With SGLang Diffusion, it brings the same battle-tested scheduler and kernel optimizations to diffusion-based image and video generation. In this post, we demonstrate how to serve state-of-the-art diffusion models on AMD GPUs using SGLang Diffusion on ROCm, compare its performance against Hugging Face Diffusers, and explore the architectural innovations that make it possible.

Performance Comparison — SGLang Diffusion vs. Hugging Face Diffusers#

Before SGLang added diffusion support, Hugging Face Diffusers was the go-to Python library for running open-source diffusion models — flexible and well-documented, but not optimized for production serving. SGLang Diffusion closes that gap by combining SGLang’s high-throughput scheduler, continuous request batching, and optimized compute kernels on the AMD ROCm platform, significantly reducing per-step overhead in the evaluated configurations.

We benchmarked the two frameworks across four models — FLUX.1-dev, Qwen-Image, Qwen-Image-Edit-2511, and Z-Image-Turbo — covering text-to-image generation and image editing. All runs used a single AMD MI350X GPU, single-request concurrency, identical model weights, and the same number of inference steps per model. As shown in Figure 1 and Table 1 below, SGLang Diffusion consistently outperforms Hugging Face Diffusers across every model tested.

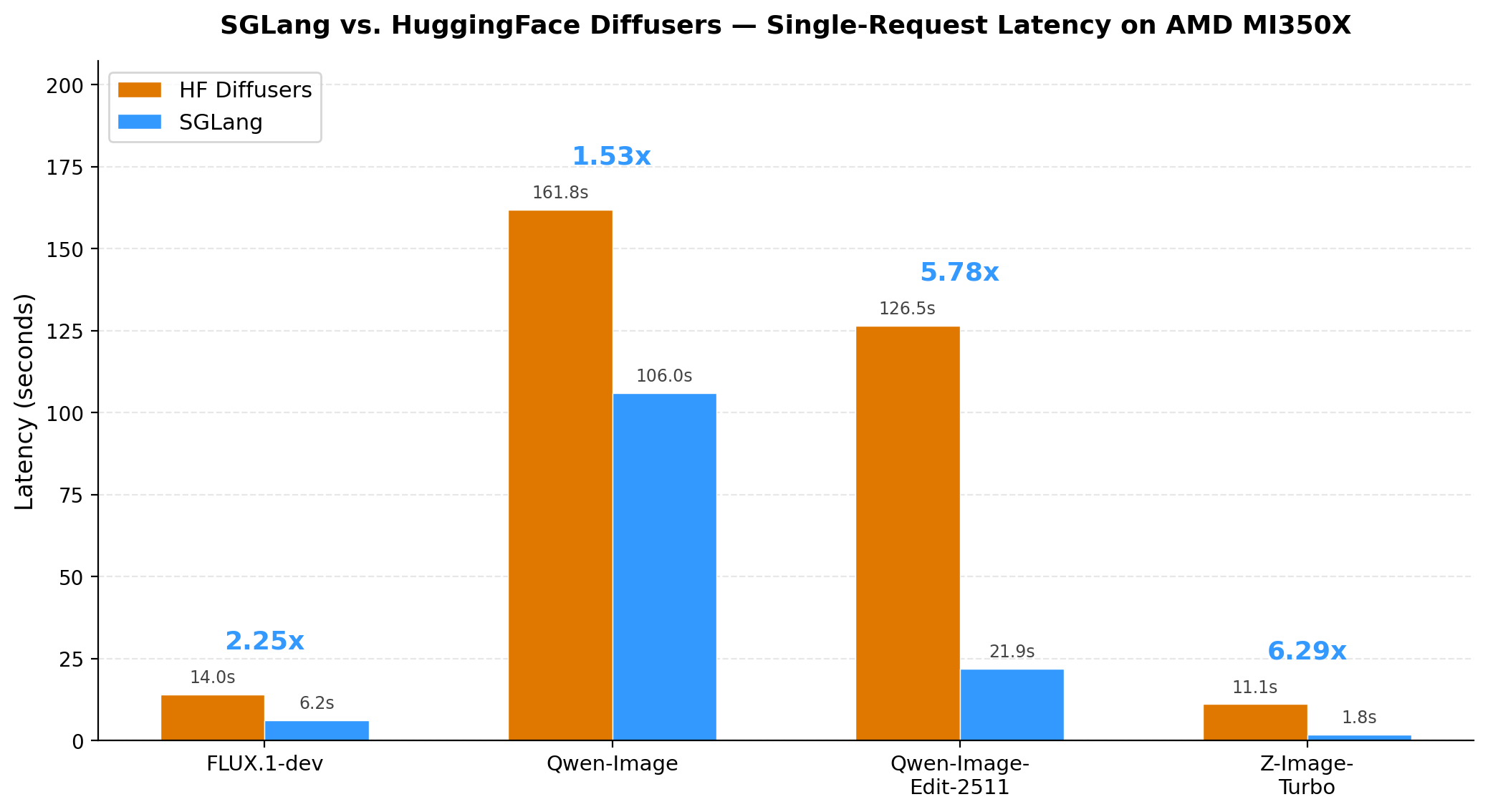

SGLang vs. Hugging Face Diffusers — Single-Request Latency on AMD MI350X

Figure 1. Single-request latency comparison on AMD MI350X. Lower is better. SGLang achieves 1.5x – 6.3x speedups across all four image generation and editing models tested. Results may vary based on model, software version, workload, configuration, and system settings.#

Table 1. Single-request latency on a single AMD MI350X GPU. Environment: SGLang v0.5.11, ROCm 7.2.0, AITER attention backend, bfloat16 precision.

Model

Task

Resolution

Steps

SGLang (s)

HF Diffusers (s)

Speedup

FLUX.1-dev

Text-to-Image

1024 x 1024

50

6.22

14.02

2.25x

Qwen-Image

Text-to-Image

1328 x 1328

50

106.00

161.83

1.53x

Qwen-Image-Edit-2511

Image-to-Image

512 x 512

50

21.89

126.52

5.78x

Z-Image-Turbo

Text-to-Image

1024 x 1024

9

1.76

11.07

6.29x

As detailed in Table 1, SGLang Diffusion achieves 1.5x – 6.3x speedups across all four models. Fused kernels and the AITER attention backend help sharply reduce per-step overhead, with distilled models like Z-Image-Turbo benefiting the most. On AMD ROCm, the AITER backend also transparently handles FP32 to BF16/FP16 dtype casting for encoder components in the diffusion pipeline, such as the CLIP encoder, ensuring numerically stable inference with no user-side code changes.

Step-by-Step Reproduction#

All benchmarks and sample outputs in this post were produced on AMD MI350X GPUs. This section provides the exact commands for reproducing each experiment — from environment setup to launching the server and running the benchmark client.

Environment Setup#

Install SGLang with diffusion support on AMD ROCm (source build):

git clone -b v0.5.12 https://github.com/sgl-project/sglang.git
cd sglang

# Build and install sgl-kernel for ROCm
cd sgl-kernel
python setup_rocm.py install

# Install SGLang with diffusion + HIP support
cd ..
rm -rf python/pyproject.toml && mv python/pyproject_other.toml python/pyproject.toml
pip install -e "python[all_hip]"

Alternatively, pull the pre-built Docker image:

# AMD GPU Docker run alias
alias drun='docker run -it --rm --network=host --privileged \
  --device=/dev/kfd --device=/dev/dri \
  --ipc=host --shm-size 16G --group-add video \
  --cap-add=SYS_PTRACE --security-opt seccomp=unconfined \
  -v $HOME/dockerx:/dockerx'

drun lmsysorg/sglang:rocm-diffusion /bin/bash

Text-to-Image with FLUX.1-dev#

Single-shot generation via CLI:

sglang generate \
  --model-path black-forest-labs/FLUX.1-dev \
  --prompt "A Logo With Bold Large Text: SGL Diffusion" \
  --save-output

Benchmarking commands:

# Launch the server
sglang serve \
  --model-path black-forest-labs/FLUX.1-dev \
  --ulysses-degree=1 \
  --ring-degree=1 \
  --port 30000

# Run the benchmark client
python3 -m sglang.multimodal_gen.benchmarks.bench_serving \
  --backend sglang-image --dataset vbench --task text-to-image \
  --num-prompts 1 --max-concurrency 1 \
  --dataset-path $VBENCH

Text-to-Image with Qwen-Image#

Qwen-Image:

Single-shot generation via CLI:

sglang generate \
  --model-path Qwen/Qwen-Image \
  --prompt "A serene mountain landscape at sunset" \
  --save-output

Benchmarking commands:

# Launch the server
sglang serve \
  --model-path Qwen/Qwen-Image \
  --ulysses-degree=1 \
  --ring-degree=1 \
  --port 30000

# Run the benchmark client
python3 -m sglang.multimodal_gen.benchmarks.bench_serving \
  --backend sglang-image --dataset vbench --task text-to-image \
  --num-prompts 1 --max-concurrency 1 \
  --dataset-path $VBENCH

Qwen-Image-Edit-2511:

Single-shot generation via CLI:

sglang generate \
  --model-path Qwen/Qwen-Image-Edit-2511 \
  --prompt "Turn the sky into a starry night" \
  --save-output

Benchmarking commands:

# Launch the server
sglang serve \
  --model-path Qwen/Qwen-Image-Edit-2511 \
  --port 30000

# Run the benchmark client
python3 -m sglang.multimodal_gen.benchmarks.bench_serving \
  --backend sglang-image --dataset vbench --task image-to-image \
  --num-prompts 1 --max-concurrency 1

Text-to-Image with Z-Image-Turbo#

Single-shot generation via CLI:

sglang generate \
  --model-path Z-Image-Turbo \
  --prompt "A futuristic cityscape with neon lights" \
  --save-output

Benchmarking commands:

# Launch the server
sglang serve \
  --model-path Z-Image-Turbo \
  --ulysses-degree=1 \
  --ring-degree=1 \
  --port 30000

# Run the benchmark client
python3 -m sglang.multimodal_gen.benchmarks.bench_serving \
  --backend sglang-image --dataset vbench --task text-to-image \
  --num-prompts 1 --max-concurrency 1 \
  --dataset-path $VBENCH

For the full command reference and hardware-specific configurations, see the SGLang Diffusion Cookbook and the AMD GPU platform docs.

Architecture Deep Dive#

Latent Diffusion Pipeline#

Modern diffusion models follow a three-stage pipeline: a text encoder (CLIP, T5, or LLaMA) produces conditioning embeddings, a Diffusion Transformer (DiT) iteratively denoises latent tokens over 20–50 steps (the dominant cost), and a VAE decoder maps latents back to pixel space.

SGLang Diffusion Serving#

SGLang Diffusion decomposes this pipeline into modular, independently schedulable stages (TextEncodingStage → DenoisingStage → DecodingStage) orchestrated by ComposedPipelineBase under the SGLang scheduler, which manages the request lifecycle and can run stages monolithically or disaggregated across separate encoder, denoiser, and decoder processes. Multi-GPU scaling is supported via USP (hybrid Ulysses-SP + Ring-Attention for the DiT), CFG-Parallel (splitting classifier-free guidance paths across GPUs), Tensor Parallelism (mainly for the text encoders), and dedicated VAE parallelism. Key kernel optimizations in sgl-kernel include fused MLP projections and a JIT-compiled kernel that fuses QK normalization with RoPE to cut memory round-trips. On top of these, Distributed VAE parallelizes encode/decode to avoid OOM at high resolutions.

The AMD ROCm Stack#

┌──────────────────────────────────────────────────────────┐
│                   SGLang Diffusion                       │
│          (ComposedPipelineBase + Scheduler)              │
├──────────────────────────────────────────────────────────┤
│                     sgl-kernel                           │
│  (fused DiT ops, Cache-DiT, Distributed VAE, RoPE)       │
├─────────────────────┬────────────────────────────────────┤
│      AITER          │          Triton (HIP backend)      │
│  (AI Tensor Engine) │  (flash attention, norm kernels)   │
├─────────────────────┴────────────────────────────────────┤
│               ROCm / HIP Runtime                         │
├──────────────────────────────────────────────────────────┤
│     AMD Instinct GPU  (MI300X / MI325X / MI355X)         │
└──────────────────────────────────────────────────────────┘

AITER (AI Tensor Engine for ROCm) is AMD’s high-performance kernel library, providing optimized flash attention, GEMM, and normalization primitives sourced from Composable Kernel (CK), Triton, and HIP/C++ backends with per-architecture dispatch. In SGLang Diffusion, AITER serves as the default attention backend, handling flash attention inside the DiT loop and transparently managing FP32 to BF16/FP16 dtype casting for compatibility with all model components. Quantization via FP8 and INT8 further reduces memory footprints for serving large models on AMD GPUs.

Summary#

In this blog, we explored how SGLang Diffusion serves state-of-the-art diffusion models on AMD GPUs, benchmarked its performance against Hugging Face Diffusers, and reproduced the results end-to-end. Across four models – FLUX.1-dev, Qwen-Image, Qwen-Image-Edit-2511, and Z-Image-Turbo — you saw 1.5x – 6.3x speedups on a single AMD MI350X, powered by SGLang’s fused kernels, continuous batching scheduler, and the AITER attention backend on the ROCm stack. You also walked through the full reproduction workflow, from environment setup and server launch to running the benchmark client, and took a deeper look at the architecture that makes these gains possible.

Looking ahead, we are actively working on several fronts to push SGLang Diffusion further on AMD GPUs:

  • FP8 and INT8 quantization — shrinking memory footprints to serve larger models and increase throughput on AMD Instinct GPUs.

  • Multi-GPU USP scaling — extending hybrid Ulysses-SP and Ring-Attention parallelism to the largest video generation models.

  • Video generation workflows — bringing the same serving optimizations to open-source video models such as HunyuanVideo and Wan.

Stay tuned for future posts from our team as we continue to optimize diffusion model serving on the AMD ROCm platform.
