Multi-Node Distributed Inference for Diffusion Models with xDiT

Multi-Node Distributed Inference for Diffusion Models with xDiT#

Multi-Node Distributed Inference for Diffusion Models with xDiT
March 18, 2026 by Jarkko Lehtiranta, Tero Kemppi, Rony Leppänen, Johanna Malinen.
7 min read. | 1745 total words.
Software tools & optimizations
Performance, Diffusion Model, GenAI
AI

The first two authors (Lehtiranta, Kemppi) contributed equally to this work.

In this blog post, we show how to run multi-node inference for diffusion models on AMD Instinct MI300X accelerators. We begin by outlining the key considerations involved in scaling inference across multiple nodes and then walk through a concrete example using HunyuanVideo.

Diffusion models are widely used in generative AI, especially for image and video generation. Text-to-video models like HunyuanVideo can produce high-quality results, but they come with heavy computational requirements. These models are based on the Diffusion Transformer (DiT) architecture, and video generation in particular can suffer from high inference latency.

One effective way to reduce latency is to scale inference across multiple nodes, which allows both computation and memory usage to be distributed across GPUs. We demonstrate how to run multi-node inference for diffusion models using xDiT, leveraging parallelization techniques and high-speed interconnects to enable efficient multi-node inference on AMD Instinct accelerators.

Multi-node challenges#

Running inference across multiple nodes requires careful coordination, especially when parallelization is involved. Sequence parallelization techniques such as DeepSpeed-Ulysses and Ring Attention allow us to split large attention workloads efficiently. Unified Sequence Parallelism (USP) combines these two approaches so they can be used together, and the xDiT library supports USP out of the box, making it relatively easy to adopt.

In distributed diffusion inference, the workload is split by breaking attention-dominated and other expensive operations into smaller pieces that can run in parallel. Each node processes part of the computation, and the partial results are combined. This approach reduces latency and allows inference to scale with the available hardware.

In our setup, only the diffusion Transformer is parallelized across nodes. The VAE is executed locally on a single GPU as its runtime contribution is relatively small compared to the diffusion process.

Communication and Performance Optimization#

Efficient communication is critical for multi-node inference. For GPU-to-GPU communication within a node, we rely on RCCL (the ROCm collective communication library). For communication between nodes, we use RoCE (RDMA over Converged Ethernet). While RoCE can fall back to TCP/IP, this fallback is significantly slower and quickly becomes a bottleneck. For high-performance inference, RCCL combined with RDMA is the preferred setup. These results assume a low-latency, high-bandwidth network between the nodes.

On top of this, we use the AITER implementation to further optimize inference performance. AITER provides high-performance kernels, including FlashAttention v3, which improves attention efficiency and reduces end-to-end inference latency.

Unified Sequence Parallelism in Practice#

Unified Sequence Parallelism (USP) depends on explicit communication patterns to scale efficiently across nodes. In our experiments, configurations based purely on Ulysses delivered the best performance, likely because of its low communication overhead. Ring Attention offers flexibility in how computation is distributed across nodes, but at the cost of higher communication volume.

In practice, USP requires choosing how to combine Ulysses and Ring Attention based on both the model architecture and the available hardware. A key constraint is the number of attention heads since the Ulysses degree must evenly divide the attention head count. This determines which configurations are possible using Ulysses alone.

For example, HunyuanVideo has 24 attention heads, while Wan 2.1 14B has 40 heads. As a result, HunyuanVideo naturally supports a Ulysses degree of 24, while Wan 2.1 supports a degree of 40. On nodes with 8 GPUs, this allows HunyuanVideo to scale cleanly to 3 nodes (24 GPUs), and the 40 head Wan model scales to 5 nodes (40 GPUs) using Ulysses alone.

Scaling to other node counts requires supplementing Ulysses with Ring Attention. In this case, Ulysses is best used as the inner dimension where its lower communication volume and bandwidth efficiency can be fully exploited while Ring Attention makes scaling possible beyond the attention-head constraint. When using Ulysses and Ring Attention together, the total GPU count must equal the Ulysses degree multiplied by the Ring degree.

Performance Observations and Practical Considerations#

In our experiments, using Ulysses across three nodes reduces inference latency to nearly half of the single-node baseline.[1] In contrast, the speedup from Ring Attention is noticeably smaller, as it introduces more cross-node communication and additional data movement that quickly becomes limiting factors. As a result, Ring Attention is better suited for enabling larger scale-out configurations than for maximizing raw latency improvements.

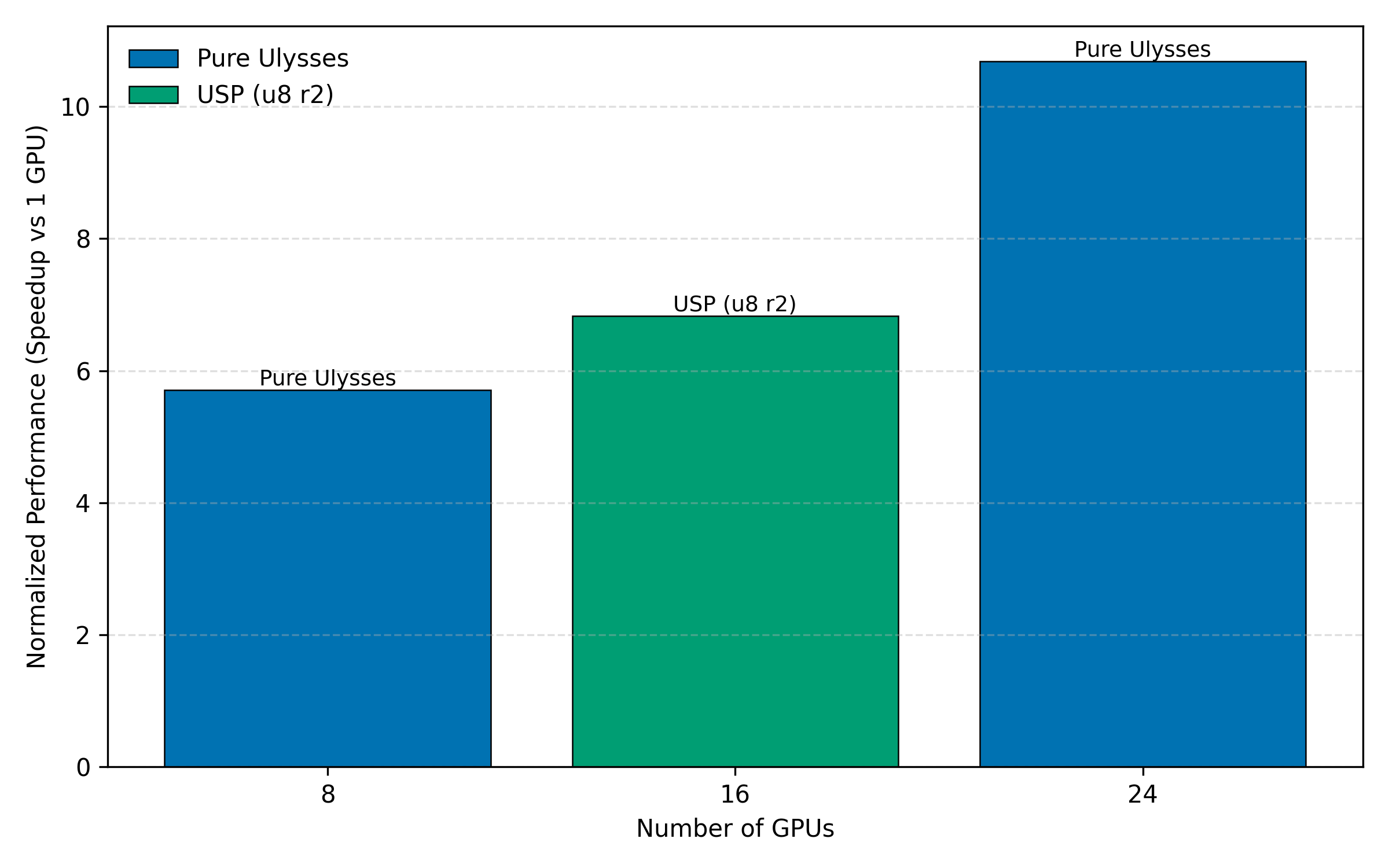

Figure 1 illustrates the normalized performance of the best-performing configuration at each GPU count, showing that Ulysses scales more effectively for low-latency inference, while Ring Attention enables node configurations that are not possible with Ulysses alone.

Figure 1 Figure 1: Normalized performance for the best-performing configuration at each GPU count.[1]

Beyond latency improvements, multi-node inference also enables memory scaling, allowing larger batch sizes or longer video sequences without CPU offloading.

Multi-node inference is sensitive to configuration details, and the resulting issues are not always obvious. RoCE may silently fall back to TCP/IP if drivers or network settings are incorrect, leading to large performance drops. Misconfigured attention head counts or Ulysses degrees can cause failures, and adding more nodes does not automatically improve performance if communication overhead is large.

How to choose a parallelization strategy#

Choosing the right parallelization strategy depends on both the model and the available hardware:

  • Multiple nodes with matching attention head alignment: Use Ulysses across nodes when the number of attention heads divides evenly by the total GPU count.

  • Arbitrary node count: Combine Ulysses with Ring Attention using USP.

  • Network limited environments: Prefer fewer nodes and avoid heavy Ring Attention usage.

Running the example#

PyTorch’s torchrun makes it straightforward to launch multi-node inference, but some manual setup is still required. In this example, containers and torchrun are started independently on each node.

Host setup (all nodes)#

Each node must have the AMD MI300X GPU drivers and RoCE networking drivers installed on the host OS. Follow the steps in Multi-node network configuration for AMD Instinct accelerators to set up the required host drivers.

Verify that RDMA devices are visible on the host:

ibv_devices

You should see multiple devices listed (for example, bnxt_re* or rdma*). This confirms that the RDMA networking stack is available and functioning on the host.

Step 1: Start containers on each node#

SSH into each node (both the master and all worker nodes) to start a local container using the rocm/rocm/pytorch-xdit:v25:10 image.

First, set a shared Hugging Face cache location on each node (preferably on a shared filesystem such as VFS):

export HF_CACHE=~/.cache/huggingface

Then, start the container on each node using the same command:

docker run --ipc host --network=host \
  --device /dev/dri --device /dev/kfd --device /dev/infiniband \
  --ulimit memlock=-1:-1 \
  --cap-add SYS_PTRACE \
  --group-add video \
  --security-opt seccomp=unconfined \
  --privileged \
  --shm-size 128G \
  --mount type=bind,src=${HF_CACHE},dst=/hf_cache \
  -e HF_HOME=/hf_cache \
  -e HSA_NO_SCRATCH_RECLAIM=1 \
  -e NCCL_IB_HCA=bnxt_re0,bnxt_re1,bnxt_re2,bnxt_re3,bnxt_re4,bnxt_re5,bnxt_re6,bnxt_re7 \
  -e NCCL_SOCKET_IFNAME=ens51f1np1 \
  -e GLOO_SOCKET_IFNAME=ens51f1np1 \
  -e NCCL_IB_GID_INDEX=3 \
  -e NCCL_IB_TIMEOUT=22 \
  -e NCCL_IB_RETRY_CNT=12 \
  --name hunyuan-video-multinode-inference \
  -it rocm/pytorch-xdit:v25.10 \
  bash

Important configuration details:

  • --network=host is required for torchrun rendezvous across nodes.

  • NCCL_IB_GID_INDEX=3 sets the Global ID index for a RoCE device.

  • The RDMA device names (bnxt_re*, or rdma*) and network interface name must match the hardware and configuration on each node.

  • NCCL_IB_HCA should list the RDMA devices used for inter-node communication. Use the ibv_devices command to list RDMA device names.

  • NCCL_SOCKET_IFNAME must point to the network interface used for node-to-node communication. Use the ip link command to identify the network interface to use.

Step 2: Validate drivers inside the container#

Inside the container, install the minimal required RDMA userspace tools:

apt update && apt install -y --no-install-recommends \
  libibverbs1 ibverbs-utils ibverbs-providers rdma-core

Next, verify that RDMA devices are visible inside the container:

ibv_devices

The output should match what you see on the host.

However, if you see a warning like the one below, it indicates a mismatch between the RDMA kernel drivers on the host and the RDMA userspace libraries inside the container:

libibverbs: Warning: Driver bnxt_re does not support the kernel ABI of 6 (supports 1 to 1) for device /sys/class/infiniband/bnxt_re0

If the command lists devices and there are no warnings, and you know the host OS is using the same drivers provided by the OS, you can move to step 3 to run inference.

If you are not sure which provider and driver versions are installed, use commands lspci | grep -i -E 'mellanox|broadcom' and lsmod | grep -E 'mlx5|bnxt' to identify the RDMA vendor, then run modinfo bnxt_re (Broadcom) or modinfo mlx5_ib (Mellanox) to check the kernel driver version in use.

To install the required build dependencies run the following command:

apt install -y --no-install-recommends \
  build-essential pkg-config autoconf automake libtool unzip \
  libibverbs-dev

Next, download the vendor RDMA driver package (subject to the vendor’s license terms), copy it into the container, and build the RDMA userspace drivers (example shown for Broadcom). Verify that the driver package version matches the host.

unzip -j bcm5760x_230.2.52.0a.zip \
  bcm5760x_230.2.52.0a/drivers_linux/bnxt_rocelib/libbnxt_re-230.2.52.0.tar.gz
tar -xzf libbnxt_re-230.2.52.0.tar.gz
cd libbnxt_re-230.2.52.0
sh autogen.sh && ./configure --libdir=/usr/lib/x86_64-linux-gnu/libibverbs/
make && make install && ldconfig

This installs the vendor RDMA userspace library and replaces the inbox driver provided by the OS. Rerun ibv_devices to verify the devices are detected without warnings.

As an alternative to installing RDMA userspace drivers inside the container, it is also possible to mount RDMA userspace drivers from the host. In this case, ensure that the mounted driver is selected by libibverbs, as inbox RDMA userspace libraries installed in the container may otherwise take precedence.

Step 3: Launch multi-node inference#

Now that the containers are running on all nodes, launch torchrun inside each container.

On every node, set NODE_RANK to a unique value starting from 0, and set MASTER_ADDR to the IP address of the node chosen as the master.

cd /app/Hunyuanvideo

NODE_RANK=0
MASTER_ADDR=x.y.z.w

torchrun \
  --nnodes=3 \
  --node_rank=$NODE_RANK \
  --master_addr=$MASTER_ADDR \
  --master_port=29475 \
  --nproc_per_node=8 \
  --rdzv_conf timeout=60 \
  run.py \
  --model tencent/HunyuanVideo \
  --prompt "In the large cage, two puppies were wagging their tails at each other." \
  --height 720 --width 1280 --num_frames 129 \
  --num_inference_steps 50 --warmup_steps 1 --n_repeats 1 \
  --ulysses_degree 24 \
  --enable_tiling --enable_slicing \
  --use_torch_compile \
  --bench_output results

This script launches the multi-node inference job across all specified nodes. The choice of Ulysses and Ring degrees directly affects performance and scalability, as discussed earlier in this post. The Ulysses degree must be chosen to match the number of participating nodes.

To verify that the communication uses RDMA devices rather than TCP, enable RCCL logging before launching torchrun:

export NCCL_DEBUG=INFO
export NCCL_DEBUG_SUBSYS=INIT,NET
export NCCL_DEBUG_FILE=/tmp/rccl.log

In the output, look for messages indicating the NET/IB transport which confirms that RCCL is using RDMA. If the logs instead show NET/Socket, RCCL has fallen back to TCP and RDMA is not being used.

Summary#

In this blog post, we showed how to run multi-node inference for diffusion models such as HunyuanVideo on AMD Instinct MI300X accelerators. While scaling inference across nodes can reduce latency, in practice it is constrained by networking, driver compatibility, and parallelization choices.

We demonstrated how Ulysses scales when attention heads divide cleanly across GPUs. For example, HunyuanVideo, with its 24 attention heads, is a natural fit for three nodes. We also walked through the practical steps for running successful multi-node inference, including driver validation, RDMA and networking configuration, and launching torchrun consistently across nodes using Docker.
