Performance Profiling on AMD GPUs - Part 3: Advanced Usage

Performance Profiling on AMD GPUs - Part 3: Advanced Usage#

Performance Profiling on AMD GPUs - Part 3: Advanced Usage
October 23, 2025 by Gina Sitaraman, Thomas Gibson, Luka Stanisic, Giacomo Capodaglio, Alessandro Fanfarillo, Asitav Mishra.
11 min read. | 2762 total words.
Software tools & optimizations
HPC, Performance, Optimization, Profiling
HPC

This document, like the previous article in the profiling guide series, is designed to help you systematically analyze and improve the performance of your GPU-accelerated application. This guide will build upon the foundational skills that you acquired from the previous article and introduce you to assessing the performance of multi-process GPU applications based on the Message Passing Interface (MPI).

  1. What You Already Know:

    • Your MPI-based multi-process application leverages GPUs for computation, and you understand the basic purpose of each GPU kernel in your code.

    • You recognize kernel performance limiters such as “latency-bound” or “memory-bound”.

    • You have observed that your application performs better on non-AMD hardware, despite comparable specifications (optional).

  2. What This Guide Will Teach You:

    • Multi-Process Profiling Basics: learn how to profile a multi-process job and measure where your application spends time.

    • Network Profiling and Optimization: explore details of MPI calls, especially those used in inter-node communication, and learn to optimize at scale.

    • Advanced GPU kernel optimization: explore further optimization opportunities driven by performance metrics collected by rocprof-compute.

By the end of this document, you will be able to profile your multi-process application to identify opportunities for optimization on the GPU, CPU and in MPI communication, with a focus on bridging the performance gap you may have observed on AMD hardware.

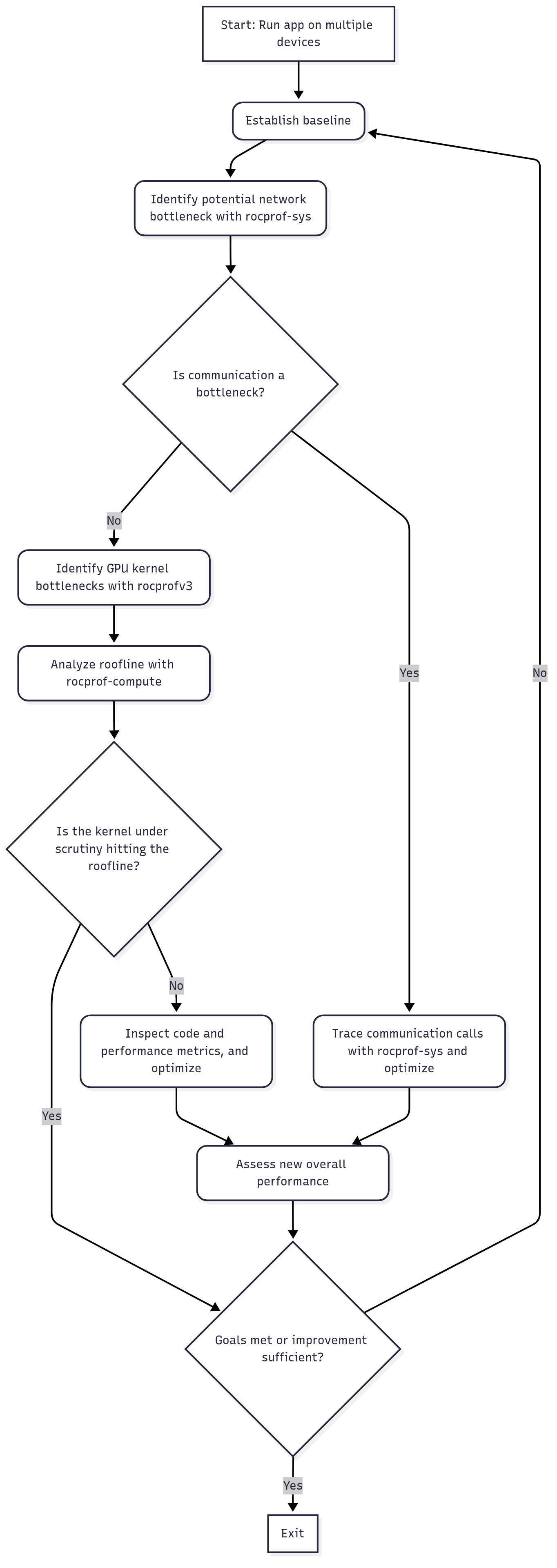

We build upon the flowchart depicting the profiling process from the previous blog and show how it varies when we are dealing with an application that runs with multiple processes communicating with each other. We refer to the flowchart shown in Figure 1 for the rest of this discussion.

../../../_images/advanced_flowchart.png

Figure 1: Multi-process Profiling Flowchart.

Profiling basics#

We reiterate the typical guideline for performance analysis and optimization of an application below:

  • Establish baseline performance: Run the key scenario without any profiler attached to measure the baseline performance. This gives you a reference point to compare against later.

  • Identify bottlenecks: What fraction of total run-time is spent on the host (CPU), the device (GPU), and in MPI communication? Where is the largest bottleneck?

  • Analyze roofline: If the bottleneck is a GPU kernel, how much room for improvement is there in the most limiting kernel?

  • Analyze kernel performance metrics: What is the main limiter for the most time-consuming kernel?

  • Analyze communication performance: If the bottleneck is communication, study network profiling data

  • Perform optimization: What possible optimizations on the code can be done based on the analysis so far?

  • Iterate: If the optimization step achieves the desired target performance, move on to the next hot-spot region. Iterate through the above-mentioned steps until fully satisfied.

We will follow this guideline as we go through a performance analysis and optimizations of the same HIP ported Jacobi application introduced in the previous blog.

Jacobi example#

As a working example, we will continue to use the code example: HPCTrainingExamples/HIP/jacobi. This Jacobi solver utilizes GPUs for computation and MPI for halo exchanges in a distributed environment. Employing a 2D domain decomposition scheme improves the computation-to-communication ratio compared to a 1D approach.

The Jacobi solver is an MPI application capable of running on both multiple GPUs and nodes. In this post, we will run the solver with 4 processes, each using a single GPU device.

Typical build and run steps are shown below. For the profiling tools used in this post, we recommend using ROCm 6.4.x. In addition to ROCm, ensure that a MPI implementation, such as OpenMPI or Cray MPICH, is loaded in your environment.

git clone https://github.com/amd/HPCTrainingExamples.git
cd HPCTrainingExamples/HIP/jacobi
make

Before profiling an application, it is critical to first verify that the application runs successfully. In systems with the Slurm job scheduler, we can run the application using 4 MPI processes on a single node, as shown below:

srun -N1 -n4 -c1 -t 05:00 ./Jacobi_hip -g 2 2

Note that if you are using OpenMPI, you can interactively run the job using mpirun -np 4 ./Jacobi_hip -g 2 2 instead of using srun.

Another very important step when running parallel jobs is to ensure proper GPU and CPU core affinity settings for each process. We are interested in running this Jacobi solver such that each process uses a different GPU device. On the Frontier supercomputer, this is accomplished by adding the --gpu-bind=closest --gpus-per-task=1 Slurm options when submitting your job.

srun -N1 -n4 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 ./Jacobi_hip -g 2 2

Setting proper affinity on other systems could be challenging, but Affinity Part 1 and Affinity Part 2 ROCm blog posts can help you understand your system’s topology and set up affinity accordingly.

The output of the above command should look something like the following:

Topology size: 2 x 2
Local domain size (current node): 4096 x 4096
Global domain size (all nodes): 8192 x 8192
Rank 0 selecting device 0 on host <hostname>
Starting Jacobi run.
Iteration:   0 - Residual: 0.015629
Iteration: 100 - Residual: 0.000442
Iteration: 200 - Residual: 0.000263
Iteration: 300 - Residual: 0.000194
Iteration: 400 - Residual: 0.000156
Iteration: 500 - Residual: 0.000132
Iteration: 600 - Residual: 0.000115
Iteration: 700 - Residual: 0.000103
Iteration: 800 - Residual: 0.000093
Iteration: 900 - Residual: 0.000085
Iteration: 1000 - Residual: 0.000079
Stopped after 1000 iterations with residue 0.000079
Total Jacobi run time: 1.3160 sec.
Measured lattice updates: 50.99 GLU/s (total), 12.75 GLU/s (per process)
Measured FLOPS: 866.89 GFLOPS (total), 216.72 GFLOPS (per process)
Measured device bandwidth: 4.90 TB/s (total), 1.22 TB/s (per process)
Percentage of MPI traffic hidden by computation: 100.0
Rank 1 selecting device 1 on host <hostname>
Rank 3 selecting device 3 on host <hostname>
Rank 2 selecting device 2 on host <hostname>

The program completed execution in 1.3160 seconds. This establishes our initial performance benchmark, against which we will measure improvements following the profiling and optimization phases.

When establishing a performance baseline for an MPI application, it is beneficial to initially assess its strong and/or weak scaling characteristics. You will observe that this Jacobi solver is a weak scaling test. When changing the number of processes it runs with, the problem size is adjusted automatically:

srun -N1 -n1 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 ./Jacobi_hip -g 1 1
# Global domain size (all nodes): 4096 x 4096
# Total Jacobi run time: 1.2933 sec.

srun -N1 -n2 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 ./Jacobi_hip -g 2 1
# Global domain size (all nodes): 8192 x 4096
# Total Jacobi run time: 1.3342 sec.

srun -N1 -n4 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 ./Jacobi_hip -g 2 2
# Global domain size (all nodes): 8192 x 8192
# Total Jacobi run time: 1.3160 sec.

Identify bottlenecks#

Bottleneck identification is a critical step in the profiling process, where developers pinpoint the parts of the program that limit overall performance. This blog post focuses on multi-GPU profiling, beginning with an analysis of communication costs. Generally, there is not a prescribed order for identifying an application’s primary bottlenecks.

Analyze application trace#

To get a high level timeline profile of device activity in the application, we showed in the previous article in the profiling guide series that rocprofv3 can be used to generate these traces. For example, in the MPI environment shown below, rocprofv3 can be invoked to generate an application timeline trace for each rank:

srun -N1 -n4 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 rocprofv3 --kernel-trace --hip-trace --output-format pftrace -d jacobi_trace -o jacobi_%rank% -- ./Jacobi_hip -g 2 2

The above command will generate jacobi_<rank id>.pftrace files under the jacobi_trace directory. You can then merge all individual trace files for each rank into a single merged pftrace file that can be viewed using Perfetto:

cat jacobi_trace/jacobi_*.pftrace > merged_jacobi.pftrace

However, rocprofv3 does not provide you with information about host activity beyond API calls and host-side runtime activity (e.g. kernel launches) without the user instrumenting the application manually (for example, using ROCTracer). Understanding host-side activity can be critical for assessing the overall performance of an application.

To get a high level, comprehensive profile encompassing both the host and device activities in the application, we instead recommend the application tracing tool ROCm Systems Profiler, also known as rocprof-sys. Profiling with rocprof-sys typically involves a few steps as described in the sub-sections below. Briefly, we generate a configuration file to tune runtime behavior of the profiler, then trace the application either with or without an instrumented binary.

Generate a rocprof-sys runtime configuration file (required only once)#

rocprof-sys runtime options can be controlled by a configuration file. To generate this file and view the current runtime options, you can use the rocprof-sys-avail executable. The commands below generate the configuration file and tell rocprof-sys where it is located.

rocprof-sys-avail -G ~/.rocprofsys.cfg
export ROCPROFSYS_CONFIG_FILE=~/.rocprofsys.cfg

In some cases, the default values may need to be changed for your run. For example, if your workload is mainly GPU bound, you may not care about the clock frequency of every CPU logical core. In this case, you can set ROCPROFSYS_SAMPLING_CPUS to none to make the trace easier to visualize. Or you may find it useful to set ROCPROFSYS_PROFILE to true in order to collect wall clock timing values for different parts of your code. For detailed documentation of the rocprof-sys-avail utility, its usage, and a more comprehensive list of rocprof-sys runtime options, go to the Configuring runtime options page in the ROCm Systems Profiler documentation.

TIP: Before running rocprof-sys-avail, run which rocprof-sys-avail to ensure the path matches the expected installation (for example, the module you loaded for the ROCm version you intend to use).

Collect application trace#

Using the instrumented binary (or the original application binary), we can then collect a trace using the rocprof-sys-run command in the MPI environment as shown below.

srun -N1 -n4 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 rocprof-sys-run -- ./Jacobi_hip.inst -g 2 2

Check the command line output generated by rocprof-sys-run. It contains some useful overviews for each MPI rank (e.g., peak_rss -> the peak amount of memory a process has used) and paths to generated files. When inspecting the Total Jacobi run time: line printed by the application, one can observe that the total runtime is not far from the baseline, meaning that the profiling overhead is small.

If you had set ROCPROFSYS_PROFILE=true, inspect the wall_clock-*.txt files generated separately for each MPI rank. For each function, you can analyze basic statistics, e.g., how many times these calls have been executed (COUNT) or the time in seconds they took in total (SUM). Wall clock files include information about the MPI calls, GPU kernels, HIP activity, instrumented CPU functions, and many more depending on the selected configuration options.

Finally, arguably the most important outputs provided by rocprof-sys-run are the *.proto timeline trace files that can be found in the rocprofsys-Jacobi_hip.inst-output/<TIMESTAMP> directory. Depending on the ROCm version, for multi-rank MPI runs, these files may have already been merged into a unified merged.proto. If this is not the case, you can easily merge the individual .proto files by simply appending the traces together as shown earlier for rocprofv3:

cat perfetto-trace-*.proto > merged.proto

Visualizing traces using Perfetto#

Copy the generated merged.proto file to your local machine using scp or rsync using a command such as:

rsync -avz user@host:/path/to/remote/merged.proto /path/in/local/host

Navigate to the web page https://ui.perfetto.dev/ in the Chrome browser to visualize the file. Click on Open trace file and select the merged.proto file. If there is an error opening the trace file, (especially common for older ROCm releases), try using an older Perfetto version, e.g., by opening the web page https://ui.perfetto.dev/v46.0-35b3d9845/#!/.

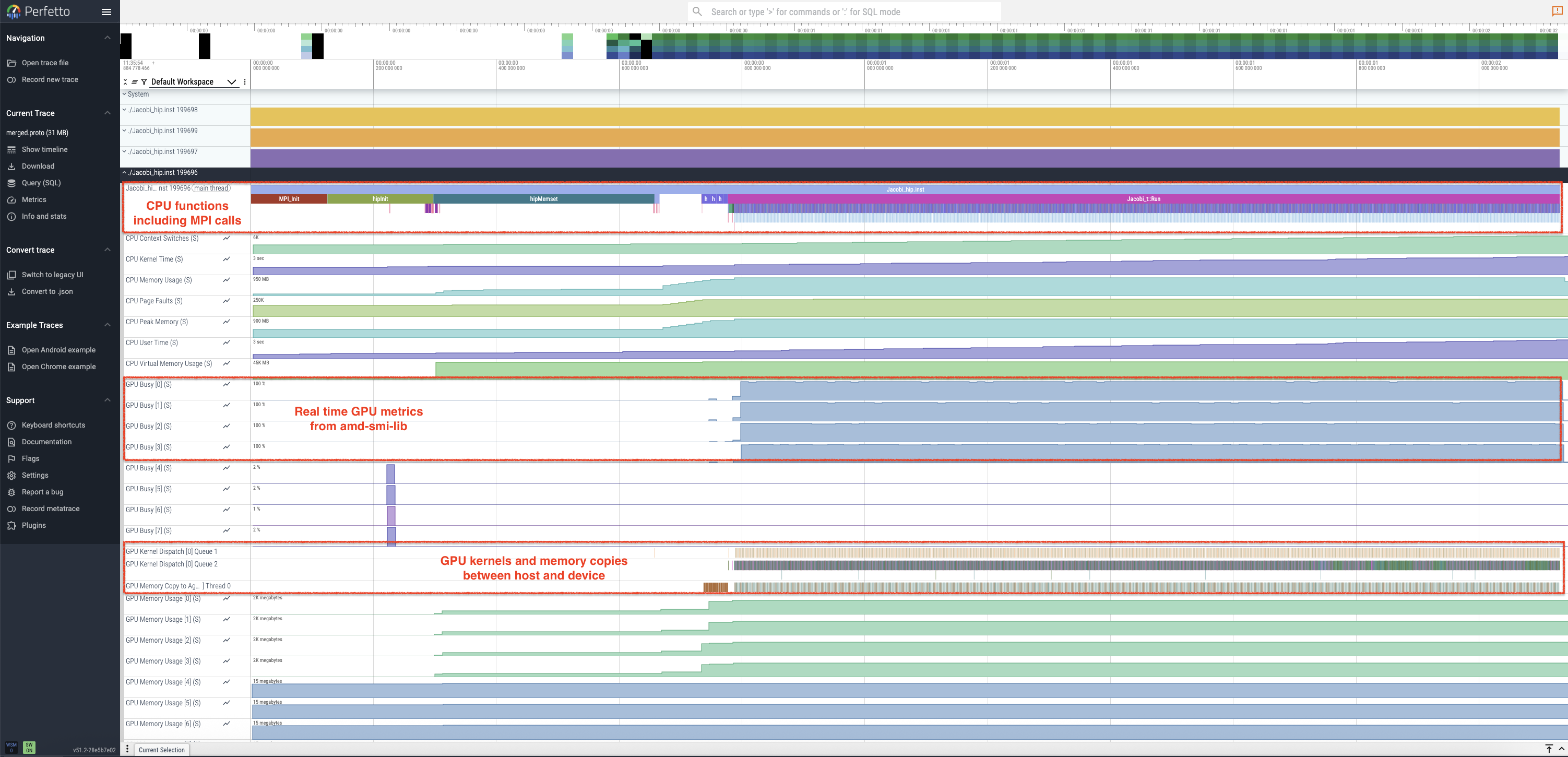

In Figure 2, you can see an example of how the trace file would be visualized in Perfetto for the Jacobi example running with 4 MPI ranks (note that only the information about the last rank is “unfolded”). You will observe that MPI calls are automatically instrumented by this tool.

../../../_images/advanced_perfetto_overview.png

Figure 2: Perfetto trace for 4-rank run of the Jacobi example showing host, device and system activity.

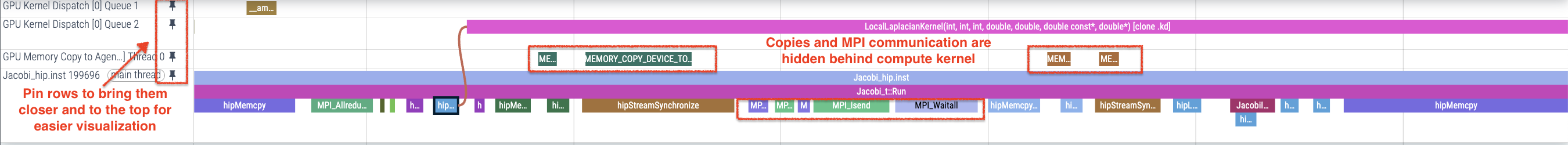

By zooming in/out and navigating the trace with the WASD keys and cursor, you can inspect the analysis of MPI calls, GPU hardware state, GPU kernels, and data transfers as shown in Figure 3. This figure also shows how pinning host and device activity rows can bring them closer for analysis of computation-communication overlap. Load balance across ranks can also be examined in a similar manner.

../../../_images/advanced_perfetto_pinned.png

Figure 3: Perfetto trace showing pinned rows and computation-communication overlap.

A detailed examination of the trace reveals minimal GPU idle time during the main execution phase, excluding initialization and post-processing. This indicates that GPU kernels are likely the performance bottlenecks, and identifying and optimizing these hotspots is crucial. While rocprof-sys-run traces contain this information, the abundance of CPU and GPU hardware profiling data can make further analysis challenging. Therefore, we recommend using rocprofv3 for focused GPU hotspot analysis and rocprof-compute for low-level kernel performance analysis, as described in the following sections.

Collect GPU hotspots#

Collecting a list of GPU hotspots using rocprofv3 for a multi-process run is slightly different because the profiler is launched from within the MPI environment. The following command will provide a summary of kernel activity on each process of the Jacobi run.

srun -N1 -n4 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 rocprofv3 --kernel-trace --stats -T -S -d kernel_hotspots -o jacobi_%rank% -- ./Jacobi_hip -g 2 2

The --kernel-trace option enables the tracing of GPU kernels, generating a trace file per rank, such as kernel_hotspots/jacobi_<rank>_kernel_trace.csv, detailing all the invoked GPU kernels during execution. The --stats option creates a summary file per rank, for example kernel_hotspots/jacobi_<rank>_kernel_stats.csv, which identifies the most time-consuming kernels within the Jacobi application. Use the -S option to print this kernel trace summary in the console and the -T option to truncate kernel names for better readability. An example of this summary, as output by rank 3, is shown below.

    ROCPROFV3 SUMMARY:

    |                   NAME                   |     DOMAIN      |      CALLS      | DURATION (nsec) | AVERAGE (nsec)  | PERCENT (INC) |   MIN (nsec)    |   MAX (nsec)    |     STDDEV      |
    |------------------------------------------|-----------------|-----------------|-----------------|-----------------|---------------|-----------------|-----------------|-----------------|
    | JacobiIterationKernel                    | KERNEL_DISPATCH |            1000 |       559668641 |       5.597e+05 |     44.019012 |          538246 |          586086 |       7.319e+03 |
    | NormKernel1                              | KERNEL_DISPATCH |            1001 |       413389620 |       4.130e+05 |     32.513886 |          399683 |          422084 |       2.800e+03 |
    | LocalLaplacianKernel                     | KERNEL_DISPATCH |            1000 |       276611307 |       2.766e+05 |     21.756010 |          268162 |          284163 |       2.150e+03 |
    | HaloLaplacianKernel                      | KERNEL_DISPATCH |            1000 |        13027966 |       1.303e+04 |      1.024675 |           12320 |           16480 |       3.239e+02 |
    | __amd_rocclr_copyBuffer                  | KERNEL_DISPATCH |            1001 |         5919905 |       5.914e+03 |      0.465612 |            4800 |            7520 |       6.608e+02 |
    | NormKernel2                              | KERNEL_DISPATCH |            1001 |         2802428 |       2.800e+03 |      0.220416 |            2560 |            4000 |       1.704e+02 |
    | __amd_rocclr_fillBufferAligned           | KERNEL_DISPATCH |               1 |            4960 |       4.960e+03 |      0.000390 |            4960 |            4960 |       0.000e+00 |

We will analyze the GPU hotspots in the next section. Before we do that, it may be good to understand if there is any load imbalance on the GPUs used for the job. This information can be obtained using the timeline trace collection feature of rocprofv3. See the command below:

srun -N1 -n4 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 rocprofv3 --runtime-trace -T -d gpu_trace -o jacobi_%rank% --output-format pftrace -- ./Jacobi_hip -g 2 2
cat gpu_trace/*pftrace > jacobi_all.pftrace

The first command saves the timeline traces for each rank separately in gpu_trace/jacobi_<rank>_results.pftrace files. The second command simply merges these traces into a single file.

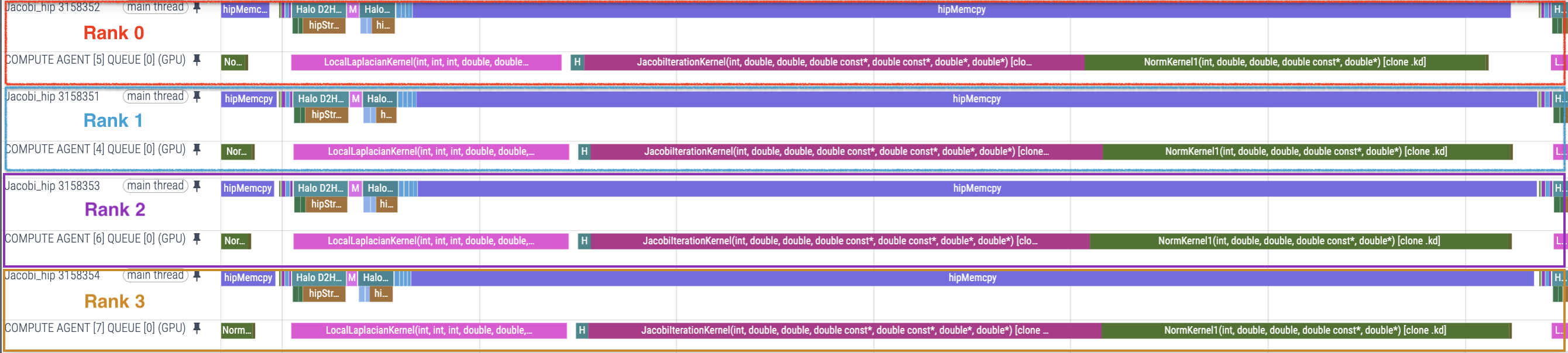

../../../_images/advanced_bl_kernel_hostAPI_mpi4_labeled.png

Figure 4: Jacobi compute kernels, host functions and HIP API calls across four ranks.

Figure 4 above clearly shows that the problem scales well with balanced host function calls and overlapping device compute kernels across the four ranks. The corollary to this observation is that optimizations performed on any kernel on a single rank will scale well to multiple ranks. Therefore, we will focus on optimizing kernels by profiling the Jacobi example with a single rank.

Using rocprof-compute for identifying top kernels#

A similar dispatch summary of top kernels can be collected using rocprof-compute in profile mode. This information can be obtained by using the following series of commands. First, run a single rank job via:

srun -N1 -n1 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 rocprof-compute profile -n jacobi_baseline --device 0 -- ./Jacobi_hip -g 1 1

Next, to identify top kernels from the profiled data, we can use the following analyze mode to compile the collected data into a single report for kernel dispatch information using the --list-stats option:

rocprof-compute analyze -p workloads/jacobi_baseline/MI200/ --list-stats >& list.log

After running the above command, we obtain a list of top kernels (sorted by duration in descending order) at the top of the generated report, followed by every single kernel dispatch in the application.

Detected Kernels (sorted descending by duration)
╒════╤════════════════════════════════════════════════════════════════════════════════════════════════════════╕
│    │ Kernel_Name                                                                                            │
╞════╪════════════════════════════════════════════════════════════════════════════════════════════════════════╡
│  0 │ JacobiIterationKernel(int, double, double, double const*, double const*, double*, double*) [clone .kd] │
├────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│  1 │ NormKernel1(int, double, double, double const*, double*) [clone .kd]                                   │
├────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│  2 │ LocalLaplacianKernel(int, int, int, double, double, double const*, double*) [clone .kd]                │
├────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│  3 │ HaloLaplacianKernel(int, int, int, double, double, double const*, double const*, double*) [clone .kd]  │
├────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│  4 │ __amd_rocclr_copyBuffer.kd                                                                             │
├────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│  5 │ NormKernel2(int, double const*, double*) [clone .kd]                                                   │
├────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│  6 │ __amd_rocclr_fillBufferAligned.kd                                                                      │
╘════╧════════════════════════════════════════════════════════════════════════════════════════════════════════╛

--------------------------------------------------------------------------------
Dispatch list
╒══════╤═══════════════╤════════════════════════════════════════════════════════════════════════════════════════════════════════╤══════════╕
│      │   Dispatch_ID │ Kernel_Name                                                                                            │   GPU_ID │
╞══════╪═══════════════╪════════════════════════════════════════════════════════════════════════════════════════════════════════╪══════════╡
│    0 │             0 │ __amd_rocclr_fillBufferAligned.kd                                                                      │        4 │
├──────┼───────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────┤
│    1 │             1 │ NormKernel1(int, double, double, double const*, double*) [clone .kd]                                   │        4 │
├──────┼───────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────┤
│    2 │             2 │ NormKernel2(int, double const*, double*) [clone .kd]                                                   │        4 │
├──────┼───────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────┤
│    3 │             3 │ __amd_rocclr_copyBuffer.kd                                                                             │        4 │
├──────┼───────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────┤
│    4 │             4 │ LocalLaplacianKernel(int, int, int, double, double, double const*, double*) [clone .kd]                │        4 │
├──────┼───────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────┤
...
├──────┼───────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────┤
│ 6002 │          6002 │ NormKernel2(int, double const*, double*) [clone .kd]                                                   │        4 │
├──────┼───────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────┼──────────┤
│ 6003 │          6003 │ __amd_rocclr_copyBuffer.kd                                                                             │        4 │
╘══════╧═══════════════╧════════════════════════════════════════════════════════════════════════════════════════════════════════╧══════════╛

Note that the kernel ids in the dispatch list above will be important to remember, as we can use the integer identifiers from list.log to analyze specific GPU kernels. For example, the kernels JacobiIterationKernel, NormKernel1, and LocalLaplacianKernel are the three most expensive kernels in terms of cumulative duration and have kernel IDs 0, 1, and 2, respectively. Knowing the dispatch ID of a kernel is required in order to analyze the performance of a specific kernel dispatch.

Understanding kernel performance#

We strongly recommend first reading the previous article for a detailed walkthrough of the process of generating a roofline model to understand kernel limiters at a glance. As a reminder, Python 3.8 or higher is required for the rocprof-compute tool. If the reader is following along directly from the previous article, we concluded that the top two kernels JacobiIterationKernel and NormKernel1 are sufficiently optimized with little room for further improvement. We will therefore focus entirely on the next hotspot: LocalLaplacianKernel.

In a similar fashion to the previous article, let us start by collecting a roofline for the LocalLaplacianKernel to get a visual impression of where it currently stands. To do this, we can invoke rocprof-compute directly and filter specifically for our target kernel on a single device:

srun -N1 -n1 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 rocprof-compute profile -n locallap_roof_baseline --device 0 --roof-only -k LocalLaplacianKernel -- ./Jacobi_hip -g 1 1

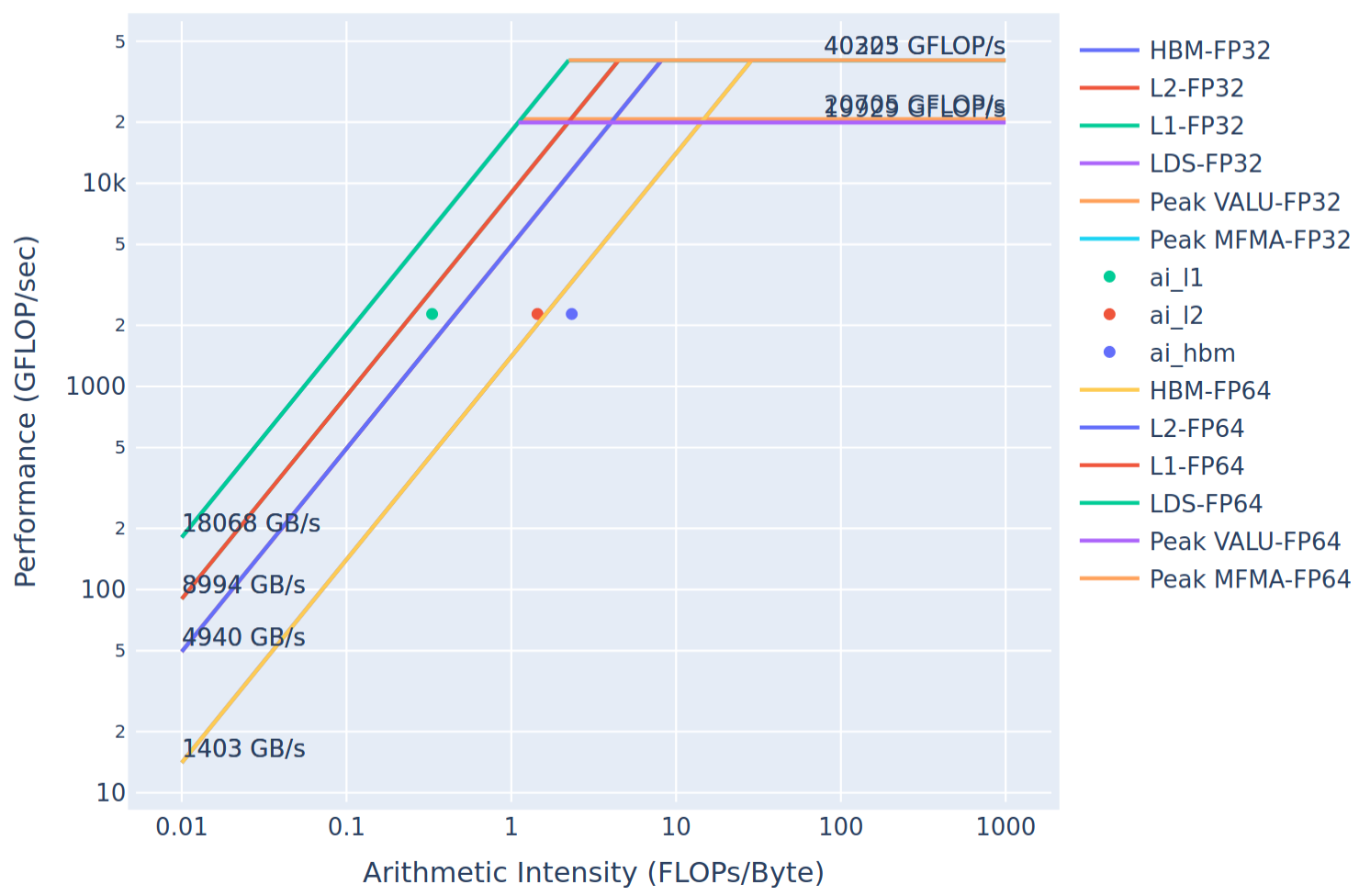

The resulting roofline for the LocalLaplacianKernel kernel is presented below:

../../../_images/empirRoof_locallap_baseline.png

Figure 5: Roofline model for the LocalLaplacianKernel without modifications.

NOTE: In the generated roofline plot, the HBM FP32 and FP64 curves overlap due to a plotting artifact.

This will serve as our baseline (hence the workload name locallap_roof_baseline). As you can see from Figure 5 (focusing on the HBM data point ai_hbm), the kernel measures below that achievable peak bandwidth. This implies that there is room for potential improvement for this memory-bound kernel. Note that here ai_ prefix refers to the arithmetic intensity, which is defined as the ratio of floating point operations to bytes moved.

To get a more detailed summary for the LocalLaplacianKernel, we can use the already generated list.log we obtained when collecting top kernels. Within that file, the first dispatch ID for the LocalLaplacianKernel is dispatch ID 4. We can then use this ID to generate a detailed report for that kernel invocation: simply provide the path to your workload and use the -d option to set the dispatch ID:

rocprof-compute analyze -p workloads/jacobi_baseline/MI200/ -d 4 >& dispatch4.log

Immediately, we can see from the report dispatch4.log that we have isolated the LocalLaplacianKernel kernel and can see the kernel duration in the top kernels section (since there is only one kernel dispatch we are filtering, average and total durations are equivalent):

--------------------------------------------------------------------------------
0. Top Stats
0.1 Top Kernels
╒════╤══════════════════════════════════════════╤═════════╤═══════════╤════════════╤══════════════╤════════╕
│    │ Kernel_Name                              │   Count │   Sum(ns) │   Mean(ns) │   Median(ns) │    Pct │
╞════╪══════════════════════════════════════════╪═════════╪═══════════╪════════════╪══════════════╪════════╡
│  0 │ LocalLaplacianKernel(int, int, int, doub │    1.00 │ 282401.00 │  282401.00 │    282401.00 │ 100.00 │
│    │ le, double, double const*, double*) [clo │         │           │            │              │        │
│    │ ne .kd]                                  │         │           │            │              │        │
╘════╧══════════════════════════════════════════╧═════════╧═══════════╧════════════╧══════════════╧════════╛

So, currently the average duration of LocalLaplacianKernel is 282401 nanoseconds (0.282401 milliseconds).

The report generated by the rocprof-compute analyze command is long and contains many sections. Once you know which metrics you care about, you can use the -b option to display only those selectively. See the documentation for more details.

First, it is important to check if the kernel was launched with the grid and block sizes that you expect. Sections 7.1 and 7.2 provide a summary of wavefront statistics. Use the command below to get the grid size (7.1.0) and workgroup size (7.1.1) for this kernel launch. Note that the grid size metric is the total number of work items launched for this kernel, i.e., the product of workgroup size and work items per workgroup.

rocprof-compute analyze -p workloads/jacobi_baseline/MI200/ -d 4 -b 7.1.0 7.1.1

The report produced by the command above is shown below:

7. Wavefront
7.1 Wavefront Launch Stats
╒═════════════╤════════════════╤═════════════╤═════════════╤═════════════╤════════════╕
│ Metric_ID   │ Metric         │         Avg │         Min │         Max │ Unit       │
╞═════════════╪════════════════╪═════════════╪═════════════╪═════════════╪════════════╡
│ 7.1.0       │ Grid Size      │ 16777216.00 │ 16777216.00 │ 16777216.00 │ Work items │
├─────────────┼────────────────┼─────────────┼─────────────┼─────────────┼────────────┤
│ 7.1.1       │ Workgroup Size │      256.00 │      256.00 │      256.00 │ Work items │
╘═════════════╧════════════════╧═════════════╧═════════════╧═════════════╧════════════╛

Run the following command to get the resources used by the kernel at runtime:

rocprof-compute analyze -p workloads/jacobi_baseline/MI200/ -d 4 -b 7.1.5 7.1.6 7.1.7 7.1.8 7.1.9

Here is the report from the above command:

7.1 Wavefront Launch Stats
╒═════════════╤════════════════════╤═══════╤═══════╤═══════╤════════════════╕
│ Metric_ID   │ Metric             │   Avg │   Min │   Max │ Unit           │
╞═════════════╪════════════════════╪═══════╪═══════╪═══════╪════════════════╡
│ 7.1.5       │ VGPRs              │ 28.00 │ 28.00 │ 28.00 │ Registers      │
├─────────────┼────────────────────┼───────┼───────┼───────┼────────────────┤
│ 7.1.6       │ AGPRs              │  4.00 │  4.00 │  4.00 │ Registers      │
├─────────────┼────────────────────┼───────┼───────┼───────┼────────────────┤
│ 7.1.7       │ SGPRs              │ 16.00 │ 16.00 │ 16.00 │ Registers      │
├─────────────┼────────────────────┼───────┼───────┼───────┼────────────────┤
│ 7.1.8       │ LDS Allocation     │  0.00 │  0.00 │  0.00 │ Bytes          │
├─────────────┼────────────────────┼───────┼───────┼───────┼────────────────┤
│ 7.1.9       │ Scratch Allocation │  0.00 │  0.00 │  0.00 │ Bytes/workitem │
╘═════════════╧════════════════════╧═══════╧═══════╧═══════╧════════════════╛

We see that a total of 32 registers are used for vector compute work (VGPR + AGPR). We also see 16 scalar registers allocated but no local data share or scratch memory allocations.

An interesting metric is the “Instructions per wavefront” (7.2.2) which gives us an approximate number of GPU assembly instructions issued per wavefront.

rocprof-compute analyze -p workloads/jacobi_baseline/MI200/ -d 4 -b 7.2.2

Note that this kernel has approximately 86 instructions per wavefront. We will refer to this again in a later section.

7.2 Wavefront Runtime Stats
╒═════════════╤════════════════════════════╤═══════╤═══════╤═══════╤═════════════════╕
│ Metric_ID   │ Metric                     │   Avg │   Min │   Max │ Unit            │
╞═════════════╪════════════════════════════╪═══════╪═══════╪═══════╪═════════════════╡
│ 7.2.2       │ Instructions per wavefront │ 86.00 │ 86.00 │ 86.00 │ Instr/wavefront │
╘═════════════╧════════════════════════════╧═══════╧═══════╧═══════╧═════════════════╛

At this point, let us look at the kernel in question, which can be found in Laplacian.hip, to see what we are really dealing with:

__global__ void LocalLaplacianKernel(const int localNx,
                                const int localNy,
                                const int stride,
                                const dfloat dx,
                                const dfloat dy,
                                const dfloat *__restrict__ U,
                                      dfloat *__restrict__ AU) {

  const int i = threadIdx.x+blockIdx.x*blockDim.x;
  const int j = threadIdx.y+blockIdx.y*blockDim.y;

  if ((i<localNx) && (j<localNy)) {

    const int id = (i+1) + (j+1)*stride;

    const int id_l = id - 1;
    const int id_r = id + 1;
    const int id_d = id - stride;
    const int id_u = id + stride;

    AU[id] = (-U[id_l] + 2*U[id] - U[id_r])/(dx*dx) +
             (-U[id_d] + 2*U[id] - U[id_u])/(dy*dy);
  }
}

The main computation for AU accesses the device array U multiple times (three times per spatial direction), which will generate global load instructions to retrieve data from HBM unless it is already present in L2 cache. This level of information can be extracted from the System SOL section of the dispatch4.log report. Additionally, we are calculating the finite difference coefficients and the inverse factors representing the widths of the second-order difference quotients used for derivative calculations in both the \(x\) and \(y\) directions.

We can generate the assembly instructions executed by this kernel and resource usage information using a simple compilation command:

hipcc --save-temps -c -g -Rpass-analysis=kernel-resource-usage Laplacian.hip

The flag --save-temps will generate several files, including a file with extension .s that contains the actual assembly instructions executed by the GPU. The flag -Rpass-analysis=kernel-resource-usage will print information related to register and LDS allocation, as well as scratch memory usage.

For example, you will see the following for the LocalLaplacianKernel:

remark: Laplacian.hip:15:0: Function Name: _Z20LocalLaplacianKerneliiiddPKdPd [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     SGPRs: 16 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     VGPRs: 27 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     AGPRs: 0 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     ScratchSize [bytes/lane]: 0 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     Dynamic Stack: False [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     Occupancy [waves/SIMD]: 8 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     SGPRs Spill: 0 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     VGPRs Spill: 0 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     LDS Size [bytes/block]: 0 [-Rpass-analysis=kernel-resource-usage]

This immediately tells us that no spilling to slow scratch memory is occurring due to overuse of registers (expected since the kernel is quite small); a total of 27 vector registers (VGPRs) and 16 scalar registers (SGPRs) are allocated. Observe that the register counts printed in the compile-time report differ from what we saw at runtime in the analysis report of rocprof-compute due to register allocation granularities at runtime. Interestingly, the occupancy is 8 (out of a maximum of 8 per SIMD), which already suggests the kernel is launching enough active wavefronts to saturate GPU activity. However, high occupancy does not mean maximum potential performance.

Following the command, several files will be generated. The relevant file will be Laplacian-hip-amdgcn-amd-amdhsa-gfx90a.s, which will contain the generated ISA for the kernels in Laplacian.hip, as well as metadata for each kernel. For the LocalLaplacianKernel, the metadata summary will look like what was printed to the console by running the hipcc command above:

	.size	_Z20LocalLaplacianKerneliiiddPKdPd, .Lfunc_end0-_Z20LocalLaplacianKerneliiiddPKdPd
	.cfi_endproc
                                        ; -- End function
	.section	.AMDGPU.csdata,"",@progbits
; Kernel info:
; codeLenInByte = 500
; NumSgprs: 16
; NumVgprs: 27
; NumAgprs: 0
; TotalNumVgprs: 27
; ScratchSize: 0
; MemoryBound: 0
; FloatMode: 240
; IeeeMode: 1
; LDSByteSize: 0 bytes/workgroup (compile time only)
; SGPRBlocks: 1
; VGPRBlocks: 3
; NumSGPRsForWavesPerEU: 16
; NumVGPRsForWavesPerEU: 27
; AccumOffset: 28
; Occupancy: 8

One item to make note of is the codeLenInByte, which gives us an approximate measure of number of instructions that were generated for this kernel.

Kernel optimization#

By precomputing the scaling factors for derivative computations on the host, we can reduce the number of instructions executed per wavefront directly within the kernel. This results in a fairly minimal change that effectively avoids performing the calculation of 1.0/(dx*dx) and similar factors by each thread. Since the example is a regular uniform grid, this can easily be incorporated (but may not always be possible in all cases). The changes to the application code are summarized as follows.

First, we precompute the factors in JacobiSetup.hip:

JacobiSetup - Before JacobiSetup - After
/**
 * @brief Generates the 2D mesh
 */
void Jacobi_t::CreateMesh() {

  mesh.N = mesh.Nx * mesh.Ny;

  mesh.Nhalo = 2*mesh.Nx + 2*mesh.Ny;

  //domain dimensions
  mesh.Lx = (X_MAX) - (X_MIN);
  mesh.Ly = (Y_MAX) - (Y_MIN);

  //mesh spacing
  mesh.dx = mesh.Lx/(mesh.Nx*grid.Ncol+1);
  mesh.dy = mesh.Ly/(mesh.Ny*grid.Nrow+1);

/**
 * @brief Generates the 2D mesh
 */
void Jacobi_t::CreateMesh() {

  mesh.N = mesh.Nx * mesh.Ny;

  mesh.Nhalo = 2*mesh.Nx + 2*mesh.Ny;

  //domain dimensions
  mesh.Lx = (X_MAX) - (X_MIN);
  mesh.Ly = (Y_MAX) - (Y_MIN);

  //mesh spacing
  mesh.dx = mesh.Lx/(mesh.Nx*grid.Ncol+1);
  mesh.dy = mesh.Ly/(mesh.Ny*grid.Nrow+1);

  //finite difference inv scaling factors
  mesh.inv_dx_factor = 1.0 / (mesh.dx*mesh.dx);
  mesh.inv_dy_factor = 1.0 / (mesh.dy*mesh.dy);

Note that the mesh_t struct (defined in Jacobi.hpp) will need to be updated with the new attributes inv_dx_factor and inv_dy_factor. The resulting change to the kernel and its associated launch function in Laplacian.hip will be:

LocalLaplacian - Before LocalLaplacian - After
__global__ void LocalLaplacianKernel(const int localNx,
                                const int localNy,
                                const int stride,
                                const dfloat dx,
                                const dfloat dy,
                                const dfloat *__restrict__ U,
                                      dfloat *__restrict__ AU) {

  const int i = threadIdx.x+blockIdx.x*blockDim.x;
  const int j = threadIdx.y+blockIdx.y*blockDim.y;

  if ((i<localNx) && (j<localNy)) {

    const int id = (i+1) + (j+1)*stride;

    const int id_l = id - 1;
    const int id_r = id + 1;
    const int id_d = id - stride;
    const int id_u = id + stride;

    AU[id] = (-U[id_l] + 2*U[id] - U[id_r])/(dx*dx) +
             (-U[id_d] + 2*U[id] - U[id_u])/(dy*dy);
  }
}

void LocalLaplacian(grid_t& grid, mesh_t& mesh,
                    hipStream_t stream,
                    dfloat* d_U,
                    dfloat* d_AU) {

  //there are (Nx-2)x(Ny-2) node on the interior of the mesh
  int localNx = mesh.Nx-2;
  int localNy = mesh.Ny-2;

  int xthreads = 16;
  int ythreads = 16;

  dim3 threads(xthreads,ythreads,1);
  dim3 blocks((localNx+xthreads-1)/xthreads,
              (localNy+ythreads-1)/ythreads, 1);

  hipLaunchKernelGGL(LocalLaplacianKernel,
                     blocks,
                     threads,
                     0, stream,
                     localNx, localNy, mesh.Nx,
                     mesh.dx, mesh.dy,
                     d_U, d_AU);
}

__global__ void LocalLaplacianKernel(const int localNx,
                                const int localNy,
                                const int stride,
                                const dfloat inv_dx_factor,
                                const dfloat inv_dy_factor,
                                const dfloat *__restrict__ U,
                                      dfloat *__restrict__ AU) {

  const int i = threadIdx.x+blockIdx.x*blockDim.x;
  const int j = threadIdx.y+blockIdx.y*blockDim.y;

  if ((i<localNx) && (j<localNy)) {

    const int id = (i+1) + (j+1)*stride;

    const int id_l = id - 1;
    const int id_r = id + 1;
    const int id_d = id - stride;
    const int id_u = id + stride;

    AU[id] = (-U[id_l] + 2*U[id] - U[id_r])*inv_dx_factor +
             (-U[id_d] + 2*U[id] - U[id_u])*inv_dy_factor;
  }
}

void LocalLaplacian(grid_t& grid, mesh_t& mesh,
                    hipStream_t stream,
                    dfloat* d_U,
                    dfloat* d_AU) {

  //there are (Nx-2)x(Ny-2) node on the interior of the mesh
  int localNx = mesh.Nx-2;
  int localNy = mesh.Ny-2;

  int xthreads = 16;
  int ythreads = 16;

  dim3 threads(xthreads,ythreads,1);
  dim3 blocks((localNx+xthreads-1)/xthreads,
              (localNy+ythreads-1)/ythreads, 1);

  hipLaunchKernelGGL(LocalLaplacianKernel,
                     blocks,
                     threads,
                     0, stream,
                     localNx, localNy, mesh.Nx,
                     mesh.inv_dx_factor, mesh.inv_dy_factor,
                     d_U, d_AU);
}

Now that we have a version which no longer computes the scaling factors, we can look at what impact this will produce. First, let us rerun hipcc --save-temps -c -g -Rpass-analysis=kernel-resource-usage Laplacian.hip with our modifications. You should see:

remark: Laplacian.hip:15:0: Function Name: _Z20LocalLaplacianKerneliiiddPKdPd [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     SGPRs: 16 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     VGPRs: 15 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     AGPRs: 0 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     ScratchSize [bytes/lane]: 0 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     Dynamic Stack: False [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     Occupancy [waves/SIMD]: 8 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     SGPRs Spill: 0 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     VGPRs Spill: 0 [-Rpass-analysis=kernel-resource-usage]
remark: Laplacian.hip:15:0:     LDS Size [bytes/block]: 0 [-Rpass-analysis=kernel-resource-usage]

Immediately we can see a reduction in VGPRs, while maintaining the same occupancy. This doesn’t tell us much alone, but if we look at the newly generated Laplacian-hip-amdgcn-amd-amdhsa-gfx90a.s file and focus on the kernel summary, we see a reduction in codeLenInByte by approximately 33%:

	.size	_Z20LocalLaplacianKerneliiiddPKdPd, .Lfunc_end0-_Z20LocalLaplacianKerneliiiddPKdPd
	.cfi_endproc
                                        ; -- End function
	.section	.AMDGPU.csdata,"",@progbits
; Kernel info:
; codeLenInByte = 332
; NumSgprs: 16
; NumVgprs: 15
; NumAgprs: 0
; TotalNumVgprs: 15
; ScratchSize: 0
; MemoryBound: 0
; FloatMode: 240
; IeeeMode: 1
; LDSByteSize: 0 bytes/workgroup (compile time only)
; SGPRBlocks: 1
; VGPRBlocks: 1
; NumSGPRsForWavesPerEU: 16
; NumVGPRsForWavesPerEU: 15
; AccumOffset: 16
; Occupancy: 8

We can now repeat the earlier process by recollecting a new profile using rocprof-compute and measure the impact of this simple change and directly compare with our previous baseline workload:

srun -N1 -n1 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 rocprof-compute profile -n jacobi_hip_invfactors --no-roof -- ./Jacobi_hip -g 1 1
rocprof-compute analyze -p workloads/jacobi_baseline/MI200/ -d 4 -p workloads/jacobi_hip_invfactors/MI200/ -d 4 > compare_dispatch4.log

The output file compare_dispatch4.log will now show a report comparing between the two workloads to see the net impact of the small modification. First, we can check the kernel duration:

--------------------------------------------------------------------------------
0. Top Stats
0.1 Top Kernels
╒════╤══════════════════════════════════════════╤═════════╤════════════╤═══════════╤════════════════════╤════════════╤════════════════════╤══════════════╤════════════════════╤════════╤══════════════╕
│    │ Kernel_Name                              │   Count │ Count      │   Sum(ns) │ Sum(ns)            │   Mean(ns) │ Mean(ns)           │   Median(ns) │ Median(ns)         │    Pct │ Pct          │
╞════╪══════════════════════════════════════════╪═════════╪════════════╪═══════════╪════════════════════╪════════════╪════════════════════╪══════════════╪════════════════════╪════════╪══════════════╡
│  0 │ LocalLaplacianKernel(int, int, int, doub │    1.00 │ 1.0 (0.0%) │ 282401.00 │ 250722.0 (-11.22%) │  282401.00 │ 250722.0 (-11.22%) │    282401.00 │ 250722.0 (-11.22%) │ 100.00 │ 100.0 (0.0%) │
│    │ le, double, double const*, double*) [clo │         │            │           │                    │            │                    │              │                    │        │              │
│    │ ne .kd]                                  │         │            │           │                    │            │                    │              │                    │        │              │
╘════╧══════════════════════════════════════════╧═════════╧════════════╧═══════════╧════════════════════╧════════════╧════════════════════╧══════════════╧════════════════════╧════════╧══════════════╛

You can now see the previous runtime (listed under Sum(ns)) followed immediately by the new kernel duration, which is now approximately 11% faster. Indeed, we can also confirm this by checking the wavefront stats, where we can see that the instructions per wavefront have been reduced by almost 30%:

7.2 Wavefront Runtime Stats
╒═════════════╤════════════════════════════╤═══════════╤════════════════════╤════════════╤═══════════╤════════════════════╤═══════════╤════════════════════╤═════════════════╕
│ Metric_ID   │ Metric                     │       Avg │ Avg                │   Abs Diff │       Min │ Min                │       Max │ Max                │ Unit            │
╞═════════════╪════════════════════════════╪═══════════╪════════════════════╪════════════╪═══════════╪════════════════════╪═══════════╪════════════════════╪═════════════════╡
│ 7.2.0       │ Kernel Time (Nanosec)      │ 282401.00 │ 250722.0 (-11.22%) │  -31679.00 │ 282401.00 │ 250722.0 (-11.22%) │ 282401.00 │ 250722.0 (-11.22%) │ Ns              │
├─────────────┼────────────────────────────┼───────────┼────────────────────┼────────────┼───────────┼────────────────────┼───────────┼────────────────────┼─────────────────┤
│ 7.2.1       │ Kernel Time (Cycles)       │ 426233.00 │ 408845.0 (-4.08%)  │  -17388.00 │ 426233.00 │ 408845.0 (-4.08%)  │ 426233.00 │ 408845.0 (-4.08%)  │ Cycle           │
├─────────────┼────────────────────────────┼───────────┼────────────────────┼────────────┼───────────┼────────────────────┼───────────┼────────────────────┼─────────────────┤
│ 7.2.2       │ Instructions per wavefront │     86.00 │ 62.0 (-27.91%)     │     -24.00 │     86.00 │ 62.0 (-27.91%)     │     86.00 │ 62.0 (-27.91%)     │ Instr/wavefront │
├─────────────┼────────────────────────────┼───────────┼────────────────────┼────────────┼───────────┼────────────────────┼───────────┼────────────────────┼─────────────────┤

Further, the following instruction mix block shows the details of the savings in arithmetic instructions. Particularly note that the transcendental 64-bit floating point instructions (FP64-Trans) value is now zero due to the absence of any inverse computations in LocalLaplacianKernel().

10.2 VALU Arithmetic Instr Mix
╒═════════════╤════════════╤═══════╤═══════════════╤════════════╤═══════╤═══════════════╤═══════╤═══════════════╤════════════════╕
│ Metric_ID   │ Metric     │   Avg │ Avg           │   Abs Diff │   Min │ Min           │   Max │ Max           │ Unit           │
╞═════════════╪════════════╪═══════╪═══════════════╪════════════╪═══════╪═══════════════╪═══════╪═══════════════╪════════════════╡
│ 10.2.10     │ F64-ADD    │  3.00 │ 2.0 (-33.33%) │      -1.00 │  3.00 │ 2.0 (-33.33%) │  3.00 │ 2.0 (-33.33%) │ Instr per wave │
├─────────────┼────────────┼───────┼───────────────┼────────────┼───────┼───────────────┼───────┼───────────────┼────────────────┤
│ 10.2.11     │ F64-MUL    │  4.00 │ 1.0 (-75.0%)  │      -3.00 │  4.00 │ 1.0 (-75.0%)  │  4.00 │ 1.0 (-75.0%)  │ Instr per wave │
├─────────────┼────────────┼───────┼───────────────┼────────────┼───────┼───────────────┼───────┼───────────────┼────────────────┤
│ 10.2.12     │ F64-FMA    │ 14.00 │ 3.0 (-78.57%) │     -11.00 │ 14.00 │ 3.0 (-78.57%) │ 14.00 │ 3.0 (-78.57%) │ Instr per wave │
├─────────────┼────────────┼───────┼───────────────┼────────────┼───────┼───────────────┼───────┼───────────────┼────────────────┤
│ 10.2.13     │ F64-Trans  │  2.00 │ 0.0 (-100.0%) │      -2.00 │  2.00 │ 0.0 (-100.0%) │  2.00 │ 0.0 (-100.0%) │ Instr per wave │
╘═════════════╧════════════╧═══════╧═══════════════╧════════════╧═══════╧═══════════════╧═══════╧═══════════════╧════════════════╛

In addition, we observe a slight increase in L2-Fabric bandwidth, which we use as a proxy for HBM bandwidth (see 2.1 “Speed-of-Light”), and an increase in stalls on requests from L1 to L2 (16.2 L1D Cache Stalls (%)), albeit small. This is because the kernel is now able to issue global loads faster due to fewer arithmetic operations between loads. The Speed-of-Light section below shows the improved HBM bandwidth utilization by about 12%, as well as a significant increase in wavefront occupancy by about 28% possibly due to the reduced tail latency effects from the long transcendental operations, such as the inverse computation mentioned earlier. The reduced instruction count also reflects in the reduced FLOPs count by approximately 73%. The salient details are summarized below:

2.1 Speed-of-Light
╒═════════════╤═══════════════════════════╤═════════╤══════════════════╤════════════╤══════════════════╤══════════╤═════════════════╤═══════════════╤═════════════════╕
│ Metric_ID   │ Metric                    │ Avg     │ Avg              │   Abs Diff │ Unit             │ Peak     │ Peak            │ Pct of Peak   │ Pct of Peak     │
╞═════════════╪═══════════════════════════╪═════════╪══════════════════╪════════════╪══════════════════╪══════════╪═════════════════╪═══════════════╪═════════════════╡
│ 2.1.0       │ VALU FLOPs                │ 2198.14 │ 602.24 (-72.6%)  │   -1595.90 │ Gflop            │ 23936.0  │ 23936.0 (0.0%)  │ 9.18          │ 2.52 (-72.63%)  │
├─────────────┼───────────────────────────┼─────────┼──────────────────┼────────────┼──────────────────┼──────────┼─────────────────┼───────────────┼─────────────────┤
│ 2.1.15      │ Wavefront Occupancy       │ 2533.97 │ 3257.66 (28.56%) │     723.69 │ Wavefronts       │ 3520.0   │ 3520.0 (0.0%)   │ 71.99         │ 92.55 (28.56%)  │
├─────────────┼───────────────────────────┼─────────┼──────────────────┼────────────┼──────────────────┼──────────┼─────────────────┼───────────────┼─────────────────┤
│ 2.1.22      │ L2-Fabric Read BW         │ 475.28  │ 535.34 (12.63%)  │      60.05 │ Gb/s             │ 1638.4   │ 1638.4 (0.0%)   │ 29.01         │ 32.67 (12.65%)  │
├─────────────┼───────────────────────────┼─────────┼──────────────────┼────────────┼──────────────────┼──────────┼─────────────────┼───────────────┼─────────────────┤
│ 2.1.23      │ L2-Fabric Write BW        │ 469.1   │ 525.66 (12.06%)  │      56.56 │ Gb/s             │ 1638.4   │ 1638.4 (0.0%)   │ 28.63         │ 32.08 (12.05%)  │
╘═════════════╧═══════════════════════════╧═════════╧══════════════════╧════════════╧══════════════════╧══════════╧═════════════════╧═══════════════╧═════════════════╛

16.2 L1D Cache Stalls (%)
╒═════════════╤════════════════════════╤═══════╤════════════════╤═══════╤════════════════╤══════════╤════════════════╤═══════╤════════════════╤═══════╤════════════════╕
│ Metric_ID   │ Metric                 │   Min │ Min            │    Q1 │ Q1             │   Median │ Median         │    Q3 │ Q3             │   Max │ Max            │
╞═════════════╪════════════════════════╪═══════╪════════════════╪═══════╪════════════════╪══════════╪════════════════╪═══════╪════════════════╪═══════╪════════════════╡
│ 16.2.1      │ Stalled on L2 Req      │  0.98 │ 2.04 (108.44%) │  0.98 │ 2.04 (108.44%) │     0.98 │ 2.04 (108.44%) │  0.98 │ 2.04 (108.44%) │  0.98 │ 2.04 (108.44%) │
╘═════════════╧════════════════════════╧═══════╧════════════════╧═══════╧════════════════╧══════════╧════════════════╧═══════╧════════════════╧═══════╧════════════════╛

Now let us recollect the roofline for the new implementation of the LocalLaplacian kernel (identical process as presented above). The resulting rooflines are presented in Figure 6, where subfigure (a) shows the roofline for the baseline configuration, and subfigure (b) illustrates the corresponding roofline with the precomputed coefficients. One immediate observation when comparing the two rooflines is that our modification resulted in a reduction in arithmetic intensity. This checks out, as we have entirely removed the computation of the inverse scaling factors. As a result, the kernel is no longer spending cycles computing expensive division operators. Due to the reduction in arithmetic intensity, this shifts the kernel leftward on the roofline model. With the kernel now measuring 11% faster than before and given how close it already is now to the achievable hardware limits, further optimization is likely unnecessary (at least within the context of the Jacobi example). In the context of a more complex application, this process will likely need to be repeated until the desired performance is achieved.

LocalLaplacianKernel - Before LocalLaplacianKernel - After

../../../_images/empirRoof_locallap_baseline.png

Figure 6(a): Roofline model for the LocalLaplacianKernel without modifications (same as Figure 5).

../../../_images/new_roofline_locallaplacian.png

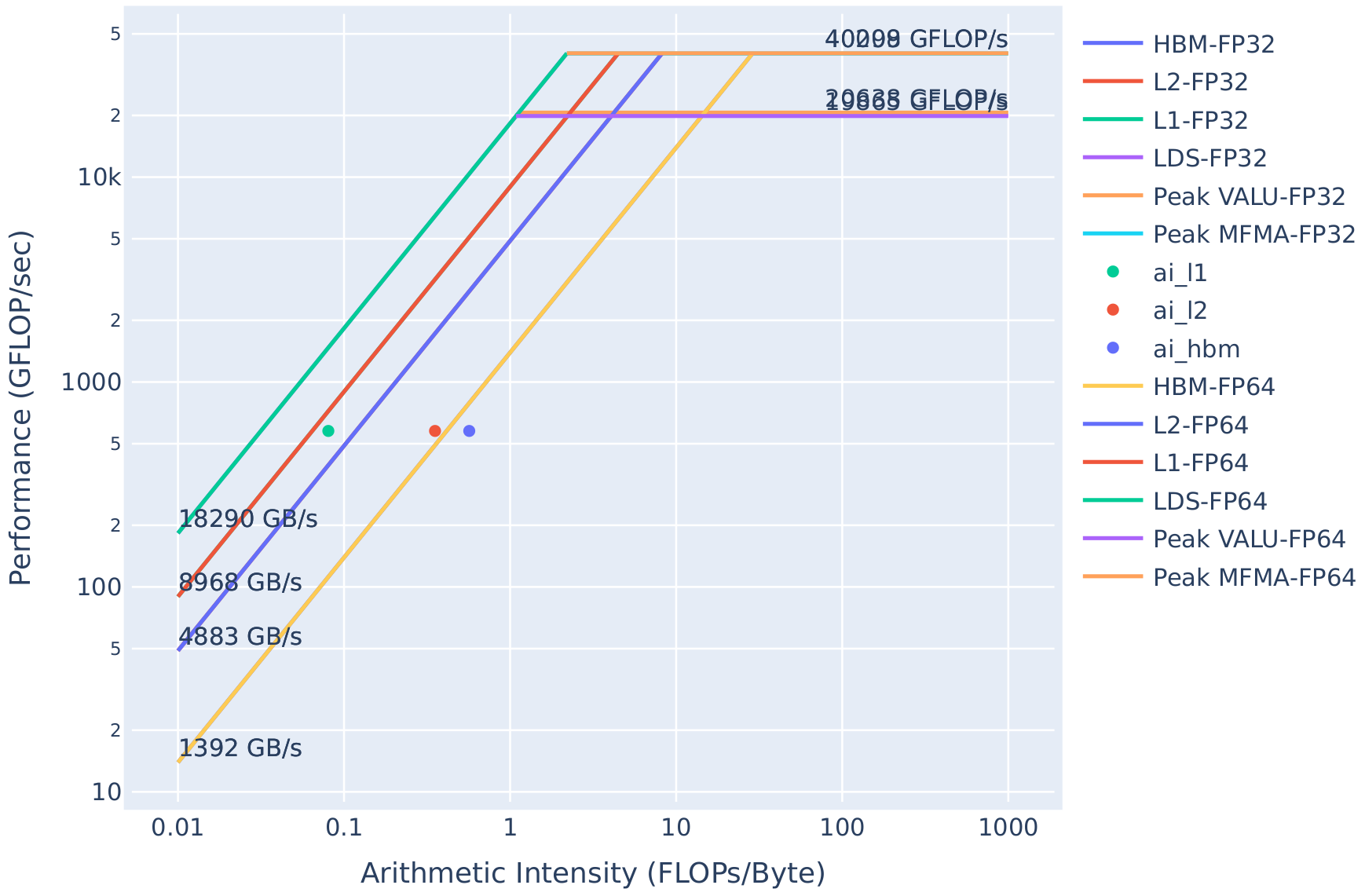

Figure 6(b): Roofline model for the LocalLaplacianKernel with precomputed coefficients.

Bonus step - Studying communication performance#

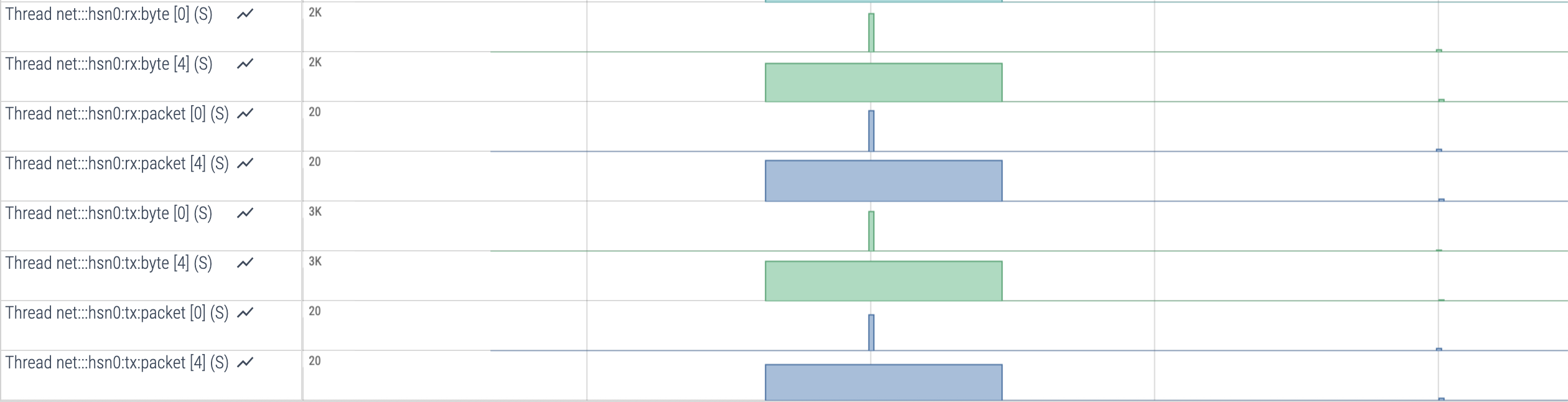

We saw earlier that rocprof-sys can provide insights into MPI communication and any computation-communication overlap. In ROCm 6.4, rocprof-sys was extended to profile network performance with supplementary information. To analyze network performance, you must first identify the Network Interface Card (NIC) ID, which can be accomplished using:

rocprof-sys-avail -H -r net

That command displays all available network counters. The specific output varies depending on the system and its network configuration, but typically begins with:

|---------------------------------|---------|-----------|---------------------------------|
|        HARDWARE COUNTER         | DEVICE  | AVAILABLE |             SUMMARY             |
|---------------------------------|---------|-----------|---------------------------------|

...
| net:::hsn0:rx:byte              |   CPU   |   true    | hsn0 receive byte               |
| net:::hsn0:rx:packet            |   CPU   |   true    | hsn0 receive packet             |
| net:::hsn0:rx:error             |   CPU   |   true    | hsn0 receive error              |
...

Some systems may have multiple NICs, in which case, consult the system configuration documentation or use trial and error to identify the NIC used for the communication when the application runs.

When this is established (in this example hsn0), several parameters need to be enabled in the rocprof-sys config file (~/.rocprofsys.cfg), e.g.:

ROCPROFSYS_NETWORK_INTERFACE=hsn0
ROCPROFSYS_PAPI_EVENTS=net:::hsn0:rx:byte net:::hsn0:rx:packet net:::hsn0:tx:byte net:::hsn0:tx:packet
ROCPROFSYS_TIMEMORY_COMPONENTS=wall_clock network_stats

For this example, we have chosen the network counters typically considered to be the most important: bytes transmitted, bytes received, packets transmitted, and packets received. We have also enabled network_stats to get the network specific output files next to the previously discussed wall clock files. Note that to collect network counters using Process Application Program Interface (PAPI), /proc/sys/kernel/perf_event_paranoid needs to be <= 2 (see ROCPROFSYS_PAPI_EVENTS for more details).

Currently, with ROCm 6.4.0, collecting network data requires enabling CPU sampling. This requirement can be satisfied as follows but it is expected to be removed in a future release:

ROCPROFSYS_SAMPLING_FREQ=100
ROCPROFSYS_USE_SAMPLING=true

Finally, we can profile as usual with the following command, this time running the job on 2 nodes:

srun -N2 -n4 -c1 --gpu-bind=closest --gpus-per-task=1 -t 05:00 rocprof-sys-run -- ./Jacobi_hip -g 2 2

Several new output files are generated per MPI rank, with the most notable being network_stats*.txt and papi_array*.txt, both containing network counter data. This data is also available as separate rows within the timeline Perfetto *.proto files as shown in Figure 7.

../../../_images/advanced_nic_2node.png

Figure 7: Snippet from Perfetto trace showing network traffic.

One can observe the amount of data in bytes and the number of packets sent or received. In this example, analyzing transfer duration or data size is not critical for understanding the overall application performance bottlenecks, but there are other cases where this information can play a crucial role.

Note that collecting hardware counters and the use of the sampling mode can introduce significant profiling overhead. To minimize this overhead, you could decrease the number of collected counters (ROCPROFSYS_PAPI_EVENTS) and decrease the sampling frequency (ROCPROFSYS_SAMPLING_FREQ).

For more information, please check the NIC profiling documentation.

Summary#

In the previous blog post, we explored the profiling process using AMD tools with a single-process GPU application. This post delves into using the same tools for multi-process applications, with an additional focus on more deeply inspecting the performance of kernels. Beyond identifying GPU kernel bottlenecks, we also analyzed communication performance that can help us unlock optimization opportunities for applications at scale.

Useful resources#

The following are links to the GitHub repos and ROCm docs for the tools described above for your quick reference.

Contents
