DGL in Depth: SE(3)-Transformer on ROCm 7#
In this post, we demonstrate how to run the SE(3)-Transformer efficiently with Deep Graph Library (DGL) on AMD ROCm, enabling high-performance 3D graph learning for complex geometric models. This builds on our previous blog, which highlighted DGL’s versatility across diverse graph neural network (GNN) workloads, validating functionality, compatibility, and usability.
SE(3)-Transformer is designed to solve problems involving 3D point clouds or graphs that are used to represent molecules, protein structures, and physical systems; where geometric symmetries are essential. Its key property is equivariance: rotations of the input correspond to predictable transformations of the output. This makes the model robust and aligned with the underlying physical problems, but also demanding in terms of kernel performance and memory usage.
DGL enables high-performance implementations of symmetry-aware 3D models like the SE(3)-Transformer, which were previously limited to NVIDIA GPUs. This port demonstrates that these models can now run efficiently on AMD Instinct GPUs with ROCm, achieving the same model behavior and accuracy without modification.
This post showcases the latest release of the port, which includes the following enhancements:
ROCm branch synced with the latest release in DGL: full feature parity with the main DGL project in the latest release.
Support for ROCm 7: Includes significant kernel performance improvements, expanded hardware support, and updated developer tooling.
GraphBolt integration on ROCm: Enables high-throughput graph sampling and efficient scaling across multiple GPUs, addressing a main bottleneck in large-scale GNN training.
In the sections that follow, you will learn how DGL can power SE(3)-Transformers to solve computationally intensive problems involving 3D equivariant objects, follow a step-by-step guide to build and run examples on AMD hardware and review benchmark results comparing relative performance between NVIDIA H100 and AMD Instinct MI300X GPUs.
SE(3)-Transformers and DGL#
Point clouds appear in numerous domain, ranging from 3D object scans and molecular structures to N-body particle simulations. They vary in both size and sampling density depending on the problem. Determining neural architectures that handle a variable number of points, respect irregular sampling, and remain unaffected by global changes in pose (translations and rotations) is nontrivial. A crucial property for this class of problems is global pose invariance: the model’s output should remain unchanged under any translation or rotation of the 3D point cloud.
SE(3)-Transformer tackles these challenges by enforcing equivariance within the self-attention mechanism. It treats self-attention as a data-dependent filter tailored to sparse, non-voxelized point sets, while explicitly leveraging the symmetries of the underlying task. Constructing an SE(3)-Transformer for point clouds typically involves the following steps: forming a graph over the points, defining equivariant edge functions on that graph, propagating SE(3)-equivariant messages along the edges, and aggregating those messages to produce the final representations. This process involves complex graph representation and manipulation operations that standard deep learning model architectures such as the Transformer are not suitable for.
What You Get with DGL#
Conventional deep learning frameworks shine in domains like vision and language that use dense, grid-structured data, but they falter in domains inherently represented as graphs. DGL bridges this gap by prioritizing the graph as the core abstraction. Instead of squeezing graph computations into generic tensor workflows, it centers nodes, edges, neighborhoods, and connectivity in the programming model. Behind the scenes, DGL compiles these graph-first operations into sparse tensor computations, preserving the speed of frameworks like PyTorch while adding a semantic layer purpose-built for graphs.
By applying DGL to SE(3)-Transformers, you can unlock practical AI for chemistry, biology, and physics—fields where respecting geometry is essential. SE(3)-Transformers provide the mathematical foundation to handle 3D symmetry, and DGL offers the engineering tools to make it usable at scale. DGL is the engine that makes SE(3)-Transformers practical by handling complex graph operations (e.g. traversal, message passing/aggregation), scaling efficiently across multi-GPU clusters to accelerate training, and supporting mixed precision to reduce memory usage without sacrificing accuracy.
Building and Running SE(3)-Transformer: A Step-by-Step Guide#
In this section, you will set up everything needed to run SE(3)-Transformer from scratch. These steps give you a clean, working setup so you can focus on experimenting with the model rather than troubleshooting the environment. You will also run ready-to-use scripts that train, evaluate, and benchmark the model.
Requirements#
To follow the steps in this blog, you need:
AMD Instinct MI300X: See the ROCm system requirements for supported operating systems.
ROCm 7.0.0: See the ROCm installation for Linux for detailed instructions.
Docker: See Install Docker Engine on Ubuntu for installation instructions.
ROCm DGL#
Resources and documentation on ROCm DGL can be found at:
Set up the environment using containers#
To start off, use one of the latest released DGL containers published in Docker Hub configured for ROCm 7.0.0 or ROCm 6.4.3. This ensures you have the right GPU runtime and dependencies preconfigured, saving you the hassle of building everything from scratch.
docker pull rocm/dgl:dgl-2.4.0.amd0_rocm7.0.0_ubuntu24.04_py3.12_pytorch_2.8.0
# start container
docker run -it \
--cap-add=SYS_PTRACE \
--security-opt seccomp=unconfined \
--device=/dev/kfd \
--device=/dev/dri \
--group-add video \
--ipc=host \
--shm-size 64G \
rocm/dgl:dgl-2.4.0.amd0_rocm7.0.0_ubuntu24.04_py3.12_pytorch_2.8.0
Alternatively, if you prefer more control over the environment, you can build the container from scratch by following the instructions in ROCm documentation.
Clone the DeepLearningExamples repository and install dependencies#
Run the following commands to pull the SE(3)-Transformer source code from AMD’s fork of the DeepLearningExamples repository and install dependencies:
cd /src && git clone https://github.com/ROCm/DeepLearningExamples.git
cd DeepLearningExamples/DGLPyTorch/DrugDiscovery/SE3Transformer/
pip install -r requirements.txt
Run the example scripts#
The SE3Transformer folder contains a number of scripts for you to explore different features of SE(3)-Transformer.
Train the SE(3)-Transformer model#
You can run training.py to train an SE(3)-Transformer model using the QM9 dataset, which is a dataset of ~100k organic molecules annotated with quantum chemical properties such as energy levels, dipole moments, and polarizabilities. The goal is to train a model to predict these quantum properties from the 3D structure of the molecule, capitalizing on the relationship between geometric and chemical properties. The rotational and translational equivariance property ensures robust performance regardless of the input molecule’s orientation and position.
You can use all available GPUs to train with data parallelism by invoking it with torch.distributed.run. There is also a wrapper, train.sh, to pass hyperparameters (such as batch size and number of epochs) as arguments to training.py. To train a model using the default settings specified in the shell script, run:
bash scripts/train.sh
On successful training, a similar output will be produced and a model checkpoint saved.
...
Epoch 10: 100%|████████████████████████████████████████████████████████████████████████████████████████████| 417/417 [00:50<00:00, 8.32batch/s]INFO:root:Train loss: 0.07024098187685013
INFO:root:validation MAE: 0.050092310374100585
INFO:root:Saved checkpoint to model_qm9.pth
INFO:root:Training finished successfully
Evaluate the SE(3)-Transformer model#
Use the script inference.py
to evaluate the performance of the trained SE(3)-Transformer model on prediction accuracy. The wrapper predict.sh simplifies the evaluation. To run with default settings:
bash scripts/predict.sh
The prediction results on a test set are shown below. This can be extended to use other datasets as well.
INFO:root:====== SE(3)-Transformer ======
INFO:root:| Inference on the test set |
INFO:root:===============================
Done loading data from cached files.
INFO:root:test MAE: 0.04908362484928228
Benchmark the SE(3)-Transformer model#
Both training.py and inference.py support benchmarking mode via the --benchmark argument. Under the scripts folder, three shell scripts leverage this feature and allow you to benchmark training or inference performance under different scenarios:
benchmark_train.sh- Benchmark the training phase with a single GPU. The script takes two arguments:The first argument represents the batch size. Default is
240.The second argument represents whether automatic mixed precision (AMP) is enabled. Default is
true.
benchmark_train_multi_gpu.sh- Benchmark the training phase with multiple GPUs. The arguments for this script are the same asbenchmark_train.sh. This script usestorch.distributed.runto spawn one training process per available GPU.benchmark_inference.sh- Benchmark the inference phase with a single GPU. The arguments for this script are the same asbenchmark_train.sh.
You can run each script with the desired batch size and AMP configuration. For example, to benchmark training an SE(3)-Transformer model with batch size 120 and AMP enabled on a single GPU, run:
bash scripts/benchmark_train.sh 120
The output will resemble the following example from a run that lasted five epochs:
...
Epoch 5: 100%|██████████| 834/834 [01:44<00:00, 7.99batch/s]
INFO:root:Train loss: 0.12801623344421387
INFO:root:performance mode: train
INFO:root:performance batchsize: 120
INFO:root:performance throughput_train: 1.0653010939258716
INFO:root:performance latency_train_mean: 132.3997756178415
INFO:root:performance total_time_train: 551974.6645507812
INFO:root:performance latency_train_90: 124.12739257812501
INFO:root:performance latency_train_95: 156.11738281249995
INFO:root:performance latency_train_99: 588.3978613281247
INFO:root:Training finished successfully
Reproducing NVIDIA H100 Performance with DGL#
To reproduce NVIDIA H100 results:
Build DGL from source using a release build configuration.
Use commit dmlc/dgl@3d16000, which corresponds to the tip of DGL’s master branch that we integrated into our fork for this release.
Ensure that both MI300X and NVIDIA H100 runs use the same Python version, same PyTorch version, and CUDA 12.8 for consistency across measurements.
Performance comparison against NVIDIA H100#
To compare performance of AMD Instinct MI300X against NVIDIA H100 for SE(3)-Transformer with DGL workloads, benchmark results representing typical scenarios across both platforms need to be collected. Specifically, the following scenarios are considered:
Inference with a single GPU and batch size 400.
Training with a single GPU for batch size 120 and 240.
Training with 8 GPUs for batch size 120 and 240.
The script run_dgl_benchmarks.sh is available to generate benchmark results for these scenarios in one go. To collect the benchmark results, run:
bash run_dgl_benchmarks.sh
Benchmark results will be written to dgl_se3_benchmarks_<hostname>.log. Use the same script to collect results for the same scenarios on NVIDIA H100.
|
|
|

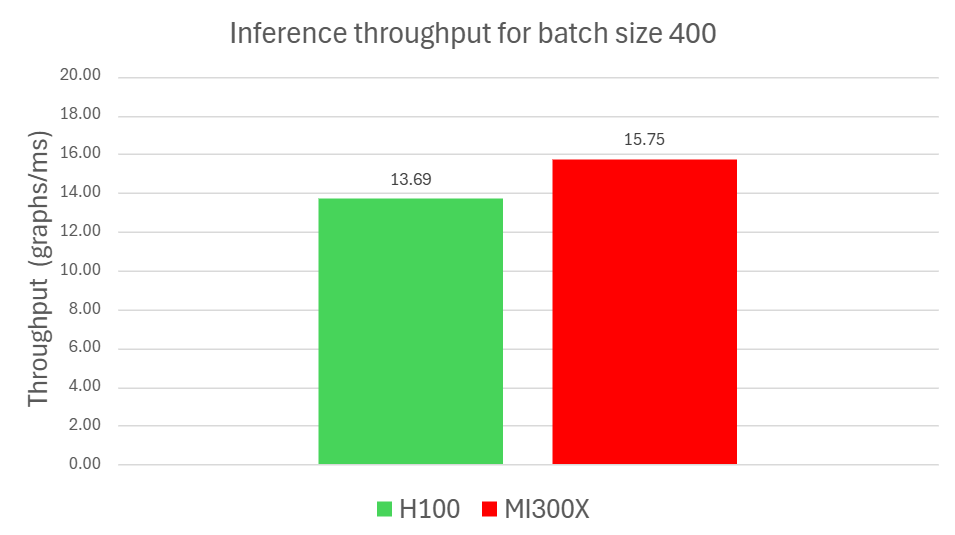

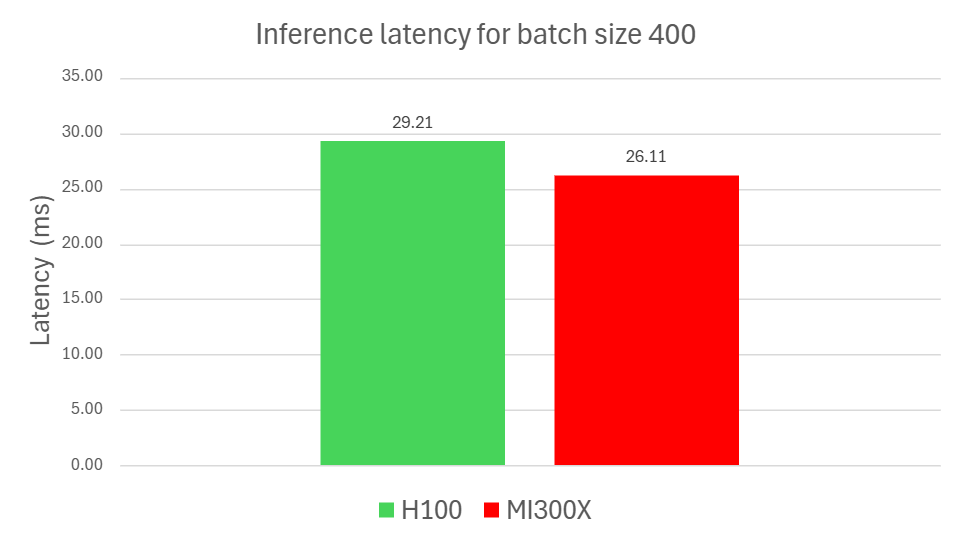

Figure 1. Inference benchmark results for batch size 400
Figure 1 highlights a 10.63% latency improvement and a 14.97% throughput gain for MI300X compared to NVIDIA H100. For reproducibility, all runs were performed with Python 3.12, PyTorch 2.8.0, ROCm 7.0, and CUDA 12.8. Additional details are provided in the footnotes1 and in claim MI300-093.
|
|
|
Figure 2. Training benchmark results with a single GPU for two batch sizes (120 and 240)
Figure 2 highlights a 28.30% latency improvement and a 40.75% throughput gain for MI300X compared to NVIDIA H100 for a batchsize of 120 and a 17.75% latency improvement and 22.82% throughput gain for a batchsize of 240. For reproducibility, all runs were performed with Python 3.12, PyTorch 2.8.0, ROCm 7.0, and CUDA 12.8. Additional details are provided in the footnotes2 and in claim MI300-094.
|
|
|

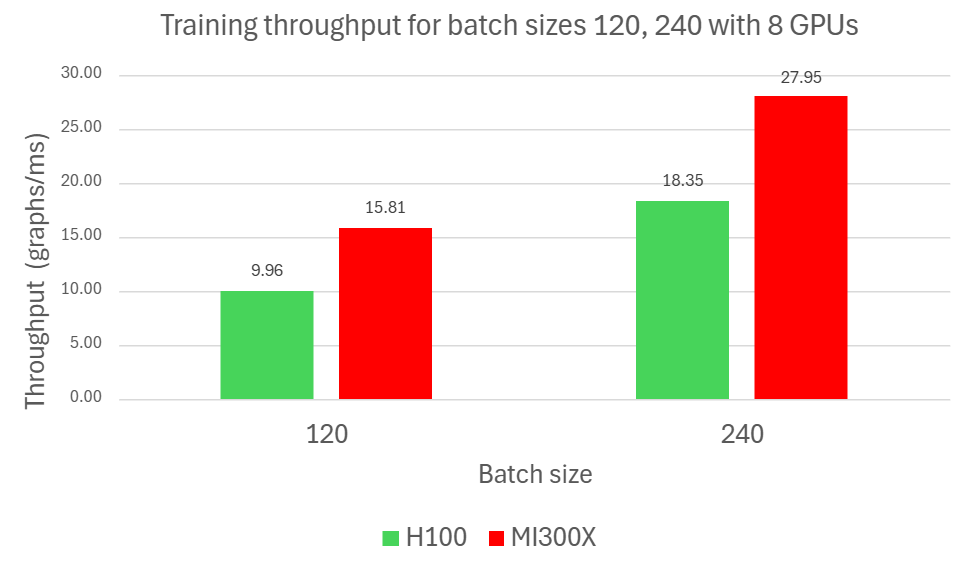

Figure 3. Training benchmark results with eight GPUs for two batch sizes (120 and 240)
Figure 3 highlights a 35.15% latency improvement and a 58.73% throughput gain for MI300X compared to NVIDIA H100 for a batchsize of 120 and a 30.35% latency improvement and 52.28% throughput gain for a batchsize of 240. For reproducibility, all runs were performed with Python 3.12, PyTorch 2.8.0, ROCm 7.0, and CUDA 12.8. Additional details are provided in the footnotes3 and in claim MI300-095.
Summary#
Porting SE(3)-Transformer from CUDA to AMD ROCm with DGL shows that one of the most demanding deep learning models can run efficiently, at scale, on AMD GPUs. By combining DGL’s graph-first abstractions with the ROCm stack, you can train and use equivariant models like SE(3)-Transformers for real-world science problems, from molecular property prediction to accelerating drug discovery.
With the step-by-step guide above, you can build and run SE(3)-Transformers on AMD Instinct GPUs. If your workload involves 3D geometry, molecules, or physics-inspired problems, you don’t have to be locked into a single ecosystem. Furthermore, benchmark results show that MI300X outperforms H100 by up to 35% on latency and 59% on throughput across the scenarios tested. DGL + ROCm lets you bring cutting-edge models to a broader, more flexible GPU platform.
To learn more about setting up DGL and exploring its applications, be sure to check out our earlier blog posts - Graph Neural Networks at Scale: DGL with ROCm on AMD Hardware and DGL in the Real World: Running GNNs on Real Use Cases
