AI Inference on AMD Ryzen™ AI Max Processor

AI Inference on AMD Ryzen™ AI Max Processor#

AI Inference on AMD Ryzen™ AI Max Processor
May 25, 2026 by Chengjia Huang, Daniel Huang, George Wang.
7 min read. | 1614 total words.
Applications & models
LLM
AI

Local large language model (LLM) inference has rapidly evolved, but a persistent limitation remains: model size is constrained by available GPU memory. Discrete GPUs typically offer 8–24 GB of dedicated VRAM, which can limit the size of models that can run without incurring significant quality loss from aggressive quantization. As frontier open-weight models grow past 70B and 100B parameters, this gap is forcing more developers toward multi-GPU rigs or paid cloud endpoints just to evaluate a single checkpoint.

AMD Ryzen™ AI Max+ processors with AMD Radeon™ 8060S integrated graphics change that equation. With up to 128 GB of unified memory shared between CPU and GPU, the entire memory pool is accessible for AI workloads — enabling models with 100 billion or more parameters to run on a single system, with no second card and no cloud bill.

If you build, evaluate, or self-host LLMs on AMD hardware, this blog gives you a concrete, reproducible path to take advantage of that. By the end you will know how to:

  • Set up Ollama on Ubuntu with AMD ROCm™ technology on an AMD Ryzen™ AI Max+ processor-based system;

  • Configure and reason about Unified Memory Architecture (UMA), including the GPU-accessible memory slice;

  • Run Qwen3.5 across three size tiers — 9B (dense), 35B-A3B (MoE), and 122B-A10B (MoE) — and interpret Ollama’s --verbose performance output;

  • Decide which model size best fits your latency, quality, and capacity targets on a single Ryzen™ AI Max+ processor-based system.

The 122B tier is the headline capacity story (weights + runtime on one machine); all generation benchmarks shown later were collected with Ollama on the same AMD Ryzen™ AI Max+ processor-based system.

System Requirements#

Component

Specification

Processor

AMD Ryzen™ AI Max+ 395

Integrated GPU

AMD Radeon™ 8060S Graphics (RDNA 3.5)

Total System Memory

128 GB LPDDR5X (Unified)

GPU-Accessible memory

64 GB (configurable)

Operating System

Ubuntu 24.04 LTS

AMD ROCm™ Version

7.2.1 (HSA Runtime 1.18)

Ollama Version

0.20.x

Understanding Unified Memory Architecture#

Traditional discrete GPUs have dedicated VRAM separate from system RAM. A GPU with 24 GB of VRAM can only hold models that fit within that 24 GB, regardless of how much system RAM is available.

AMD Ryzen™ AI Max+ processors use a Unified Memory Architecture (UMA), where the CPU and GPU share the same physical memory pool. On a 128 GB system, the GPU-accessible portion can be configured to 64 GB or more through BIOS settings, with the remainder available for the operating system and applications.

This means models that would require multiple discrete GPUs — or cloud-hosted instances — can often run on a single AMD Ryzen™ AI Max+ processor-based system; smaller models can use 100% GPU offloading, while the largest models use CPU/GPU mixed loading when they exceed the GPU-accessible slice.

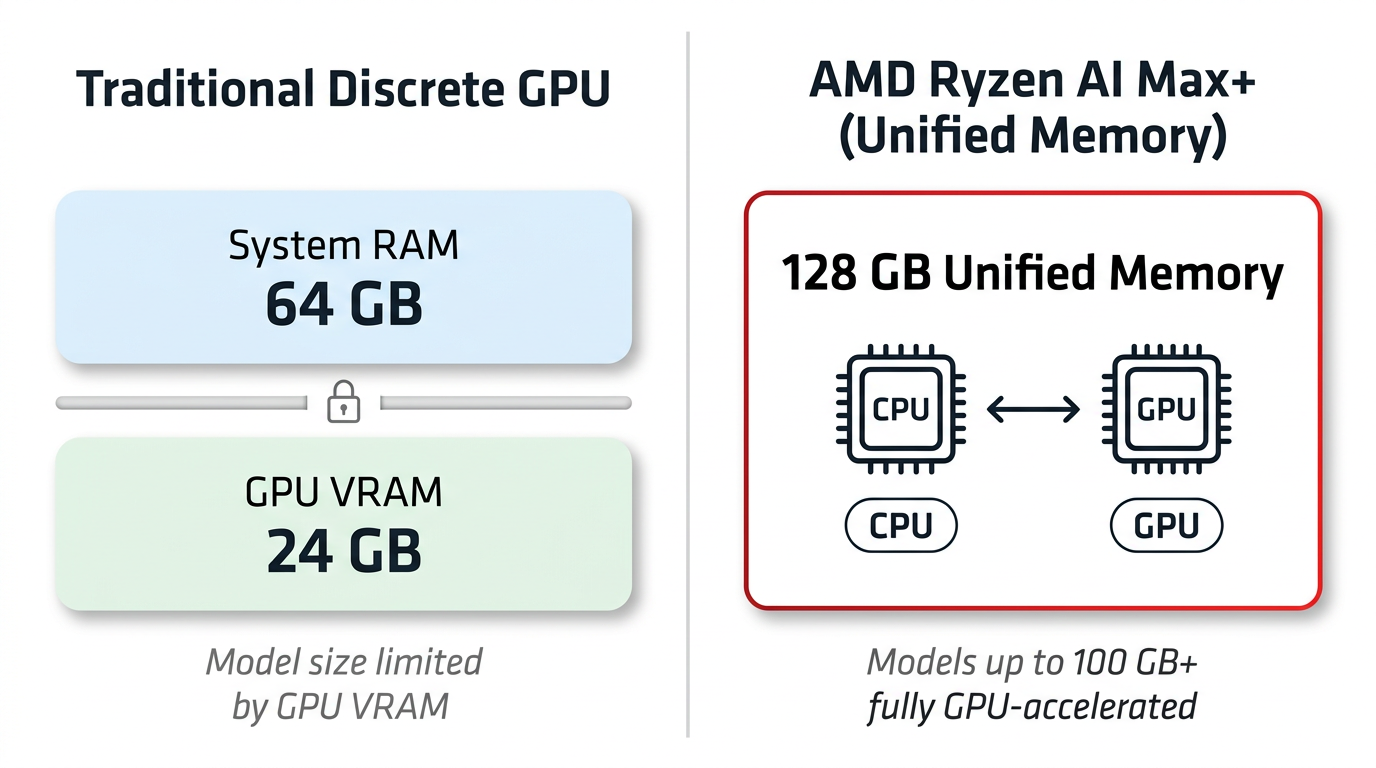

Figure 1 below contrasts unified memory with a typical discrete-VRAM model.

Figure 1: Unified Memory Architecture

Figure 1: Unified Memory Architecture — CPU and GPU share the same 128 GB memory pool, enabling large model inference without dedicated VRAM limitations.

Installation Guide#

Performance Benchmarks#

We tested three Qwen3.5 models at Q4_K_M quantization, representing different points on the size–performance spectrum. The headline result is that 122B-class weights can run locally on AMD Ryzen™ AI Max+ CPU with 128 GB UMA; most of the hard numbers below therefore cover 9B / 35B / 122B end-to-end generation (Ollama). The 9B and 35B models ran with 100% GPU offloading. The 122B model, at 76 GB, exceeds the 64 GB GPU-accessible memory allocation and uses a CPU/GPU mixed loading configuration (61% GPU, 39% CPU), which is automatically managed by Ollama.

Token Generation Speed#

Model

Total Parameters

Active Parameters

Model Size

Generation Speed

Qwen3.5 9B

9B (dense)

9B

6.2 GB

29.84 tok/s

Qwen3.5 35B-A3B

35B (MoE)

3B

20.5 GB

42.04 tok/s

Qwen3.5 122B-A10B

122B (MoE)

10B

76 GB

8.59 tok/s (61% GPU / 39% CPU)

The 35B model achieves a higher generation speed than the 9B model due to its Mixture-of-Experts (MoE) architecture: despite having 35 billion total parameters, only 3 billion are active per token, resulting in faster inference.

The 122B model — at 76 GB — runs with CPU/GPU mixed loading. With a higher GPU memory allocation in the BIOS (depending on system vendor and BIOS support), more layers can be offloaded to the GPU for additional performance.

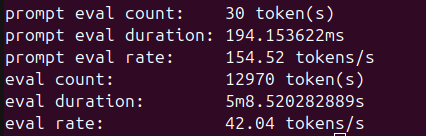

Figure 2 shows verbose generation statistics for the 35B MoE model; Figure 3 shows the 122B MoE model under mixed CPU/GPU loading.

Figure 2: Ollama verbose output — Qwen3.5 35B-A3B

Figure 2: ollama run qwen3.5:35b --verbose generation statistics on AMD Ryzen™ AI Max+ CPU. The 35B MoE model achieves 42.04 tok/s generation throughput and 154.52 tok/s prompt processing with 100% GPU offloading.

Figure 3: Ollama verbose output — Qwen3.5 122B-A10B

Figure 3: ollama run qwen3.5:122b --verbose generation statistics on AMD Ryzen™ AI Max+ CPU. The 122B MoE model achieves 8.59 tok/s generation throughput with CPU/GPU mixed loading (61% GPU / 39% CPU).

The exact hardware and software configuration used for these results is listed under the Test environment disclosure section at the end of this post.

Additional Resources#

Summary#

In this blog you explored what a 128 GB Unified Memory Architecture changes for local LLM inference on AMD Ryzen™ AI Max+ processor. You set up Ollama on Ubuntu with AMD ROCm™ software, then ran Qwen3.5 across 9B, 35B-A3B (MoE), and 122B-A10B (MoE) on a single system — fully GPU-offloaded for the smaller checkpoints, and CPU/GPU mixed for the 76 GB 122B-class model that Ollama transparently splits across the unified memory pool.

Key takeaways:

  1. 128 GB unified memory enables 100B+ parameter models on a single system. The Qwen3.5 122B model, at 76 GB, runs on AMD Ryzen™ AI Max+ processor with CPU/GPU mixed loading.

  2. Setup is straightforward. Ollama provides a single-command installation; smaller checkpoints offload fully to the GPU, while the largest may use CPU/GPU mixed loading when they exceed the GPU-accessible memory slice.

  3. Performance is practical for interactive use. The 35B model delivers ~42 tok/s generation speed, and the 122B model maintains ~8.6 tok/s for conversational workloads.

We are continuing to explore on-device AI on AMD Ryzen™ AI Max+ processors — including memory and BIOS tuning for longer context windows, throughput comparisons across additional model families, and end-to-end developer workflows on the AMD ROCm™ software platform. Stay tuned for upcoming posts from our team. In the meantime, download Ollama and try these Qwen3.5 checkpoints on your own AMD Ryzen™ AI Max+ processor-based system.

Test environment disclosure#

All benchmarks were collected on AMD Ryzen™ AI Max+ 395 with 128 GB unified memory, 64 GB allocated to GPU, running Ubuntu 24.04 LTS, ROCm 7.2.1, and Ollama 0.20.x. Performance may vary based on system configuration, memory allocation, operating system, and software versions.
