Reinforcement Learning from Human Feedback on AMD GPUs with verl and ROCm 7.0.0

Reinforcement Learning from Human Feedback on AMD GPUs with verl and ROCm 7.0.0#

February 12, 2026 by Vicky Tsang, Satya Jandhyala, Yao Liu, Phani Vaddadi, Vish Vadlamani.

6 min read. | 1570 total words.

Applications & models

Reinforcement Learning, Fine-Tuning, AI/ML

In our previous blog post, we introduced Volcano Engine Reinforcement Learning for LLMs (verl) 0.3.0.post0 with ROCm 6.2 and vLLM 0.6.4. In this blog post, we will provide you with an overview of verl 0.6.0 with ROCm 7.0.0 and vLLM 0.11.0.dev and its benefits for large-scale reinforcement learning from human feedback (RLHF). You will also learn about the modifications made to optimize verl performance on AMD Instinct™ MI300X GPUs. Next, you will walk through building the Docker image on your system, along with training scripts for single-node and multi-node setups. Lastly, we provide you with verl performance results, focusing on throughput and convergence accuracy achieved on AMD Instinct MI300X GPUs. Follow this guide to get started with verl on AMD Instinct GPUs and accelerate your RLHF training with ROCm-optimized performance.

Introducing verl: A scalable RLHF training framework#

To develop intelligent large-scale foundation models, post-training is just as important as pre-training. Among post-training paradigms, reinforcement learning from human feedback (RLHF) has emerged as a critical technique, though its full potential has not been thoroughly explored until now. Since the release of ChatGPT at the end of 2022, the effectiveness of RLHF in enhancing large-scale pre-trained language models (LLMs) has become increasingly evident. More recently, the release of several O1/R1-series models trained with RLHF has once again highlighted its performance, particularly in improving reasoning capabilities. Despite growing recognition of its importance, there remains a lack of mature, open-source RLHF frameworks, particularly those capable of supporting training with both high efficiency and scalability.

Building on this foundation, the open-source (Volcengine) community introduces verl, an efficient RLHF framework designed for scalable, high-performance training. It integrates high-throughput LLM training engines such as FSDP and Megatron, with advanced inference engines like vLLM and SGLang. It also uses Ray as part of a hybrid orchestration engine to schedule and coordinate training and inference tasks in parallel, enabling optimized resource utilization and overlap between these phases. This dynamic resource allocation strategy significantly improves overall system efficiency.

Enable verl on AMD Instinct GPUs with ROCm and Docker#

To support AMD Instinct GPUs and ROCm 7.0.0, AMD provides prebuilt Docker images to simplify the verl training environment setup.

To get started with running verl on AMD Instinct GPUs, follow these steps:

Single-node training#

First, launch the verl Docker image:

docker run --rm -it \
        --device /dev/dri \
        --device /dev/kfd \
        -p 8265:8265 \
        --group-add video \
        --cap-add SYS_PTRACE \
        --security-opt seccomp=unconfined \
        --privileged \
        -v $HOME/.ssh:/root/.ssh \
        -v $HOME:$HOME \
        --shm-size 128G \
        -w $PWD \
        rocm/verl:verl-0.6.0.amd0_rocm7.0_vllm0.11.0.dev

Prepare data#

python3 examples/data_preprocess/gsm8k.py --local_dir ../data/gsm8k

Load models#

python3 -c "import transformers;transformers.pipeline('text-generation', model='Qwen/Qwen2-7B-Instruct')"
python3 -c "import transformers;transformers.pipeline('text-generation', model='deepseek-ai/deepseek-llm-7b-chat')"

Configure settings#

MODEL_PATH="Qwen/Qwen2-7B-Instruct"
train_files="../data/gsm8k/train.parquet"
test_files="../data/gsm8k/test.parquet"

You can choose any model supported by verl and assign it to the $MODEL_PATH variable. In this example, the Qwen/Qwen2-7B-Instruct and deepseek-ai/deepseek-llm-7b-chat models are used. For datasets, you may use any dataset of your choice, just ensure it is converted into the required format. In this example, GSM8K is used, as verl provides preprocessing code to format it appropriately.

Set environment variables#

export HIP_VISIBLE_DEVICES=0,1,2,3,4,5,6,7
GPUS_PER_NODE=8

You must assign HIP_VISIBLE_DEVICES. This is the most crucial step, and the only difference compared to running the model on CUDA-based PyTorch.

Then, you can run the RLHF algorithms provided by verl, including Proximal Policy Optimization (PPO), Group Relative Policy Optimization (GRPO), ReMax, REINFORCE++, RLOO, PRIME, and others. In this example, we demonstrate the use of PPO and GRPO to illustrate the workflow.

PPO example:

MODEL_PATH="Qwen/Qwen2-7B-Instruct" # You can use: deepseek-ai/deepseek-llm-7b-chat
TP_VALUE=2 #If deepseek, set TP_VALUE=4
INFERENCE_BATCH_SIZE=32 #If deepseek, set INFERENCE_BATCH_SIZE=32
GPU_MEMORY_UTILIZATION=0.4 #If deepseek, set GPU_MEMORY_UTILIZATION=0.4

python3 -m verl.trainer.main_ppo  \
        data.train_files=$train_files  \
        data.val_files=$test_files  \
        data.train_batch_size=1024 \
        data.max_prompt_length=1024 \
        data.max_response_length=512 \
        actor_rollout_ref.model.path=$MODEL_PATH \
        actor_rollout_ref.actor.optim.lr=1e-6 \
        actor_rollout_ref.model.use_remove_padding=True \
        actor_rollout_ref.actor.ppo_mini_batch_size=256 \
        actor_rollout_ref.actor.ppo_micro_batch_size_per_gpu=16 \
        actor_rollout_ref.model.enable_gradient_checkpointing=True \
        actor_rollout_ref.actor.fsdp_config.param_offload=False \
        actor_rollout_ref.actor.fsdp_config.optimizer_offload=False \
        actor_rollout_ref.rollout.log_prob_micro_batch_size_per_gpu=$INFERENCE_BATCH_SIZE \
        actor_rollout_ref.rollout.tensor_model_parallel_size=$TP_VALUE \
        actor_rollout_ref.rollout.name=vllm  \
        actor_rollout_ref.rollout.gpu_memory_utilization=$GPU_MEMORY_UTILIZATION \
        actor_rollout_ref.ref.log_prob_micro_batch_size_per_gpu=$INFERENCE_BATCH_SIZE \
        actor_rollout_ref.ref.fsdp_config.param_offload=True \
        critic.optim.lr=1e-5 \
        critic.model.use_remove_padding=True \
        critic.model.path=$MODEL_PATH \
        critic.model.enable_gradient_checkpointing=True \
        critic.ppo_micro_batch_size_per_gpu=32 \
        critic.model.fsdp_config.param_offload=False \
        critic.model.fsdp_config.optimizer_offload=False \
        algorithm.kl_ctrl.kl_coef=0.001 \
        trainer.critic_warmup=0 \
        trainer.logger=['console','wandb'] \
        trainer.project_name='ppo_qwen_llm' \
        trainer.experiment_name='ppo_trainer/run_qwen2-7b.sh_default' \
        trainer.n_gpus_per_node=8 \
        trainer.nnodes=1 \
        trainer.save_freq=-1 \
        trainer.test_freq=10 \
        trainer.total_epochs=50

GRPO example:

MODEL_PATH="Qwen/Qwen2-7B-Instruct" #  You can use: deepseek-ai/deepseek-llm-7b-chat
TP_VALUE=2 #If deepseek, set TP_VALUE=2
INFERENCE_BATCH_SIZE=40 #If deepseek, set INFERENCE_BATCH_SIZE=110
GPU_MEMORY_UTILIZATION=0.4 #If deepseek, set GPU_MEMORY_UTILIZATION=0.6

python3 -m verl.trainer.main_ppo \
        algorithm.adv_estimator=grpo \
        data.train_files=$train_files \
        data.val_files=$test_files \
        data.train_batch_size=1024 \
        data.max_prompt_length=512 \
        data.max_response_length=1024 \
        actor_rollout_ref.model.path=$MODEL_PATH \
        actor_rollout_ref.actor.optim.lr=1e-6 \
        actor_rollout_ref.model.use_remove_padding=True \
        actor_rollout_ref.actor.ppo_mini_batch_size=256 \
        actor_rollout_ref.actor.ppo_micro_batch_size_per_gpu=80 \
        actor_rollout_ref.actor.use_kl_loss=True \
        actor_rollout_ref.actor.kl_loss_coef=0.001 \
        actor_rollout_ref.actor.kl_loss_type=low_var_kl \
        actor_rollout_ref.model.enable_gradient_checkpointing=True \
        actor_rollout_ref.actor.fsdp_config.param_offload=False \
        actor_rollout_ref.actor.fsdp_config.optimizer_offload=False \
        actor_rollout_ref.rollout.log_prob_micro_batch_size_per_gpu=$INFERENCE_BATCH_SIZE \
        actor_rollout_ref.rollout.tensor_model_parallel_size=$TP_VALUE \
        actor_rollout_ref.rollout.name=vllm \
        actor_rollout_ref.rollout.gpu_memory_utilization=$GPU_MEMORY_UTILIZATION \
        actor_rollout_ref.rollout.n=5 \
        actor_rollout_ref.ref.log_prob_micro_batch_size_per_gpu=$INFERENCE_BATCH_SIZE \
        actor_rollout_ref.ref.fsdp_config.param_offload=True \
        algorithm.kl_ctrl.kl_coef=0.001 \
        trainer.critic_warmup=0 \
        trainer.logger=['console','wandb'] \
        trainer.project_name='grpo_qwen_llm' \
        trainer.experiment_name='grpo_trainer/run_qwen2-7b.sh_default' \
        trainer.n_gpus_per_node=8 \
        trainer.nnodes=1 \
        trainer.save_freq=-1 \
        trainer.test_freq=10 \
        trainer.total_epochs=50

Multi-node training#

After you successfully run single-node training, scale to multi-node training on AMD clusters using the Slurm workload manager by following the provided multi-node training script.

This guide walks you through each step of the process, from Slurm configuration, environment setup, and Docker or Podman container setup to Ray cluster initialization, data preprocessing, model setup, and training launch, to help you smoothly run multi-node training.

Launch multi-node training#

sbatch slurm_script.sh

For more detailed guidance, comprehensive single-node and multi-node training tutorials are available in the official verl upstream GitHub introduction and documentation.

Performance benchmarks: Throughput and convergence on MI300X vs. H100#

In this section, we run verl (v0.6.0) and present throughput and convergence accuracy on NVIDIA H100 and AMD Instinct MI300X GPUs using the same hyperparameters. As you can see below, the MI300X [1][2] platform demonstrated higher throughput in both models compared to the H100 platform, with comparable convergence accuracy.

Recent advancements to the verl open-source library on AMD ROCm™ software further demonstrate how AMD Instinct™ GPUs offer leadership in open-source LLM training performance. With ROCm 7, AMD Instinct MI300X systems deliver state-of-the-art throughput, outperforming the NVIDIA H100 across multiple models and configurations.

verl_ppo

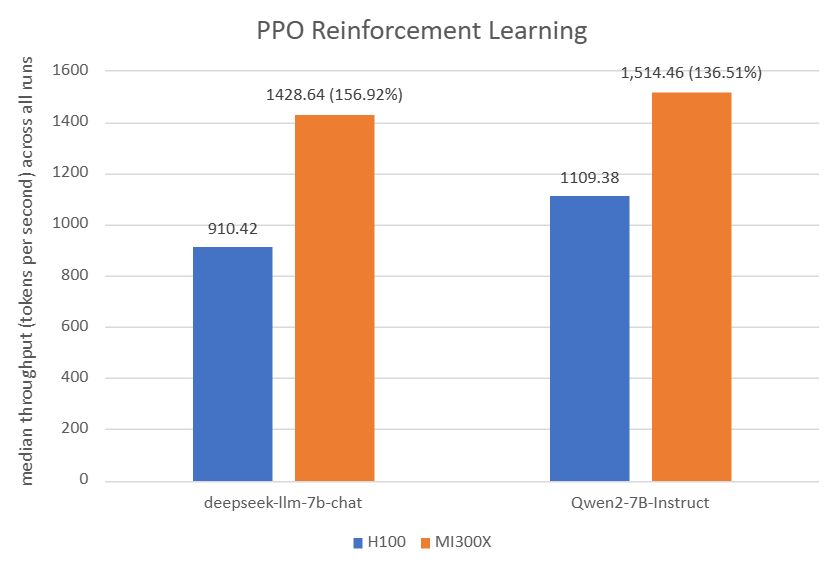

Figure 1: For PPO Reinforcement Learning: The AMD Instinct MI300X 8x GPU also offers up to 56% higher PPO training throughput vs. NVIDIA H100 on deepseek-llm-7b-chat with TP_VALUE of 4, INFERENCE_BATCH_SIZE of 32, and GPU_MEMORY_UTILIZATION of 0.4[3]. The AMD Instinct MI300X 8x GPU offers up to 36% higher PPO training throughput vs. NVIDIA H100 on Qwen2-7B-Instruct with TP_VALUE of 2, INFERENCE_BATCH_SIZE of 32, and GPU_MEMORY_UTILIZATION of 0.4. [4]

Platform	Model	TP_VALUE	INFERENCE_BATCH_SIZE	GPU_MEMORY_UTILIZATION	Throughput (tokens/GPU/second)	Convergence (accuracy)
H100[3]	deepseek-llm-7b-chat	4	32	0.4	910.42[1]	68.30[2]
MI300X [3]	deepseek-llm-7b-chat	4	32	0.4	1,428.64[1]	69.00[2]
–	–	–	–	–	–	–
H100[4]	Qwen2-7B-Instruct	2	32	0.4	1,109.38[1]	86.27[2]
MI300X [4]	Qwen2-7B-Instruct	2	32	0.4	1,514.46[1]	85.06[2]

Table 1: PPO hyperparameters and throughput/convergence results[4][3]

verl_grpo

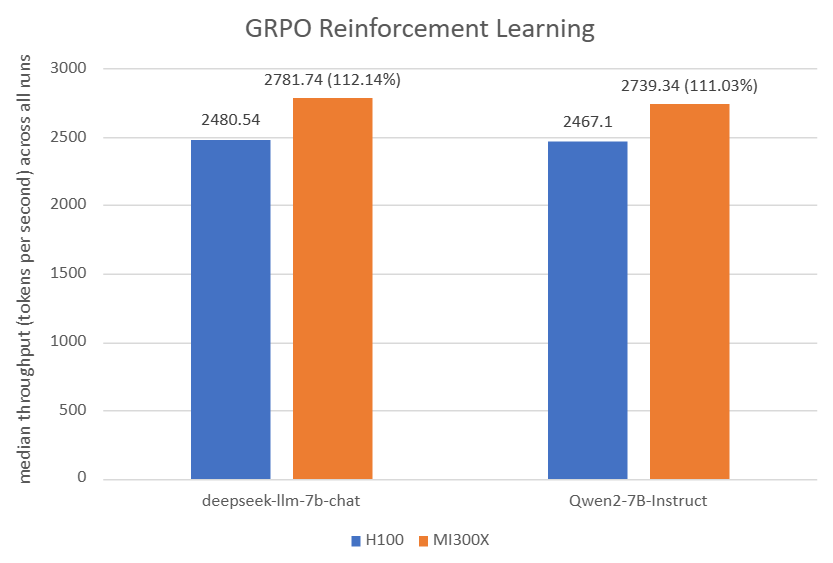

Figure 2: For GRPO Reinforcement Learning: The AMD Instinct MI300X 8x GPU also offers up to 12% higher GRPO training throughput vs. NVIDIA H100 on deepseek-llm-7b-chat with TP_VALUE of 2, INFERENCE_BATCH_SIZE of 110, and GPU_MEMORY_UTILIZATION of 0.4[5]. The AMD Instinct MI300X 8x GPU offers up to 11% higher GRPO training throughput vs. NVIDIA H100 on Qwen2-7B-Instruct with TP_VALUE of 2, INFERENCE_BATCH_SIZE of 40, and GPU_MEMORY_UTILIZATION of 0.6. [6]

Platform	Model	TP_VALUE	INFERENCE_BATCH_SIZE	GPU_MEMORY_UTILIZATION	Throughput (tokens/GPU/second)	Convergence (accuracy)
H100[5]	deepseek-llm-7b-chat	2	110	0.4	2,480.54[1]	70.05[2]
MI300X [5]	deepseek-llm-7b-chat	2	110	0.4	2,781.74[1]	66.11[2]
–	–	–	–	–	–	–
H100[6]	Qwen2-7B-Instruct	2	40	0.6	2,467.10[1]	88.93[2]
MI300X [6]	Qwen2-7B-Instruct	2	40	0.6	2,739.34[1]	89.46[2]

Table 2: GRPO hyperparameters and throughput/convergence results[6][5]

Summary#

As RLHF becomes a cornerstone in fine-tuning LLMs, verl offers a scalable, open-source solution optimized for AMD Instinct GPUs with full ROCm support. This blog walks you through setting up verl using Docker, configuring training scripts for single-node and multi-node clusters, and evaluating performance (throughput and accuracy) across leading models on both MI300X and H100 platforms. We hope this work encourages more AMD Instinct users to adopt verl for RLHF training and contribute to the development of more capable foundation models.

Acknowledgements#

The authors would also like to acknowledge the broader AMD team whose contributions were instrumental in enabling verl on ROCm 7.0.0: Yusheng Su, Xiaodong Yu, Gowtham Ramesh, Jiang Liu, Zhenyu Gu, Zicheng Liu, Emad Barsoum, Arhat Kobawala, Marco Grond, Lillian Zheng, Ramesh Mantha, Wenbo Shao, Mukhil Azhagan Mallaiyan Sathiaseelan, Pei Zhang, Matthew Steggink, Gazi Rashid, Bhavesh Lad, Pankaj Gupta, Aakash Sudhanwa, Joseph Macaranas, Kiran Thumma, Ian Dass, Ram Seenivasan, Amit Kumar, Anisha Sankar, Saad Rahim, Ehud Sharlin, Liam Berry, Cindy Lee, Lindsey Brown, Catherine Ortega, Ashley Cowart, Joyce Zhang, Keith Anderson, Lorelei Misajlovich, Jennifer Barry.

System configuration#

AMD Instinct MI300X platform
System Model: AS -8125GS-TNMR2
CPU: AMD EPYC 9654 96-Core Processor
NUMA: 2 NUMA nodes per socket. NUMA auto-balancing disabled
Memory: 1.5 TB (24 × 64 GiB SK Hynix HMCG94MEBRA123N DDR5 4800 MT/s)
Disk: 3.5 TB SAMSUNG MZQL23T8HCLS-00A07
GPU: 8 x AMD Instinct MI300X, 192 GB HBM3 750 W
Host OS: Ubuntu 24.04 LTS
System BIOS Vendor: American Megatrends International, LLC.
Host GPU Driver (ROCm): 7.0.1
