Enabling DeepSeek-V4-Flash Training on AMD Instinct MI355X GPUs with Primus

September 03, 2026 by Lihuan Zhang, Wen Xie, Yanyuan Qin, Zhen Huang, Ruibin Zhang, Kyle Zhao, Cheng Yao, Xiaoming Peng, Xiaobo Chen, Anshu Raina, Yao Fu, Zhaodong Bing, Fuwei Yang, Zhenyu Gu.

22 min read. | 5414 total words.

Software tools & optimizations

Optimization, AI/ML, Performance, PyTorch, LLM

AI, Developers

DeepSeek-AI released the DeepSeek-V4 series on April 24, 2026: a preview pair of MIT-licensed Mixture-of-Experts models, with DeepSeek-V4-Flash at 284B total parameters (13B activated) and a one-million-token context window. Flash pushes sparse attention further than any open-weight model before it: its 43 transformer layers interleave three different attention types, each layer sits inside a hyper-connection block rather than a plain residual, and every token is routed through 256 experts. Each of those choices breaks an assumption baked into stock Megatron-LM training code.

This blog walks you through enabling end-to-end DeepSeek-V4-Flash pretraining in Primus on AMD Instinct™ MI355X GPUs. You will learn what the architecture looks like layer by layer, which knobs Primus exposes to configure it, and — where most of the engineering went — the kernel work that took the model from it runs to it runs fast. All of it is BF16 training — see the endnotes for what that leaves out. Every config, launch script, and benchmark referenced here ships in the open-source Primus repository, so you can reproduce the run yourself.

The DeepSeek-V4-Flash architecture

DeepSeek-V4-Flash keeps the skeleton you already know from DeepSeek-V3 — a Transformer stack with DeepSeekMoE feed-forward layers and a Multi-Token Prediction head. What changed sits underneath: how attention reads the KV cache, and how residual connections carry signal between blocks. Pretraining also moves to the Muon optimizer for most parameters, keeping AdamW for the embedding, the prediction head, and the RMSNorm weights.

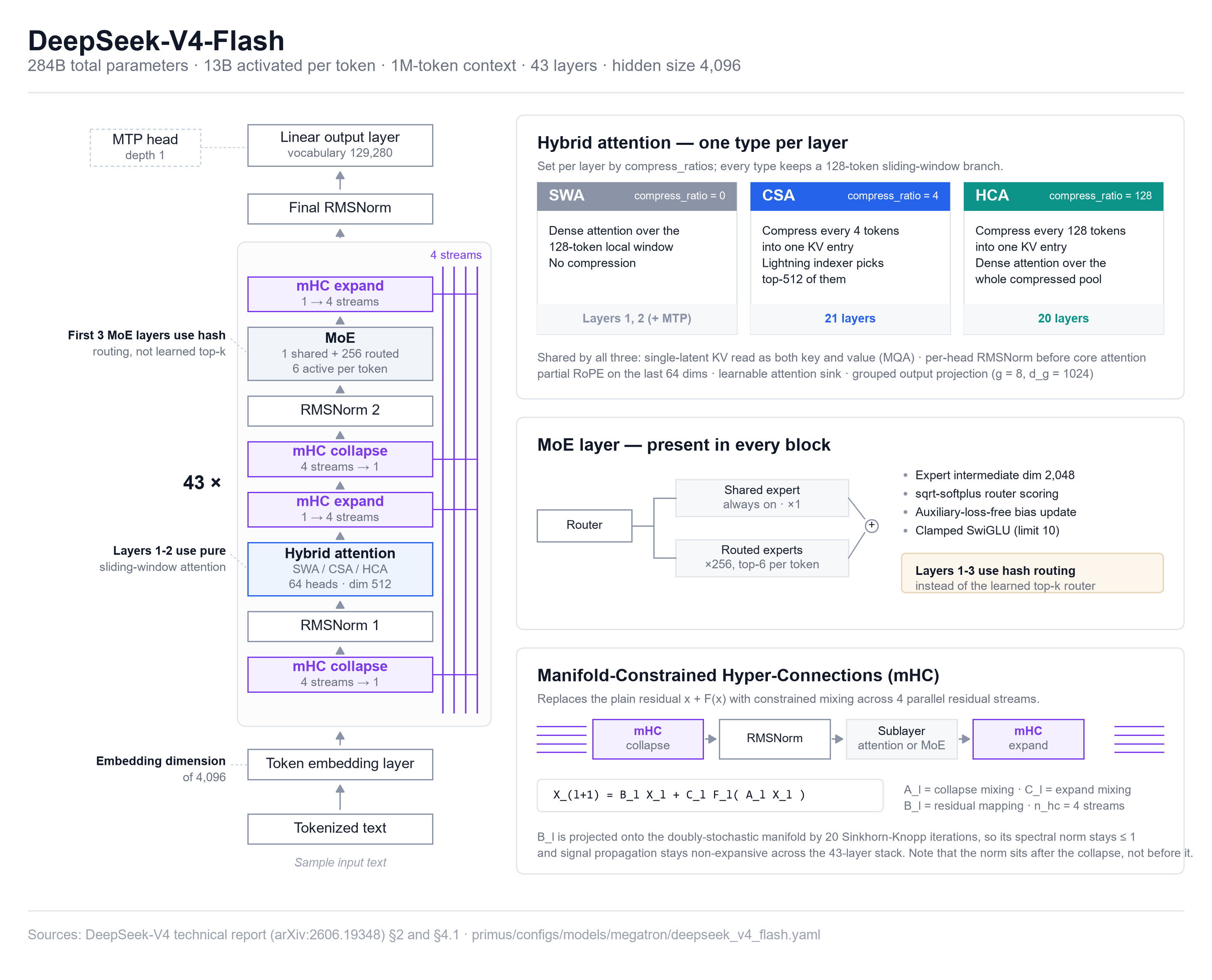

Figure 1: DeepSeek-V4-Flash architecture — one transformer block, with detail panels for the three attention types, the MoE layer, and mHC.

Figure 1 shows a single block. The overall shape is familiar: 43 layers, hidden size 4,096, a 129,280-token vocabulary, and a MoE layer in every block with one shared expert alongside 256 routed experts, six of which activate per token. Two details already depart from V3 — every sub-layer is wrapped in manifold-constrained hyper-connections (mHC) rather than a plain residual, and the first three MoE layers route tokens by hash instead of through the learned router.

The attention module is where most of the change lives. All 64 query heads read a single 512-dimensional latent that serves as both key and value, making the layer multi-query rather than multi-head. Queries arrive through a low-rank path of rank 1,024 that the sparse-selection indexer shares. And because 64 heads of 512 dimensions is a wide tensor to project back down to 4,096, the output projection splits into 8 groups that each pass through a 1,024-dimensional bottleneck.

Three attention types, interleaved

V4’s headline change is that not every layer attends the same way. A per-layer compression ratio picks one of three paths, fixed when the model is defined.

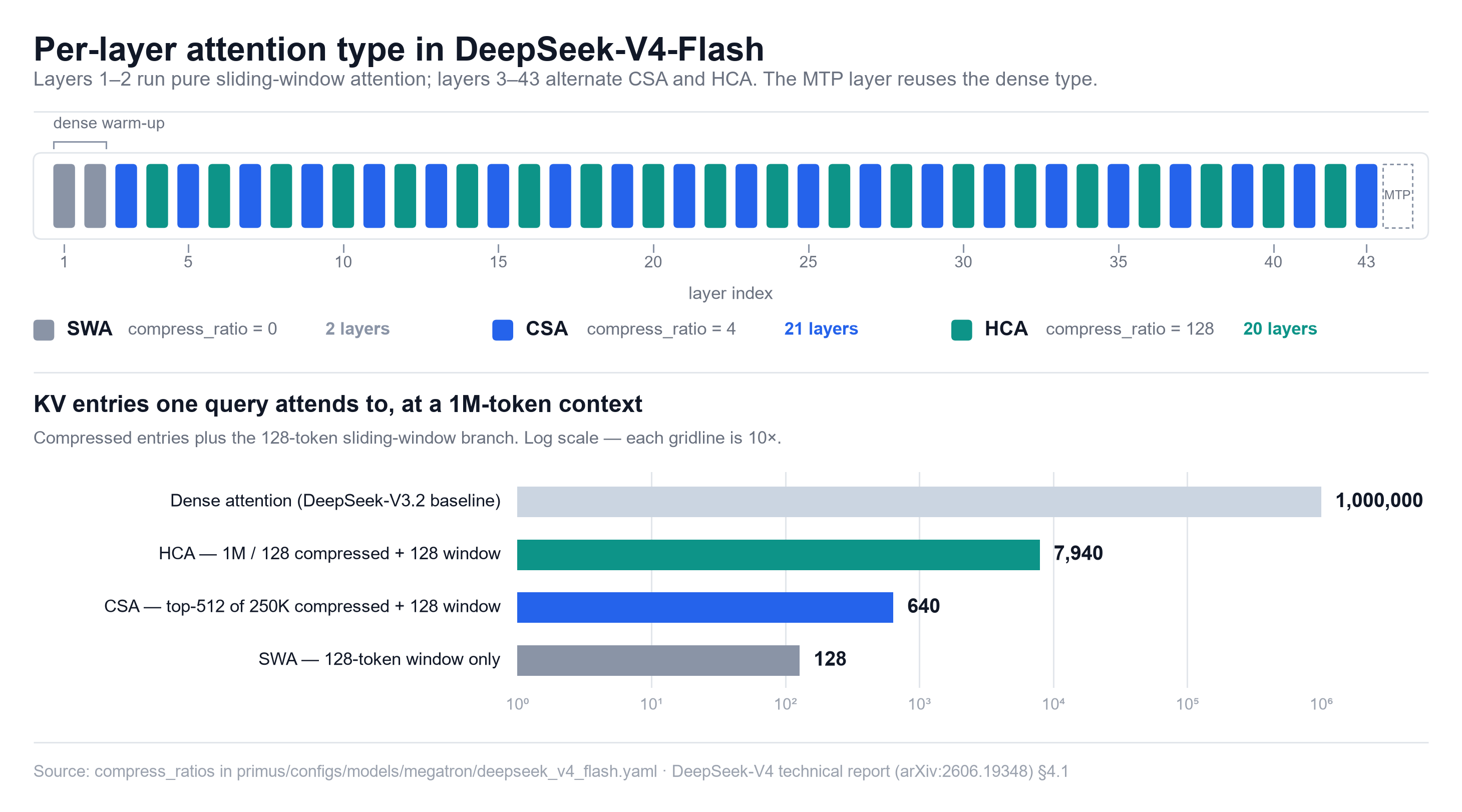

Figure 2: Per-layer attention type across the 43 decoder layers and the MTP layer, and the KV entries each type reads at a 1M-token context.

The first two layers run dense attention over a 128-token sliding window, a local warm-up before any compression kicks in. The remaining 41 layers alternate between Compressed Sparse Attention (CSA) and Heavily Compressed Attention (HCA), which works out to 21 CSA layers and 20 HCA layers. The MTP layer reuses the dense type.

The payoff shows up in the lower half of Figure 2. At a one-million-token context, a query in an HCA layer reads roughly 7,900 KV entries and a query in a CSA layer reads 640 — against a million for dense attention. Aggregated over the model, that is what lets DeepSeek report V4-Flash at about 10% of DeepSeek-V3.2’s single-token inference FLOPs with 7% of the KV cache.

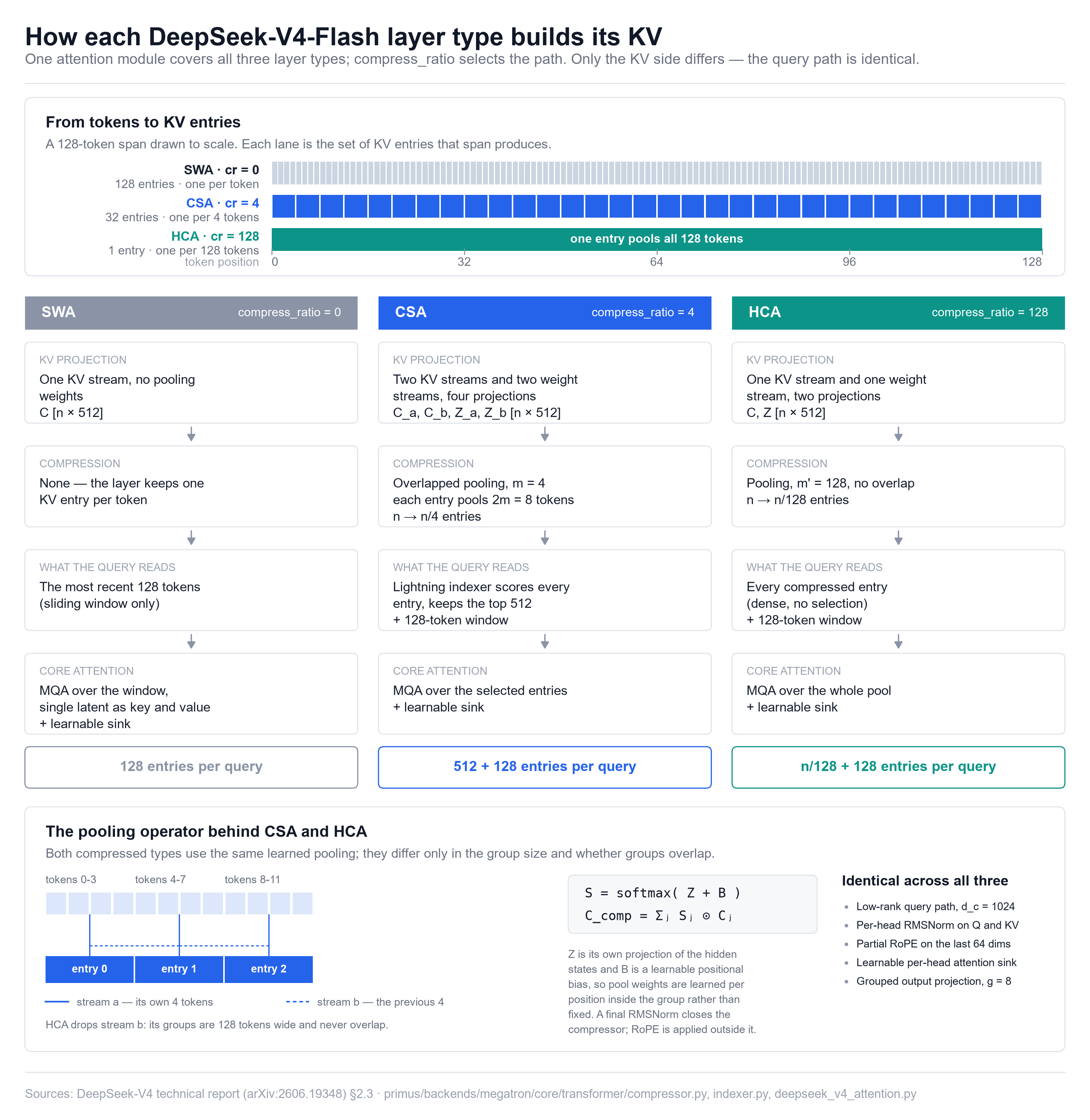

Figure 3: How each layer type builds its KV, and the learned pooling operator that CSA and HCA share.

Figure 3 shows how each path gets there. CSA pools every 4 tokens into one KV entry, then a lightweight “lightning indexer” scores every pooled entry and keeps the best 512 for the attention itself. HCA pools far more aggressively — 128 tokens per entry — but skips selection and attends densely over everything it produced. Both add the same 128-token sliding-window branch so a query can still see recent tokens at full resolution, and both share one learned pooling operator: a softmax over the group, biased by a learnable per-position term, used to weight the sum.

The asymmetry worth remembering is that CSA’s groups overlap. Each compressed entry pools its own four tokens plus the previous four, which is why CSA needs four KV-side projections where HCA needs two. That extra projection work reappears later when we break down kernel time.

Hyper-connections in place of the residual

Instead of x + F(x), each sub-layer sits between a pair of mHC mixers operating on four parallel residual streams. The first mixer collapses those four streams into the single tensor the sub-layer consumes; the second expands the result back out and combines it with the streams coming in. That combination matrix is projected onto the doubly-stochastic manifold by 20 Sinkhorn-Knopp iterations, which bounds its spectral norm at 1 and keeps signal propagation non-expansive across all 43 layers.

One ordering detail matters if you are porting this: the RMSNorm sits after the collapse, not before it. Several published diagrams of V4 get this backwards.

Taken one at a time, none of these changes is exotic. Taken together they mean you cannot train V4 by pointing stock Megatron-LM at a new config file, which is where Primus comes in.

Enabling DeepSeek-V4 in Primus

Primus describes a model as a chain of YAML files, each overriding the one below it. For V4-Flash that chain has three links:

primus/configs/models/megatron/llama_base.yaml     generic decoder defaults
  └─ deepseek_v4_base.yaml                         everything the V4 family shares
       └─ deepseek_v4_flash.yaml                   Flash-specific shapes

deepseek_v4_base.yaml is where the V4 vocabulary enters Primus. These are the knobs that have no equivalent in a V3 config:

Field	Flash value	What it controls
compress_ratios	[0, 0, 4, 128, …, 4, 0]	Per-layer attention type; 43 decoder entries plus one for MTP
index_topk	512	How many compressed entries the lightning indexer keeps
index_n_heads / index_head_dim	64 / 128	Indexer scoring shape
attn_sliding_window / attn_sink	128 / true	The local branch every layer type carries
hc_mult / hc_sinkhorn_iters	4 / 20	mHC residual streams and Sinkhorn-Knopp iterations
o_groups / o_lora_rank	8 / 1024	Grouped low-rank output projection
num_hash_layers	3	How many leading MoE layers use hash routing
moe_router_score_function	sqrtsoftplus	V4’s router scoring
swiglu_limit	10.0	Clamped SwiGLU, for FP8 and FP4 stability

One field does more than configure: model_type: deepseek_v4 is what routes the build away from the standard GPT path and into primus/backends/megatron/core/models/deepseek_v4/deepseek_v4_builders.py, which assembles the per-layer specs from compress_ratios. Change nothing else and Primus would happily build a V3-shaped model with V4 numbers in it; this line is what makes the hybrid attention stack real.

On top of the model config sits an experiment config carrying the training hyperparameters, the parallelism, and the kernel selection: examples/megatron/configs/MI355X/deepseek_v4_flash-BF16-pretrain.yaml, with an FP8 variant beside it. The parts specific to V4 are short:

modules:
  pre_trainer:
    framework: megatron
    model: ${PRIMUS_MODEL:deepseek_v4_flash}.yaml
    overrides:
      tensor_model_parallel_size: ${PRIMUS_TP:1}
      pipeline_model_parallel_size: ${PRIMUS_PP:4}
      expert_model_parallel_size: ${PRIMUS_EP:8}

      # attention kernels, chosen per path
      use_v4_attention_backend: ${PRIMUS_USE_V4_ATTENTION_BACKEND:turbo}
      use_v4_csa_attention_backend: ${PRIMUS_USE_V4_CSA_ATTENTION_BACKEND:turbo}
      use_v4_fp8_indexer: ${PRIMUS_USE_V4_FP8_INDEXER:false}
      use_v4_compiled_sinkhorn: ${PRIMUS_USE_V4_COMPILED_SINKHORN:false}

      # MoE acceleration
      use_turbo_grouped_gemm: true
      use_turbo_deepep: ${PRIMUS_USE_TURBO_DEEPEP:true}

Three things there are worth pointing out. The attention backend is selected separately for the dense and HCA layers (use_v4_attention_backend) and for the CSA layers (use_v4_csa_attention_backend), because CSA’s indexer and top-k selection make it a different kernel problem — we come back to that when we look at performance. The MoE lines shown here are one of two alternatives: setting USE_TURBO_MEGA_MOE=True swaps in MegaMoE, which fuses the communication into the grouped GEMM and turns DeepEP off automatically, since the two patch the same layer. And every V4 knob reads through an environment variable with a default, which is what makes it practical to sweep one optimization at a time.

Memory and performance projection

Before booking cluster time it helps to know where the parameter budget and the memory budget actually go. Primus Projection derives both from the model config without running a training step, and for a model shaped like V4-Flash the answers are lopsided in ways that are worth seeing before you start tuning.

Where the parameters go

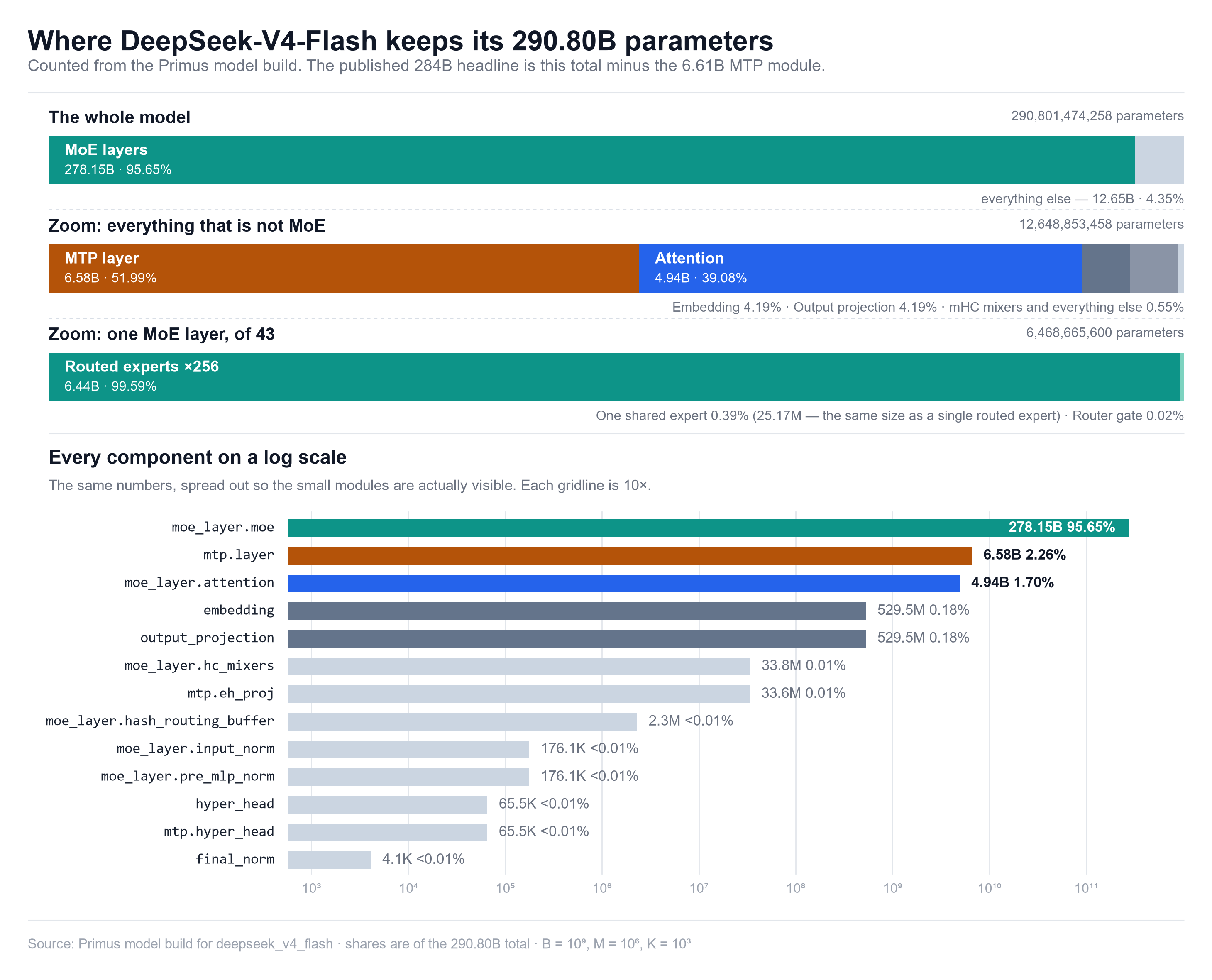

Figure 4: Where the 290.80B parameters live, at three levels of zoom and on a log scale.

Two things stand out in Figure 4:

• MoE holds 95.7% of the model. All 43 attention modules together come to 1.70% — 4.94B parameters against the MoE stack’s 278.15B. Inside a single MoE layer the concentration is sharper still: the 256 routed experts are 99.59% of it, the shared expert 0.39%, and the router gate 0.02%.

• The total is 290.80B, not the 284B on the model card. The difference is the 6.61B MTP module, which the published figure leaves out.

Where the memory goes

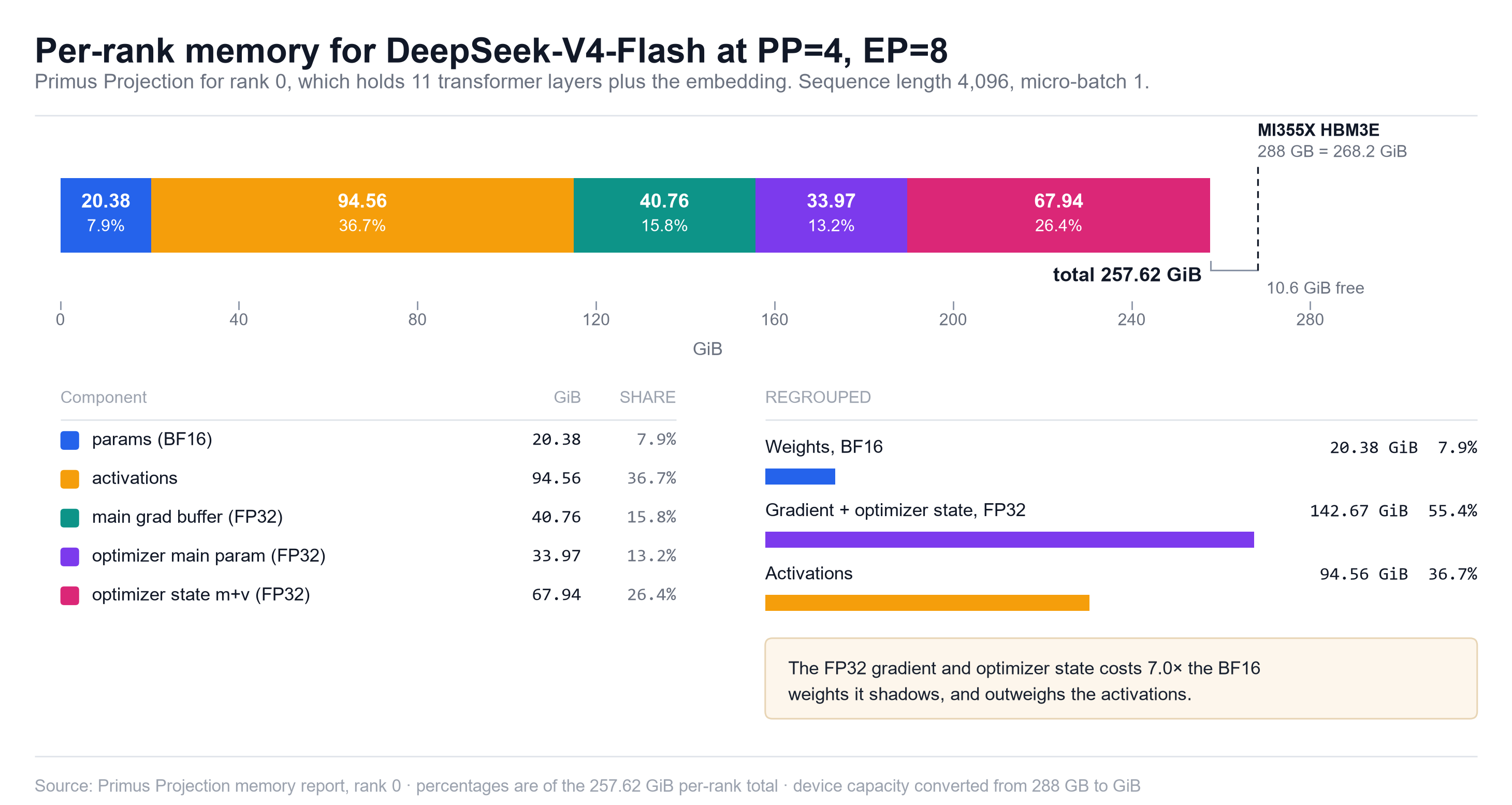

Figure 5: Per-rank memory at PP=4, EP=8, against the memory an MI355X provides.

Figure 5 shows rank 0 of the PP=4, EP=8 configuration at sequence length 4,096, assuming 11 transformer layers on the rank plus the embedding. Three takeaways:

• It fits, with about 4% to spare. 257.62 GiB per rank against the 268.2 GiB an MI355X exposes from its 288 GB of HBM3E, leaving roughly 10.6 GiB of headroom.

• FP32 state, not activations, is the largest bucket. The gradient buffer, the optimizer’s main parameter copy, and the two moments come to 142.67 GiB, 55.4% of the total — seven times the 20.38 GiB of BF16 weights they shadow, and more than the 94.56 GiB of activations.

• Activations are the only bucket you can trade against compute. Recompute buys memory back by paying for a second forward pass, and how much of it a run needs depends on everything else that run is doing. The shipped four-node configuration ends up needing none — but only because the kernel work below frees the memory first. Where the layers land and how much to recompute are tuned together, and every layout measured below puts ten layers on stage 0, not the eleven assumed here; that section measures both.

These numbers are projections derived from the config rather than measurements, and they are an upper bound: the measured peak on the shipped four-node configuration is 242.98 GiB — 260.9 GB in the units the sections below use — roughly 15 GiB under the projection.

Performance optimizations

The sections below follow the order in which we switched these on, and the ladder at the end measures what each one is worth on a four-node run.

Kernel fusions

DeepSeek-V4 brings in a lot of new machinery — mHC on every sub-layer, a compressor and an indexer on every compressed layer, two new routers. Written the obvious way, each of those is a chain of small elementwise operations, and PyTorch dispatches every one as its own kernel with a full HBM round trip. None of them is expensive on paper. Together they dominated our first working build, and each intermediate they materialize is memory you do not get back.

So we fused them. The table below is what ships today; each row replaces an eager chain with a single forward kernel and, where a backward is needed, a single backward kernel.

Fusion	What the eager path does	Fused into	Written in
SWA / CSA / HCA attention	Separate K and V paths, a split CSA pool kernel, and a sliding-window branch joined afterwards — see the backend comparison below	One single-latent sparse-MLA kernel per layer type, gathering the selected KV entries in-kernel and folding in the window branch and the softmax sink	Triton, Gluon, FlyDSL
RMSNorm	Cast to fp32, square, mean, add eps, rsqrt, scale, cast back, optional weight multiply — an 8-op chain	One kernel pair, covering every non-TE RMSNorm site in the model body	Triton
Interleaved partial RoPE	A 9-op chain ending in a torch.cat that copies the whole tensor to rejoin the rotated and untouched halves	One kernel pair	Triton
Sinkhorn-Knopp	39 fp32 reductions over a 4×4 matrix — one priming column normalization plus 19 row/column pairs — each its own launch	One kernel pair that keeps the entire trajectory in registers	Triton, after a torch.compile version
Hyper-connection glue	Three slices, three fused multiply-adds, two sigmoids, a softmax and two eps adds — about 8 launches	One kernel	Triton
Hyper-connection collapse	A broadcast multiply that materializes a full […, K, D] temporary, then a reduction over it	One kernel that contracts K in registers and writes only the result	Triton
Hyper-connection expand	An outer product, a contraction over K, and an add	One kernel	Triton
Compressor pooling	Add the positional bias, cast, softmax over the window, cast back, multiply, reduce — about 5 launches	One forward kernel that reduces in fp32 and handles both the CSA window of 8 and the HCA window of 128	Triton
Indexer scoring tail	ReLU, per-head multiply, sum over heads, mask allocation, mask add, cast — about 5 ATen launches	One kernel that materializes the causal mask inline, with no [S, P] mask tensor	Triton
MoE router tail	Score function, gather, sum, clamp, divide, scale, then two scatters	One kernel	Triton
Grouped expert weight stack	torch.stack then transpose then contiguous — two full passes over the per-expert weights	One kernel, single pass	Triton

None of these is a headline optimization on its own, which is exactly why they are easy to leave on the table. Switching all of them on at once is the single largest step in the whole ladder: it nearly doubles end-to-end throughput and frees 22 GB of memory at the same time, because every intermediate that no longer gets written is also memory that no longer gets allocated.

Attention kernels for the three layer types

V4-Flash runs three different kinds of attention, picked per layer by compress_ratio, and each one hands the kernel a different problem. Primus implements all three as fused kernels in several backends and has tuned each of them:

• eager — a plain PyTorch path. Slow, but it is the reference the parity tests compare against.

• Triton — the first production backend, and the portable one.

• Gluon — Triton’s experimental Gluon dialect, gfx950 only. It exposes the warp-level pipeline, so the kernel can be scheduled explicitly instead of leaving the decision to the compiler.

• FlyDSL — the fastest of the four. FlyDSL gives fine-grained control over instruction scheduling and software pipelining on MI355X, which is exactly what the compressed layer types need: their inner loop is a gather over a sparse set of KV entries, and hiding that latency behind MFMA issue is a scheduling problem more than a math problem. The FlyDSL DeepSeek-V4 attention kernels live in Primus-Turbo.

The tables below are single-GPU MI355X measurements at sequence length 4,096, micro-batch 1, BF16, attention sink on, 128-token sliding window. Each cell is median latency in milliseconds and the achieved TFLOP/s.^[1]

Forward

Model	Layer type	Triton	Gluon	FlyDSL
V4-Flash	SWA (cr = 0)	0.30 | 230.0	0.28 | 248.3	0.20 | 335.5
V4-Flash	CSA (cr = 4)	0.87 | 397.1	0.66 | 523.6	0.53 | 651.7
V4-Flash	HCA (cr = 128)	0.38 | 223.9	0.33 | 263.2	0.22 | 384.2
V4-Pro	SWA (cr = 0)	0.58 | 236.2	0.51 | 269.0	0.38 | 357.9
V4-Pro	CSA (cr = 4)	2.78 | 444.3	1.92 | 645.1	1.41 | 878.1
V4-Pro	HCA (cr = 128)	0.72 | 238.6	0.61 | 280.9	0.43 | 395.5

Backward

Model	Layer type	Triton	Gluon	FlyDSL
V4-Flash	SWA (cr = 0)	1.16 | 148.4	1.13 | 152.0	0.67 | 257.8
V4-Flash	CSA (cr = 4)	5.93 | 144.9	3.99 | 215.1	2.55 | 336.9
V4-Flash	HCA (cr = 128)	1.67 | 128.8	1.54 | 139.2	0.78 | 274.9
V4-Pro	SWA (cr = 0)	1.81 | 190.1	1.70 | 202.2	1.29 | 267.2
V4-Pro	CSA (cr = 4)	10.74 | 287.8	8.52 | 362.9	6.32 | 489.3
V4-Pro	HCA (cr = 128)	2.47 | 174.2	2.27 | 189.4	1.49 | 288.2

To reproduce any column, set the two selectors in the experiment config. The dense and HCA layers read the first field, the CSA layers the second:

Config field	Triton	Gluon	FlyDSL
use_v4_attention_backend	triton_v2	gluon_v3	turbo
use_v4_csa_attention_backend	triton_v2	gluon_v3	turbo

Getting the FlyDSL column to those numbers took work in both directions. Sparse-MLA is one of the harder attention kernels to make fast: the KV cache is a single 512-dimensional latent serving as both key and value, and each query reads only a sparse top-k subset of it, so on top of the usual attention math the kernel pays a gather/scatter tax — two passes over an intermediate tensor that dense flash attention never touches.

The forward pass is latency-bound rather than throughput-bound. With exp2 and MFMA issue roughly balanced there is no occupancy left to buy, so every gain came from shortening or overlapping the serial QK → softmax → PV chain:

• Batching two adjacent tiles into K=32 doubles MFMA depth and halves the read-after-write chain.

• Moving to one work-group per token at BLOCK_H=128. Under a shared latent, two work-groups per token each store their own copy of it — pure redundancy. Storing it once cuts roughly a quarter of the work.

• Exploiting softmax’s shift invariance: take the first key pair’s maximum as a fixed bound, and the rescale factor becomes a constant 1 that the compiler folds away. That buys no-max speed at pure-accumulation precision, worth about 13% on its own. It is now the default path.

The backward pass splits into three kernels, each with a different bound and a different fix:

• dQ takes the largest share and is pinned to single-wave occupancy by register pressure. Its bottleneck is HBM latency on the KV gather, and the only way to hide it is to keep the per-tile QK → softmax → PV interleaving. It is the healthiest of the three, running 1.4–2.4× faster than the Triton version.

• interm is a head-dimension contraction GEMM. Replacing its LDS staging with a hand-rolled 16×16 in-register transpose through ds_bpermute, then moving to K=32 MFMA, halves the instruction count.

• delta — the rowsum(O·dO) reduction — was a standalone, fully serial micro-kernel. Inlining it into dQ removes an entire launch. Batching kv blocks then let dQ and interm fuse as well, which also drops the HBM round trip for the intermediate tensor.

All six shapes are numerically correct in both directions at BF16.

Expert parallelism: DeepEP and the grouped GEMM

With 256 experts and six of them active per token, the MoE layer is where both the FLOPs and the communication live. Two independent optimizations sit on that path, and they are worth separating because they are almost always enabled together and then reported as one.

DeepEP replaces the token dispatch and combine. Expert parallelism has to send every token to whichever rank owns its experts and bring the results back; the stock path does that as a pair of all-to-all collectives with the permutation and its inverse done in PyTorch around them. DeepEP does the permutation, the transfer and the reverse in dedicated kernels, producing the token layout the GEMM wants rather than assembling it afterwards.

The Turbo grouped GEMM replaces the per-expert loop. At EP=8 every rank holds 32 of the 256 experts, and each of them multiplies a different number of tokens by its own weights. Issued as 32 separate GEMMs most are far too small to fill the GPU, and the launch overhead alone is comparable to the math. The grouped GEMM issues all of them as one kernel over a ragged batch.

Both live in the experiment config:

enable_primus_turbo: true
use_turbo_deepep: true
use_turbo_grouped_gemm: true

Switched on one after the other rather than in one step, the grouped GEMM is worth about six times what DeepEP is worth on this model: DeepEP adds 1.3%, and the grouped GEMM on top of it another 7.9% (rungs 4 and 5 of the ladder below). Enabling them together, as most configurations do, would put that gain on the wrong feature.

MegaMoE: fusing communication into the grouped GEMM

Both optimizations above make one half of the expert path faster, but they leave it in two halves: the communication still runs next to the GEMM rather than inside it. The usual way to hide it is to put the transfer on its own stream and overlap it with the math. That is awkward to orchestrate, and the two streams then compete for the same compute units and memory bandwidth — the overlap gives back part of what it saves.

Primus overlaps inside the kernel instead. Data movement and math interleave at the instruction level rather than racing as separate streams, which is what FlyDSL’s fine-grained control over the pipeline makes possible. This ships today as single-node fusion on MI355X; the same approach extends to much larger EP degrees on the next generation of rack-scale systems.

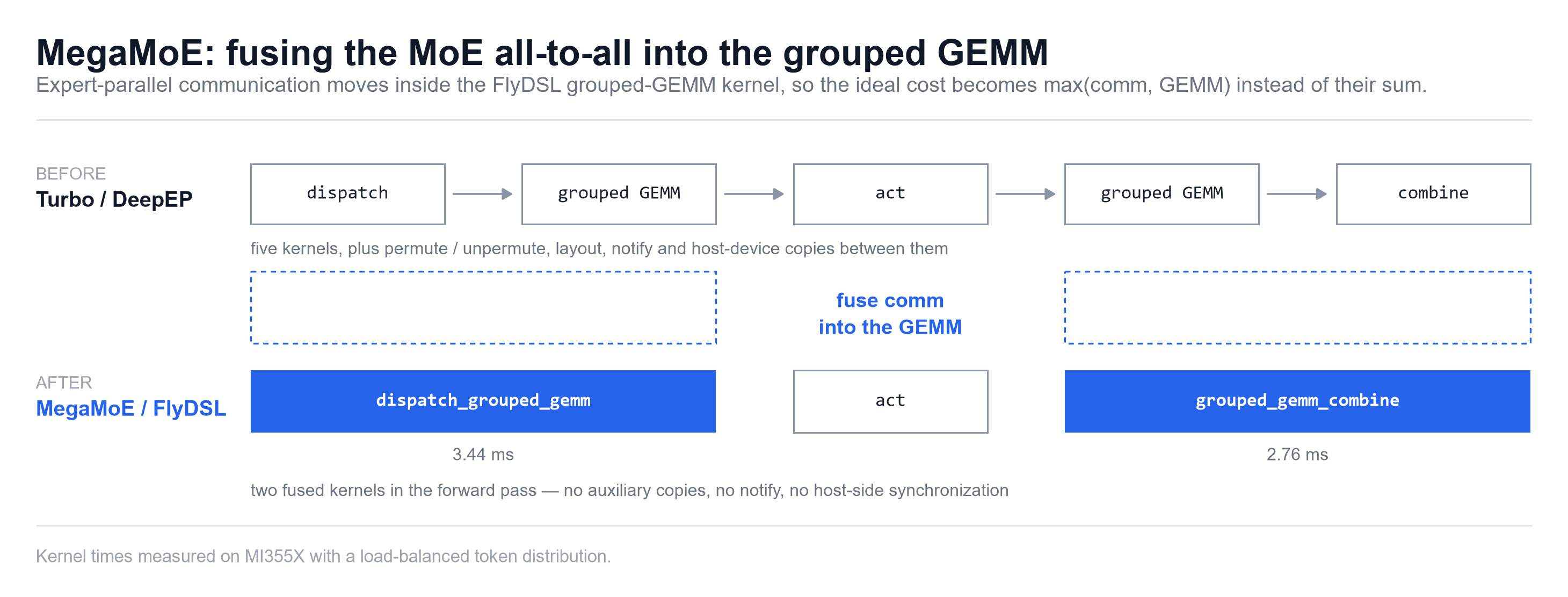

Figure 6: MegaMoE fuses the expert-parallel all-to-all into the grouped GEMM, turning five kernels into two.

As Figure 6 shows, MegaMoE — the FlyDSL layer that replaces the native MoELayer — collapses that chain into two kernels: dispatch_grouped_gemm fuses the token dispatch all-to-all into the first grouped GEMM, and grouped_gemm_combine fuses the second grouped GEMM into the combine and the weighted reduce. With a fused router in front and SwiGLU in between, the whole expert path becomes dispatch_grouped_gemm → SwiGLU → grouped_gemm_combine.

Two stages, so the DDP collectives still overlap. Primus-Turbo does expose all of this as a single fused op. Primus deliberately drives it as two stages instead, each owning one weight and each wrapped in a tiny weight module that computes nothing:

MegaMoEExperts
├── fc1_weight : MegaMoEWeightModule   # w1 [g, 2I, H]  gate + up
└── fc2_weight : MegaMoEWeightModule   # w2 [g, H, I]   down

FORWARD (in order)                   BACKWARD (in order)
─────────────────────────────        ─────────────────────────────
w1 = fc1_weight()                    stage2.backward -> dW2
  hook: all-gather(w1), wait           hook: reduce-scatter(dW2) ─┐
stage1: dispatch + GEMM1     ─┐                                   │ overlap
w2 = fc2_weight()             │ ovl  stage1.backward -> dW1 ───────┘
  hook: all-gather(w2) ───────┘        hook: reduce-scatter(dW1)
stage2: SwiGLU + GEMM2 + combine         (overlaps the next layer)

Those modules exist to be hook sites. The distributed optimizer overlaps two collectives at module and parameter granularity, and neither can overlap anything if the expert path is one opaque call:

• overlap_param_gather rides the forward pre-hook, which fires per module. A single call site taking both weights means both all-gathers have to land before any compute starts. Split, w2’s gather is issued at fc2_weight and hides under stage 1.

• overlap_grad_reduce rides the grad hook, which fires when a parameter’s .grad appears. One fused autograd node emits dW1 and dW2 together at the end of the layer backward. Split, dW2 lands early and its reduce-scatter hides under stage 1’s backward.

The split is purely at the Python and autograd level — the kernels themselves are unchanged.

Configuration. Two flags turn it on, and MegaMoE is EP-only:

enable_primus_turbo: true
use_turbo_mega_moe: true      # EP-only, TP=1, BF16
tensor_model_parallel_size: 1
add_bias_linear: false

The replacement is applied only when enable_primus_turbo and use_turbo_mega_moe are both set, tensor_model_parallel_size == 1, params_dtype == bf16, and an EP process group exists. Anything else asserts. Sequence-level and global aux loss, z-loss, sinkhorn and input jitter are unsupported — only the standard aux_loss — and aux-loss-free expert bias raises NotImplementedError.

What it buys. The expert-parallel intra-node all-to-all is fused into the FlyDSL grouped-GEMM kernel, so the ideal cost becomes max(comm, gemm) rather than their sum. In practice the fused kernel holds at least 85% of that perfect-overlap roofline, 90% or better in most cases, with only 0.3–0.5 ms of overhead left over.

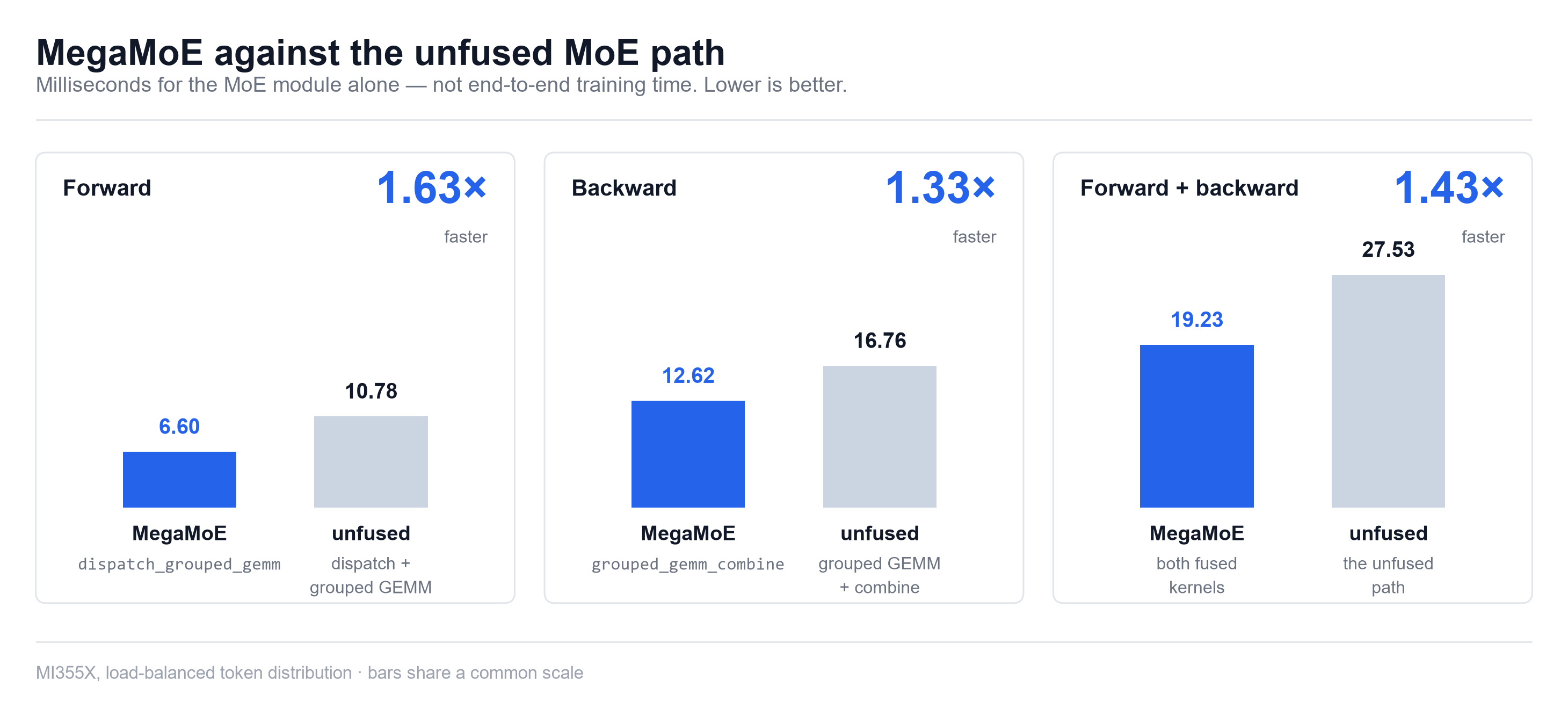

Figure 7 measures what that is worth. These are times for the MoE module on its own.^[1]

Figure 7: MegaMoE against the unfused MoE path, measured on the MoE module alone.

Pipeline layout and recompute

The last two knobs are not kernels. They decide how the 43 transformer layers, the embedding, the MTP module and the loss are spread across the four pipeline stages, and how much activation memory is traded back for recompute.

The default split — 10 layers on stage 0, which also carries the embedding, and 11 on each of the others — looks fair and is not. The last stage also carries the MTP module and the loss, while 1F1B leaves stage 0 holding four microbatches in flight where the last stage holds one. Moving two layers off the last stage onto the middle two, Et*10|t*12|t*12|t*9mL, evens out the time per stage and shortens the pipeline bubble; stage 0 keeps its 10 layers either way, because it is the one under activation pressure. Recompute is the other half — the conservative starting point checkpoints the first three layers of every stage — and the optimizations above free enough memory to stop paying that tax.

Measured one at a time against the same reference:^[2]

Change	Layout	Recompute	TFLOP/s	Gain	Peak memory
reference	Et*10|t*11|t*11|t*11mL	3	1167.2	—	217.2 GB
layout only	Et*10|t*12|t*12|t*9mL	3	1273.4	+9.1%	225.9 GB
recompute only	Et*10|t*11|t*11|t*11mL	0	1255.7	+7.6%	260.9 GB
both	Et*10|t*12|t*12|t*9mL	0	1378.8	+18.1%	260.9 GB

They contribute almost equally, and doing both is worth 1.5 points more than the sum of doing each alone: dropping recompute frees time that an unbalanced pipeline would partly give back as bubble, and rebalancing the pipeline has little to fill unless recompute stops taking the time. The memory bill is dominated by recompute: dropping it costs 35 to 44 GB depending on the layout, against the 8.7 GB the rebalance adds on its own. Once recompute is off, both layouts peak at the same 260.9 GB of the 288 GB an MI355X provides, since stage 0 holds 10 layers and the most microbatches in flight either way. That is also why recompute cannot be dropped first: it only fits once the fusions and the MoE work have given the memory back.

Neither knob is a one-time decision. Those four rows isolate what each one is worth at a single point in the project; they are not the method that produced the shipped values. Layout and recompute were retuned continuously throughout V4 development, because every kernel that landed moved the target: a fusion that frees 8 GB changes which layout balances best, and a faster attention kernel changes which stage sits on the critical path. Recompute is not a switch either. Primus exposes the granularity, the per-stage layer count, an explicit list of global layer ids, and a per-module selection, so how much to recompute is a search over a space rather than a boolean. Zero is where that search happens to land for four nodes with everything else on; eight nodes, or a different set of kernels, land elsewhere.

Running that search by hand does not scale past a handful of configurations, and it has to be redone every time the kernels change. We are building an auto-tuner that chooses the pipeline layout and a fine-grained recompute plan together, and will open-source it in Primus as it matures.

Stacking the optimizations

Every section above reports what one optimization is worth in isolation. The number that decides whether a run is practical is what they are worth together, and that is not the same thing — each one changes the balance the next one sees.

So we measured the whole ladder end to end on four nodes: start from a build with every optimization switched off, turn on exactly one thing per rung, keep everything already on, and hold the shapes fixed at global batch 256, micro-batch 1, sequence length 4,096, all in BF16, with router load balancing forced to uniform so the expert GEMM shapes do not drift between rungs. Ten iterations per rung, averaged over iterations 4 to 10.^[2]

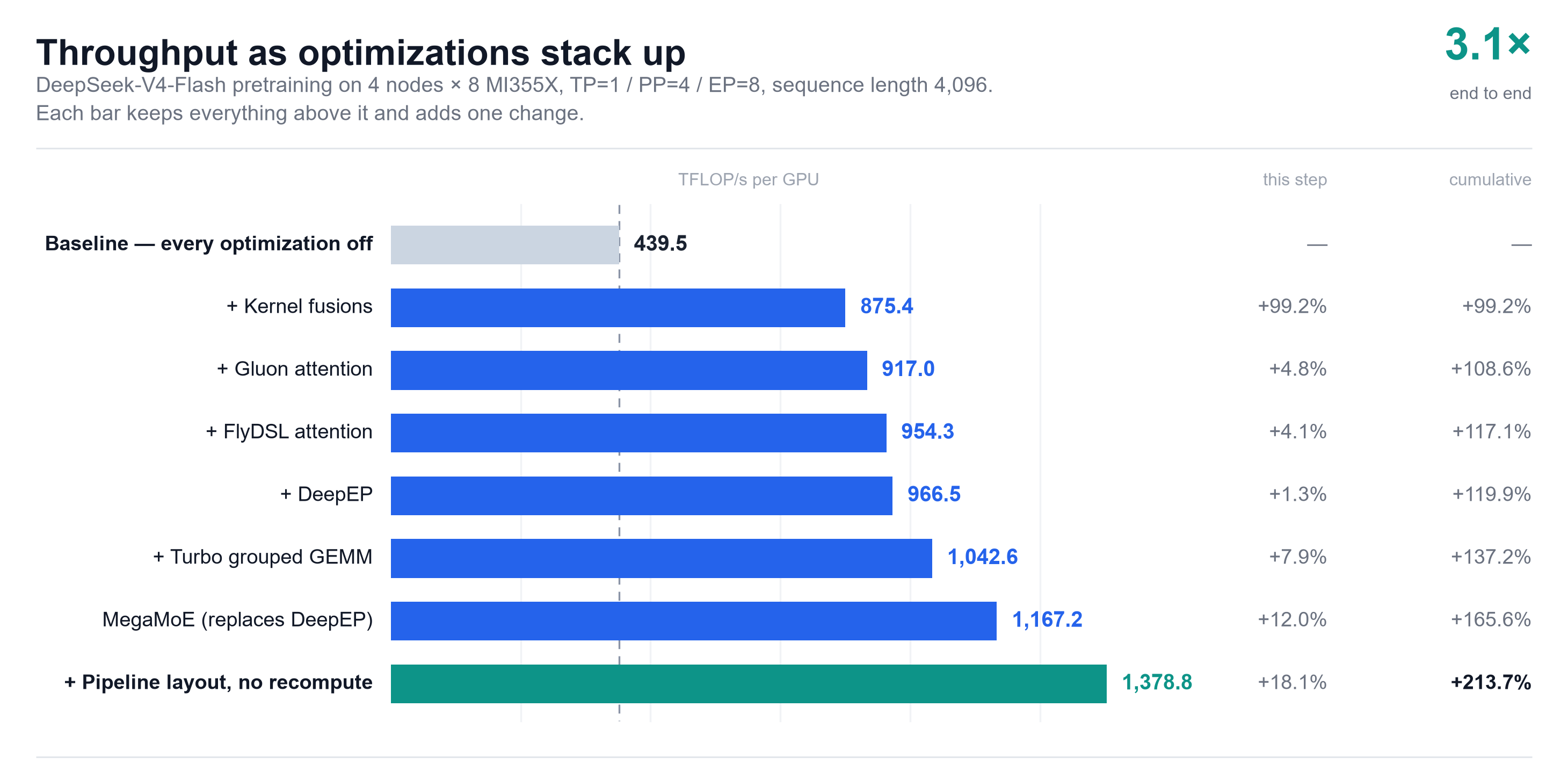

Figure 8: Throughput as each optimization is added to the ones above it, on 4 nodes × 8 MI355X.

Figure 8 plots that climb, and the table below gives the exact number each rung lands on:

Stage	Optimization	What it changes	TFLOP/s/GPU	This step	Cumulative
0	Baseline	Every optimization off: unfused elementwise chains, first-generation Triton attention, the native MoE layer, an even pipeline split with three recomputed layers per stage	439.5	—	—
1	Kernel fusions	The fusions listed above, plus Megatron’s permutation, cross-entropy and gradient-accumulation fusions	875.4	+99.2%	+99.2%
2	Gluon attention	Sparse-MLA moves to the Gluon dialect (gluon_v3), scheduled explicitly for gfx950	917.0	+4.8%	+108.6%
3	FlyDSL attention	Sparse-MLA moves again, to the FlyDSL kernels in Primus-Turbo	954.3	+4.1%	+117.1%
4	DeepEP	Token dispatch and combine become dedicated kernels instead of PyTorch permutation around two all-to-all collectives	966.5	+1.3%	+119.9%
5	Turbo grouped GEMM	The 32 local expert GEMMs issue as one ragged-batch kernel	1042.6	+7.9%	+137.2%
6	MegaMoE	Replaces both of the above: the all-to-all is fused into the grouped GEMM rather than sitting next to it	1167.2	+12.0%	+165.6%
7	Pipeline layout and recompute	Layers rebalanced to 10/12/12/9, recompute dropped to zero	1378.8	+18.1%	+213.7%

Reproduce: training DeepSeek-V4-Flash

Everything above ships in the open-source Primus repository, and the four-node configuration in this blog is the default — you do not have to reassemble the optimizations by hand.

The runs here pin Primus at commit 8e24522, which is where this launcher landed on main. Build the container from the Dockerfile at that same commit — .github/workflows/docker/Dockerfile, which puts PyTorch, Megatron-LM, Primus-Turbo and the FlyDSL kernels on a ROCm base — and point DOCKER_IMAGE at it; the launcher requires that variable.

One thing the image does not settle is the code. Any Primus image — including one built from that Dockerfile — ships its own snapshot of the repository under /workspace/Primus, and that snapshot is not necessarily this commit. Check 8e24522 out on the host and mount it over that path, so the image supplies the environment and your checkout supplies the code.

Everything else is one launcher: examples/deepseek-v4/run_deepseek_v4_flash.sh. Run it with no flags for rung 7. Its header documents the rest: one switch per optimization family, so any rung of the ladder is a single variable away, and a dry-run mode that resolves a combination and prints what it means before you spend an allocation on it.

A healthy four-node run settles at roughly 8.5 s per iteration and 1,370–1,385 TFLOP/s per GPU, with peak memory around 261 GB of the 288 GB on each MI355X.^[2] The launcher is tuned for four nodes; another node count needs its own PRIMUS_PP and PRIMUS_PP_LAYOUT.

Summary

In this blog you explored what it takes to train DeepSeek-V4-Flash end to end in Primus on AMD Instinct MI355X GPUs. You read the architecture layer by layer — three interleaved attention types, manifold-constrained hyper-connections in place of the plain residual, and a 256-expert MoE in every block — and saw why none of it drops into stock Megatron-LM unchanged. You saw which knobs Primus exposes to describe that shape in YAML, what Primus Projection says about the parameter and memory budget before you book a single node, and then — where most of the engineering went — the kernel work that took the model from it runs to it runs fast.

No single change got it there. Fusing the small operations V4 introduces — mHC on every sub-layer, a compressor and an indexer on every compressed layer, two new routers — was the largest single step, nearly doubling throughput and freeing 22 GB at once. Moving the three attention types from Triton to Gluon and then to the FlyDSL sparse-MLA kernels added another 9% to end-to-end throughput and delivered up to a 2.3× speedup on the CSA backward pass alone, through scheduling and pipelining rather than new math. On the expert path, DeepEP and the Turbo grouped GEMM each accelerate one half of it, until MegaMoE replaces both by fusing the expert-parallel all-to-all into the GEMM itself. And the last 18% was not a kernel at all: rebalancing the pipeline to 10/12/12/9 layers and switching recompute off, which only fits because the kernel work freed the memory first.

Together they take a four-node run from 439.5 to 1,378.8 TFLOP/s per GPU — 3.1× — with the model holding at 261 GB of the 288 GB each GPU provides. All of it is in the Primus repository and on by default: attach a four-node allocation and run the launcher.

Three threads continue from here, and we will cover them in future posts as they land. FP8 is the nearest — the experiment config already sits beside the BF16 one and the numerical pieces it leans on are in place, so what is left is coverage and stability rather than enablement. The pipeline-layout and recompute search we ran by hand for this blog is becoming an auto-tuner that plans both together, and we will open-source it in Primus as it matures. And MegaMoE’s in-kernel overlap, which today supports single-node fusion, is the piece that extends to much larger expert-parallel degrees on the next generation of rack-scale systems. Each of these will land in Primus before it appears in a blog, so the repository is the place to watch.

Acknowledgments

We would like to express our sincere gratitude to the following teams and individuals for their invaluable contributions and collaboration, their expertise and support have been instrumental in advancing the progress of this project: Felix Li from the FlyDSL Team, and Wen Chen and Ye Wang from the TE Team.

Additional Resources

1. AMD Instinct™ MI355X GPUs: Product page for the accelerators every measurement in this blog runs on.

2. DeepSeek-V4 technical report: The architecture this enablement follows, including the compressed-attention and hyper-connection definitions.

3. DeepSeek-V4-Flash model card: Published weights and reference configuration for the model.

4. Primus: The training framework holding the V4 model definition, the experiment configs, and the launcher used here.

5. Primus-Turbo: AMD’s operator library, where the FlyDSL sparse-MLA attention and MegaMoE kernels live.

6. Megatron-LM: The backend Primus builds on, and the stock code path the V4 builders replace.

7. DeepEP: Expert-parallel dispatch and combine library, measured at rung 4 of the ladder.

8. Triton: Compiler for the portable kernel backend, and home of the experimental Gluon dialect used for the gfx950 attention kernels.

9. Primus Projection: Estimate Memory and Performance Before You Train: The tool behind the parameter and memory projections in this blog.

10. MoE Training Best Practices on AMD GPUs: Broader MoE training guidance that complements the V4-specific work here.

11. Porting High-Performance HIP Kernels to FlyDSL: Background on the FlyDSL programming model behind the fastest attention backend.

Endnotes

[1] Test Environment

Single-GPU kernel latency — the attention backend tables and the MegaMoE MoE-module times — was measured on one AMD Instinct MI355X GPU of an 8-GPU node with BF16 precision, sequence length 4,096 and micro-batch 1. Server manufacturers may vary configurations, which can yield different results. Performance may also vary based on the use of the latest drivers and optimizations.

AMD system configuration:

• Dual AMD EPYC 9575F 64-core processor

• 8× AMD Instinct MI355X GPUs, 288 GB HBM3E per GPU

• 1 NUMA node per socket

• System model: Supermicro AS-4126GS-NMR-LCC, system BIOS 1.4a

• Host OS: Ubuntu 22.04.5 LTS with Linux kernel 6.8.0-107-generic

• Host GPU driver: ROCm 7.0.1 + amdgpu 6.14.14

• VBIOS version: 113-M355-01-1K1-010C

• PyTorch 2.12.0

• AMD ROCm 7.14 software in the container

• Primus-Turbo 0.3.2, FlyDSL 0.2.4, Triton 3.7.0, Transformer Engine 2.14.0

[2] Test Environment

End-to-end pretraining throughput (TFLOP/s per GPU) — the optimization ladder, the pipeline layout and recompute comparison, and the four-node figures in the reproduce section — was measured on 4 MI355X nodes (32 GPUs total) with BF16 precision, TP=1, PP=4, EP=8, global batch 256, micro-batch 1 and sequence length 4,096, averaged over iterations 4 to 10 of a 10-iteration run. Server manufacturers may vary configurations, which can yield different results. Performance may also vary based on the use of the latest drivers and optimizations.

AMD system configuration:

• Dual AMD EPYC 9575F 64-core processor per node

• 32× AMD Instinct MI355X GPUs across 4 nodes, 288 GB HBM3E per GPU

• 1 NUMA node per socket

• System model: Supermicro AS-4126GS-NMR-LCC, system BIOS 1.4a

• Host OS: Ubuntu 22.04.5 LTS with Linux kernel 6.8.0-107-generic

• Host GPU driver: ROCm 7.0.1 + amdgpu 6.14.14

• VBIOS version: 113-M355-01-1K1-010C

• PyTorch 2.12.0

• AMD ROCm 7.14 software in the container

• Primus-Turbo 0.3.2, FlyDSL 0.2.4, Triton 3.7.0, Transformer Engine 2.14.0

[3] Scope of these measurements

Everything measured here is one configuration, and it is worth being explicit about where its edges are. The optimizer is AdamW in BF16, not the Muon that DeepSeek used for V4 pretraining — Primus wires Muon in behind OPTIMIZER=muon, but that is not what these numbers measure. The indexer distillation loss that trains CSA’s selector is off, which also leaves the indexer parameters frozen: the right setting for loading an already-trained indexer, or for measuring what the kernels cost, and the wrong one for pretraining from scratch, where it has to be on. FP8 is not measured here either, though the pieces that path leans on already ship — an E4M3 path for the indexer QK, and the clamped SwiGLU that gives FP8 and FP4 their numerical headroom.

Disclaimers

The information presented in this document is for informational purposes only and may contain technical inaccuracies, omissions, and typographical errors. The information contained herein is subject to change and may be rendered inaccurate for many reasons, including but not limited to product and roadmap changes, component and motherboard version changes, new model and/or product releases, product differences between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. Any computer system has risks of security vulnerabilities that cannot be completely prevented or mitigated. AMD assumes no obligation to update or otherwise correct or revise this information. However, AMD reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of AMD to notify any person of such revisions or changes. THIS INFORMATION IS PROVIDED ‘AS IS.” AMD MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE CONTENTS HEREOF AND ASSUMES NO RESPONSIBILITY FOR ANY INACCURACIES, ERRORS, OR OMISSIONS THAT MAY APPEAR IN THIS INFORMATION. AMD SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR ANY PARTICULAR PURPOSE. IN NO EVENT WILL AMD BE LIABLE TO ANY PERSON FOR ANY RELIANCE, DIRECT, INDIRECT, SPECIAL, OR OTHER CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF ANY INFORMATION CONTAINED HEREIN, EVEN IF AMD IS EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Third-party content is licensed to you directly by the third party that owns the content and is not licensed to you by AMD. ALL LINKED THIRD-PARTY CONTENT IS PROVIDED “AS IS” WITHOUT A WARRANTY OF ANY KIND. USE OF SUCH THIRD-PARTY CONTENT IS DONE AT YOUR SOLE DISCRETION AND UNDER NO CIRCUMSTANCES WILL AMD BE LIABLE TO YOU FOR ANY THIRD-PARTY CONTENT. YOU ASSUME ALL RISK AND ARE SOLELY RESPONSIBLE FOR ANY DAMAGES THAT MAY ARISE FROM YOUR USE OF THIRD-PARTY CONTENT. Illustrations may have been created using generative AI and reviewed by AMD. AMD, the AMD Arrow logo, AMD Instinct, AMD ROCm, and combinations thereof are trademarks of Advanced Micro Devices, Inc. PyTorch is a registered trademark of Meta Platforms, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies. © 2026 Advanced Micro Devices, Inc. All rights reserved
