Local Image and Video Generation on AMD Ryzen™ AI Max+ Processor (Windows)

Local Image and Video Generation on AMD Ryzen™ AI Max+ Processor (Windows)#

July 14, 2026 by Chengjia Huang, Daniel Huang, George Wang.

10 min read. | 2359 total words.

Applications & models

GenAI, Diffusion Model

AI

Running local generative-AI image and video workflows on AMD hardware on Windows has typically meant going through the Windows Subsystem for Linux (WSL). That works, but it adds a virtualization layer, extra setup, and a mental model that many creators would rather avoid.

With AMD ROCm™ 7.2.1, you can now run PyTorch — and therefore ComfyUI — natively on Windows on an AMD Ryzen™ AI Max+ processor, driving the integrated AMD Radeon™ 8060S GPU directly. Combined with the processor’s unified memory architecture (UMA), a single integrated GPU can address a very large memory pool, which is exactly what heavy diffusion and video workflows need.

This post builds on earlier ComfyUI-on-AMD guides from our team — including Getting Started with ComfyUI on AMD Radeon™ RX 9000 Series GPUs for discrete Radeon™ GPUs on Linux — and focuses specifically on a native Windows setup on an integrated GPU with unified memory.

If you build, evaluate, or self-host diffusion workflows on AMD hardware on Windows, this blog gives you a concrete, reproducible path. By the end you will know how to:

Install AMD ROCm™ 7.2.1 and a matching PyTorch build natively on Windows (no WSL);
Install ComfyUI and bind it to the AMD Radeon™ 8060S integrated GPU;
Run SDXL, Flux.1-dev, and a short-form video (WAN 2.2) workflow, and read ComfyUI’s performance output;
Understand how the AMD Ryzen™ AI Max+ unified memory pool benefits ComfyUI workflows.

Note

This blog focuses on a native Windows setup. If you are interested in a Linux setup with AMD Radeon™ RX 9000 series discrete GPUs, see Getting Started with ComfyUI on AMD Radeon™ RX 9000 Series GPUs. For a Windows setup using WSL, see Running ComfyUI in Windows with ROCm on WSL.

System Requirements#

Component	Specification
Processor	AMD Ryzen™ AI Max+ 395 (16 cores / 32 threads)
Integrated GPU	AMD Radeon™ 8060S Graphics (RDNA 3.5 / gfx1151)
System Memory	128 GB LPDDR5X (Unified), 8533 MT/s
GPU-Accessible Memory	~94 GB (BIOS configurable)
Operating System	Windows 11 Pro (24H2, build 26100)
AMD Software	Adrenalin Edition 32.0.31019 or newer
AMD ROCm™	7.2.1 (Windows)
Python	3.12 (cp312 wheels only)
PyTorch	2.9.1+rocm7.2.1
ComfyUI	master @ ab0d8a92 (Jun 2026)

Why unified memory matters for ComfyUI#

Traditional discrete GPUs commonly ship with 8–24 GB of dedicated VRAM. That ceiling forces diffusion users into compromises: aggressive quantization, model offloading, or simply not being able to keep a large model, its VAE, and several LoRAs resident at once.

AMD Ryzen™ AI Max+ processors use a unified memory architecture in which the CPU and integrated GPU share the same physical memory pool. On this system, around 94 GB of that pool is addressable by the Radeon™ 8060S — enough headroom that a single integrated GPU can host workflows that would not fit on a typical discrete card. For context, the SDXL benchmark below loads in well under 10 GB, leaving the large majority of that pool free for bigger models, batched generation, and video.

The story here is capacity and flexibility, not raw speed: an integrated GPU will not match a high-end discrete card on tokens or iterations per second, but it can run workflows end to end on a single, quiet, all-purpose Windows machine. Figure 1 shows the software path used throughout this blog.

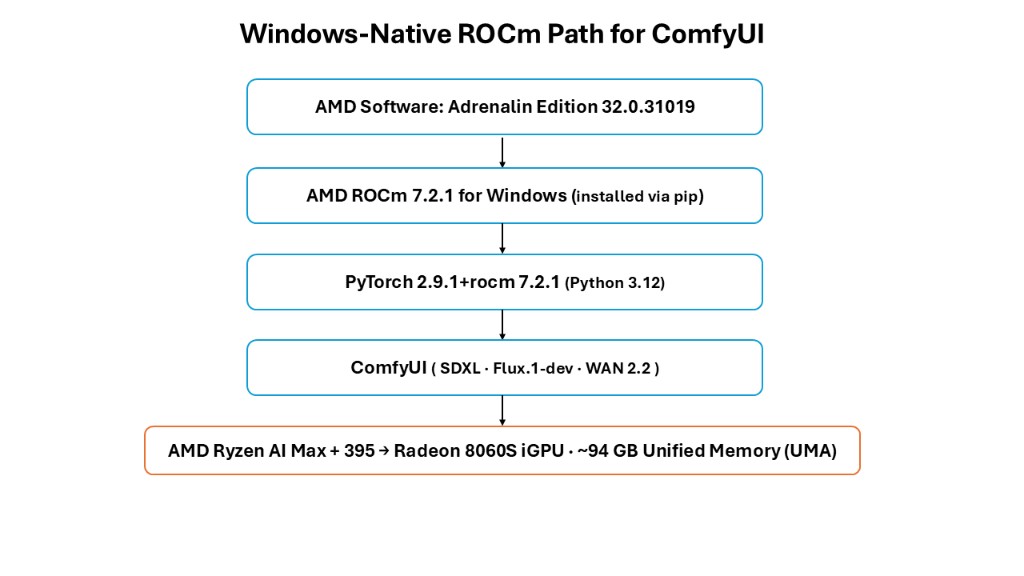

Windows-native ROCm software path for ComfyUI

Figure 1: The Windows-native software path. AMD ROCm™ 7.2.1 and PyTorch install through pip on top of the Adrenalin driver, and ComfyUI drives the integrated Radeon™ 8060S with access to roughly 94 GB of unified memory — no WSL layer.

Installation Guide#

The entire stack installs through pip — there is no separate HIP SDK installer and no WSL.

Prerequisites#

Windows 11 with AMD Software: Adrenalin Edition 32.0.31019 or newer.
Python 3.12. The AMD ROCm™ Windows wheels are built for CPython 3.12 only (cp312); Python 3.13 will not work.

Install Python 3.12 (this can coexist with other Python versions):

winget install --id=Python.Python.3.12 -e

Create a virtual environment#

mkdir C:\work
cd C:\work
py -3.12 -m venv comfyui-venv
.\comfyui-venv\Scripts\Activate.ps1
python -m pip install --upgrade pip wheel

Install AMD ROCm™ and PyTorch#

The AMD ROCm™ Windows PyTorch wheels are hosted at https://repo.radeon.com/rocm/windows/rocm-rel-7.2.1/. This is a plain file listing, not a PyPI-style index, so use it as a find-links source with -f (not --index-url):

pip install `
    -f https://repo.radeon.com/rocm/windows/rocm-rel-7.2.1/ `
    "torch==2.9.1+rocm7.2.1" `
    "torchvision==0.24.1+rocm7.2.1" `
    "torchaudio==2.9.1+rocm7.2.1" `
    numpy pillow

Note

The torch wheel depends on a package named rocm==7.2.1, which is published in the AMD repository (not on PyPI). The -f flag lets pip resolve it from there. If you instead pass the wheel URLs directly, pip cannot find rocm==7.2.1 and the install fails.

Verify that PyTorch detects the integrated GPU:

python -c "import torch; print(torch.__version__); print(torch.cuda.is_available()); print(torch.cuda.get_device_name(0)); print(round(torch.cuda.get_device_properties(0).total_memory/1e9, 2), 'GB')"

Expected output (the reported memory depends on your BIOS unified-memory allocation):

2.9.1+rocm7.2.1
True
AMD Radeon(TM) 8060S Graphics
94.35 GB

Install ComfyUI#

cd C:\work
git clone https://github.com/comfyanonymous/ComfyUI.git
cd ComfyUI

ComfyUI’s requirements.txt lists torch, torchvision, and torchaudio without versions. Installing it directly can pull the default CUDA build from PyPI and silently replace your ROCm build. Pin the ROCm versions with a constraints file:

pip freeze | Select-String "^(torch|torchvision|torchaudio|rocm|pytorch_triton_rocm)" | Out-File -Encoding utf8 torch-pin.txt
(Get-Content requirements.txt) | Where-Object { $_ -notmatch "^(torch|torchvision|torchaudio)\b" } | Out-File -Encoding utf8 req-no-torch.txt
pip install -c torch-pin.txt -r req-no-torch.txt

Confirm the ROCm PyTorch build is still in place:

python -c "import torch; print(torch.__version__, torch.cuda.is_available(), torch.cuda.get_device_name(0))"

This must still report 2.9.1+rocm7.2.1 True AMD Radeon(TM) 8060S Graphics.

Download a model and launch#

cd C:\work\ComfyUI\models\checkpoints
Invoke-WebRequest -Uri "https://huggingface.co/stabilityai/stable-diffusion-xl-base-1.0/resolve/main/sd_xl_base_1.0.safetensors" -OutFile "sd_xl_base_1.0.safetensors"
cd C:\work\ComfyUI
python main.py --listen 127.0.0.1 --port 8188

Open http://127.0.0.1:8188 in your browser.

Performance Benchmarks#

All numbers below were collected on the system in the System Requirements table. Each workflow lists its own generation settings, since they differ across SDXL, Flux.1-dev, and WAN 2.2.

SDXL#

Here we generated at 1024×1024 with 25 steps and the Euler sampler. On first launch, the AOTriton attention backend warms up in seconds — there is no multi-minute kernel compile that some AMD diffusion setups require. As a result the first and subsequent runs are close in time, as shown in Figure 2 and Figure 3.

Run	Sampling speed	End-to-end time
First run (cold)	1.43 it/s	26.57 s
Steady state	1.48 it/s	18.41 s

The SDXL UNet loads in roughly 4.9 GB and the text encoder in roughly 1.6 GB, so the full SDXL workflow uses under 10 GB of the ~94 GB available — leaving ample room for larger models, batching, and video.

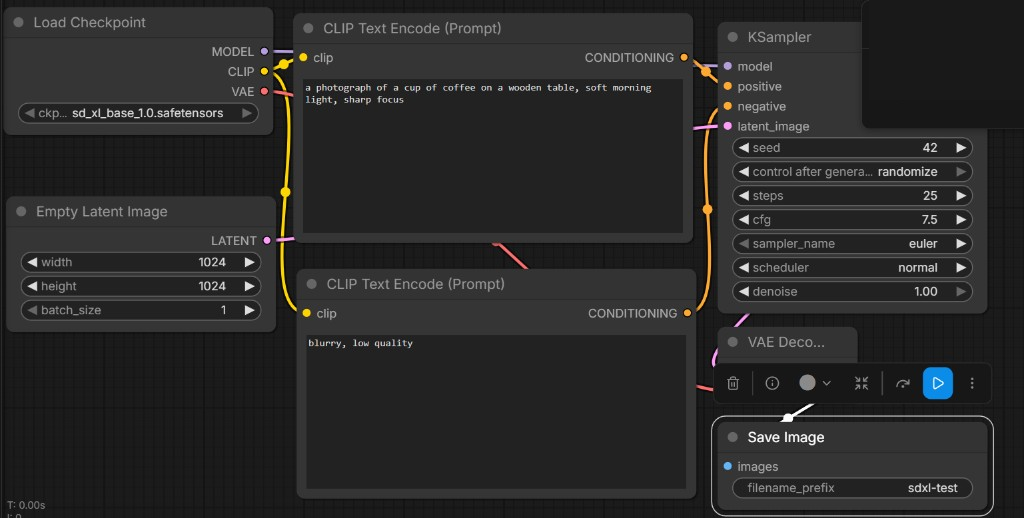

SDXL text-to-image workflow in ComfyUI

Figure 2: The SDXL text-to-image workflow in ComfyUI — Load Checkpoint, two CLIP Text Encode nodes, KSampler, VAE Decode, and Save Image.

SDXL console output on the Radeon 8060S

Figure 3: SDXL console output on the integrated Radeon™ 8060S — 1.48 it/s in steady state, with the prompt executed in 18.41 seconds.

Flux.1-dev#

We ran Flux.1-dev at full precision — the 23.8 GB flux1-dev diffusion model paired with the full-precision t5xxl_fp16 text encoder (9.79 GB) — generating at 1024×1024 with 20 steps. This is a point that the unified-memory pool makes possible: on a typical 8–24 GB discrete card you would be limited to fp8 quantized weights, whereas here both the model and the fp16 T5 encoder load fully (full load: True), with GPU memory peaking around 34 GB.

Run	Sampling speed	End-to-end time
First run (cold)	3.65 s/it	103.89 s
Steady state	3.64 s/it	77.56 s

The Flux 12B diffusion transformer is heavier per step than SDXL’s UNet, so a 1024×1024 image takes a little over a minute in steady state — practical for high-quality stills on an integrated GPU. Figure 4 shows the workflow and a generated image, and Figure 5 shows the console output.

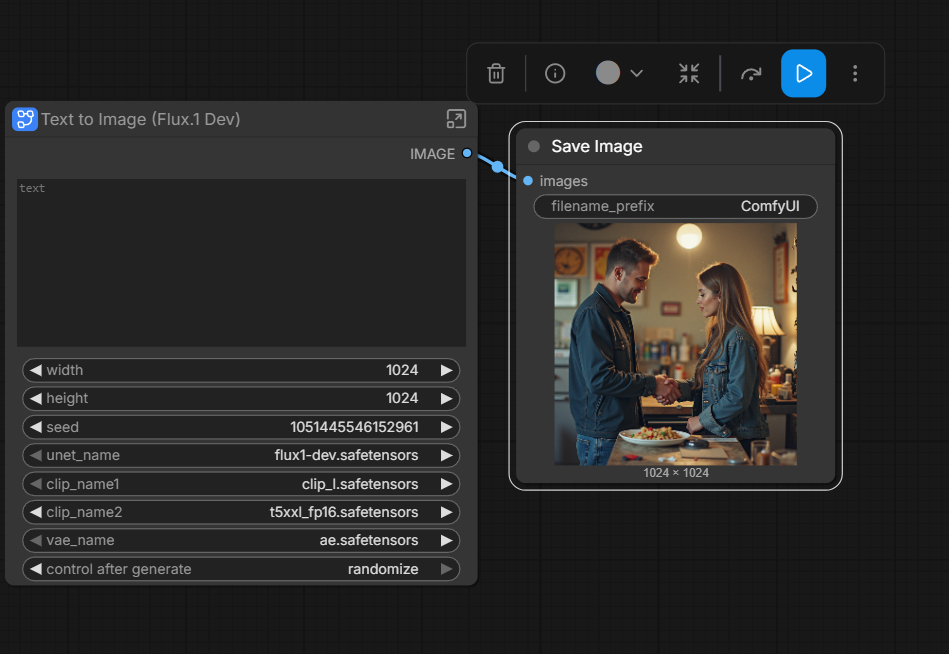

Flux.1-dev workflow and generated image in ComfyUI

Figure 4: The full-precision Flux.1-dev workflow in ComfyUI, showing the diffusion model, dual CLIP loader (clip_l + t5xxl_fp16), VAE, and a generated 1024×1024 image.

Flux.1-dev console output on the Radeon 8060S

Figure 5: Flux.1-dev console output — 3.64 s/it at full precision, with the prompt executed in 77.56 seconds in steady state.

Short-form video (WAN 2.2)#

For text-to-video we used the built-in “Text to Video (Wan 2.2)” blueprint, which pairs WAN 2.2’s two 14B expert models (high-noise and low-noise, fp8) with the 4-step LightX2V LoRA. The generation settings were 640×640, 81 frames, 4 sampling steps (2 per expert).

This is where the unified-memory pool matters most. Across a single run, ComfyUI keeps the UMT5-xxl text encoder (~6.4 GB), the active 14B expert (~13.6 GB), and the WAN VAE resident, and swaps between the two expert models mid-run. GPU memory usage peaks around 42 GB — well beyond the 8–24 GB found on typical discrete cards, yet comfortably within the available pool.

Run	high-noise sampling	low-noise sampling	End-to-end time
First run (cold)	~288 s/it	288 s/it	36 min 14 s
Steady state	197 s/it	186 s/it	26 min 51 s

Video diffusion is far heavier than single-image generation — each step denoises all 81 frames at once — so per-step times are measured in minutes, not iterations per second. The takeaway is not raw speed but that a single integrated GPU can run a 28 GB dual-expert video model end to end on a quiet desktop system. Figure 6 shows the workflow, and Figure 7 shows the console output alongside peak GPU memory usage. The output is written to output\video\ as an .mp4.

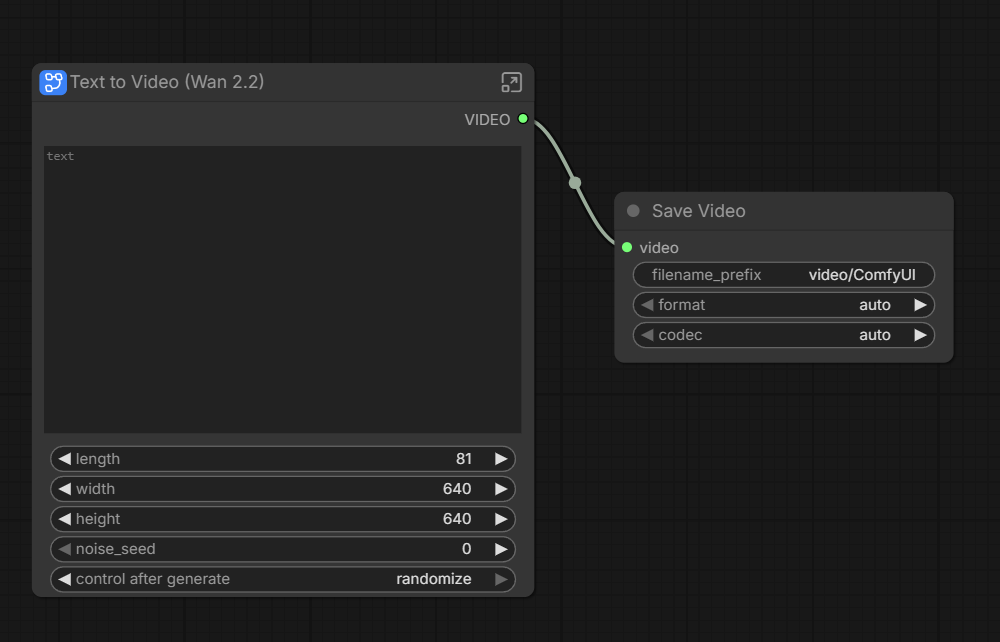

WAN 2.2 text-to-video workflow in ComfyUI

Figure 6: The WAN 2.2 text-to-video blueprint with a Save Video node connected to its VIDEO output (640×640, 81 frames).

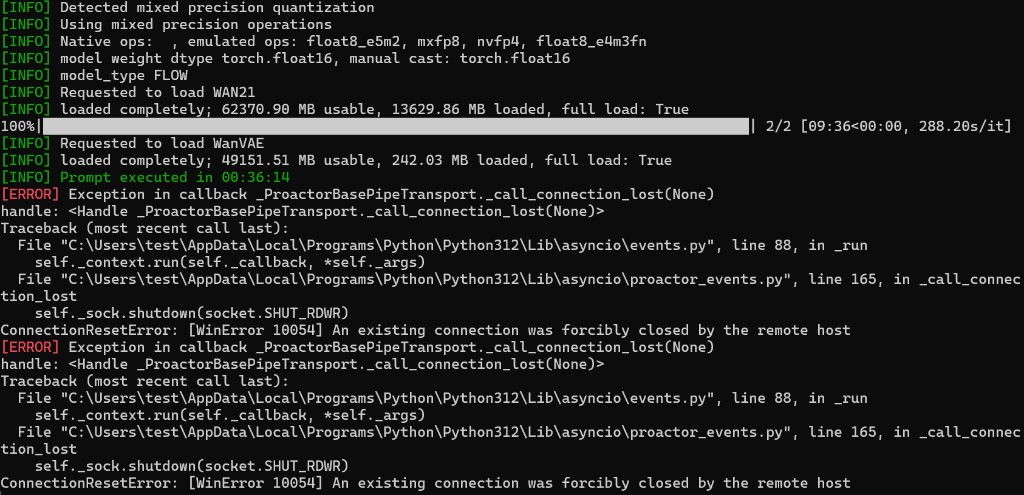

WAN 2.2 console output and GPU memory usage

Figure 7: WAN 2.2 generation — the console shows the dual-expert sampling, and Windows Task Manager shows dedicated GPU memory peaking around 42 GB, well within the unified-memory pool.

Tuning Knobs#

Two settings made the biggest practical difference in our testing:

Attention backend (AOTriton). On this setup, PyTorch automatically used the AOTriton-backed efficient-attention path on the Radeon™ 8060S (visible in the console as Using AOTriton backend for Efficient Attention). This is what kept first-run warm-up to seconds rather than the long kernel-compile some AMD diffusion setups encounter.
BIOS unified-memory allocation. The share of unified memory addressable by the integrated GPU is set in the system BIOS. On this system it reported about 94 GB available to the GPU, which is what allows full-precision Flux.1-dev and WAN 2.2’s dual experts to load without quantization or offloading. If large workflows fall back to CPU or fail to load, raising this allocation is the first thing to check.

Common Issues and Solutions#

torch.cuda.is_available() returns False — the most common cause is that a CUDA build of PyTorch from PyPI replaced the ROCm build. Reinstall with -f https://repo.radeon.com/rocm/windows/rocm-rel-7.2.1/ "torch==2.9.1+rocm7.2.1".
No matching distribution found for rocm==7.2.1 — you used direct wheel URLs instead of -f. Use the find-links form shown above so pip can resolve the rocm meta-package.
Python 3.13 install fails — the wheels are cp312 only; use Python 3.12.
ComfyUI replaces your torch build — install ComfyUI requirements with the constraints file shown above.
Built-in model downloader does nothing — it can fail silently and place files in the wrong folder. Download model files manually (for example with curl.exe -L -C -) into the correct models\ subfolder. WAN 2.2, for instance, splits across models\diffusion_models, models\loras, models\text_encoders, and models\vae.
WinError 10054 after a long run — a harmless browser/websocket disconnect printed after very long generations (for example a multi-minute video). The output is already saved; just refresh the browser.
“Prompt has no outputs” — the loaded workflow has no output node. Connect a Save Video (or Save Image) node to the workflow’s output, then save your edited workflow so it persists across restarts.

Recommended Configurations#

Use Case	Workflow	Notes
Fast iteration	SDXL	Highest iteration speed among the workflows tested
High-quality stills	Flux.1-dev (full precision)	~78 s/image; full-precision weights need the unified-memory headroom (peaks ~34 GB)
Short-form video	WAN 2.2 (dual 14B + 4-step LoRA)	Peaks around 42 GB — needs the unified-memory headroom

Summary#

In this blog you set up ComfyUI natively on Windows on an AMD Ryzen™ AI Max+ processor — installing AMD ROCm™ 7.2.1 and a matching PyTorch build entirely through pip, with no WSL — and ran three workflows on the integrated AMD Radeon™ 8060S GPU: SDXL image generation, full-precision Flux.1-dev, and WAN 2.2 text-to-video. A single integrated GPU, backed by a large unified-memory pool, ran a full SDXL workflow in roughly 18 seconds, full-precision Flux.1-dev in about 78 seconds per image (peaking ~34 GB), and a 28 GB dual-expert WAN 2.2 video model end to end (peaking ~42 GB).

Key takeaways:

Native Windows ROCm works without WSL. The entire AMD ROCm™ 7.2.1 and PyTorch stack installs through pip.
Unified memory removes the VRAM ceiling. With about 94 GB addressable by the integrated GPU, workflows that peak at 34–42 GB — full-precision Flux.1-dev and WAN 2.2’s dual 14B experts — run on a single integrated GPU, which a typical 8–24 GB discrete card cannot do without quantization or offloading.
Performance is practical for local creative work. SDXL runs around 1.48 it/s in steady state, Flux.1-dev produces a 1024×1024 image in about 78 seconds, and short-form video completes end to end — all on the same quiet desktop system.

We are continuing to explore on-device generative AI on AMD Ryzen™ AI Max+ processors. Stay tuned for future posts from our team. In the meantime, download ComfyUI and try these workflows on your own AMD Ryzen™ AI Max+ processor-based system.

Test environment disclosure#

All benchmarks were collected on an AMD Ryzen™ AI Max+ 395 system with 128 GB unified memory (approximately 94 GB allocated to the GPU), running Windows 11 Pro (24H2), AMD Software: Adrenalin Edition 32.0.31019, AMD ROCm™ 7.2.1, Python 3.12, and PyTorch 2.9.1+rocm7.2.1. Benchmarks were collected using SDXL at 1024×1024 with 25 steps and the Euler sampler. Performance may vary based on system configuration, memory allocation, drivers, operating system, and software versions.
